INSTALLATION

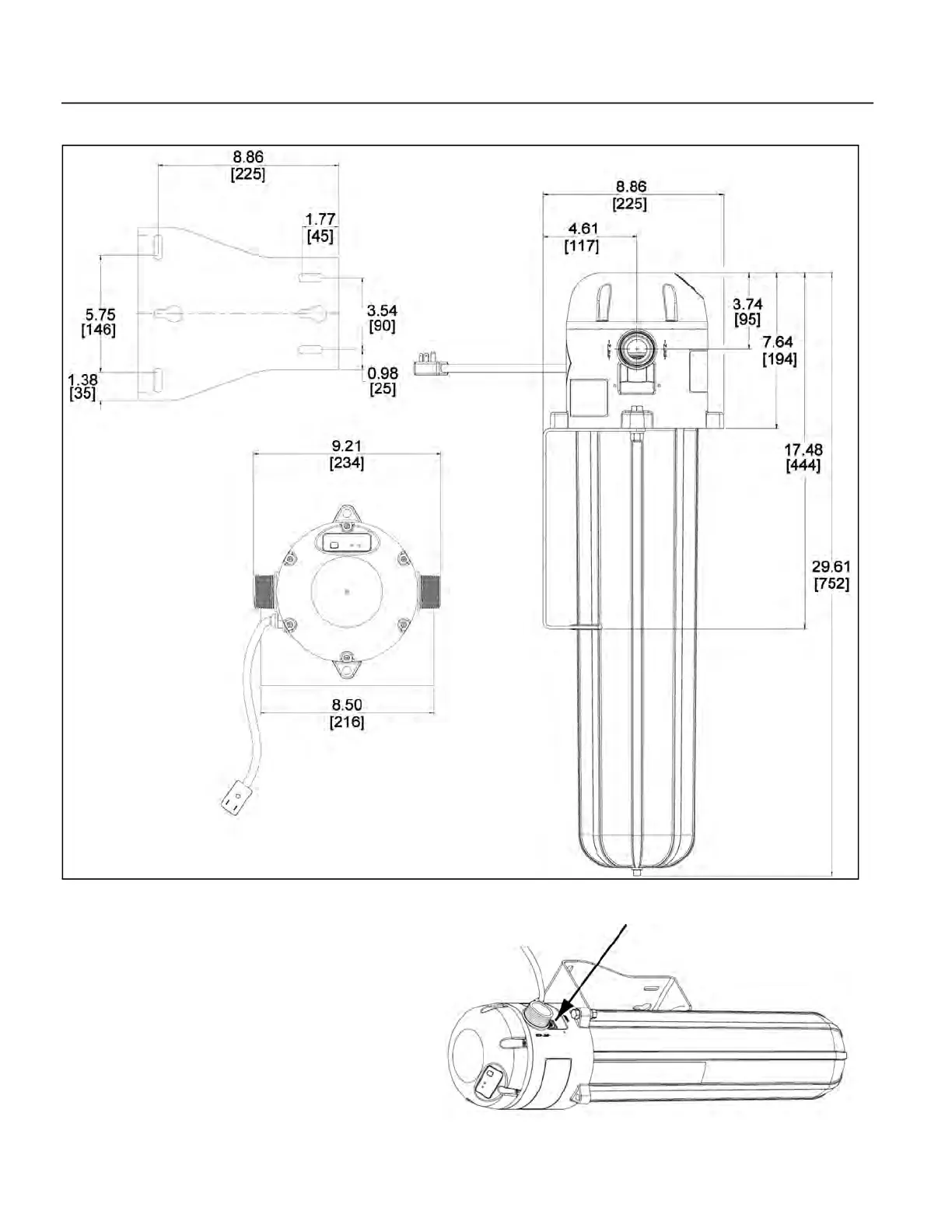

Inline 400 Mounting
8
Inline 400 Mounting
Orientation of the Inline 400
It is preferred (for ease of priming) to install the Inline 400
unit in a VERTICAL orientation.
However, the unit can be installed in the HORIZONTAL
position as long as the air-bleed valve is facing upwards
(arrow) and the pump is laying horizontally. Never allow
the pump to hang unsupported from a horizontal surface;
never use the plumbing for pump support. Always use the
mounting bracket for pump support.
