Program Code Descriptions
When a valid three digit program code has been entered a program value or option
will show in the display. The M1 and M2 sensors are used change the data.
The M1 sensor will select the digit that is to be changed. The digit will flash.
The M2 sensor will change the digit that is flashing or change the option choice.
The M3 sensor will exit the program access mode.

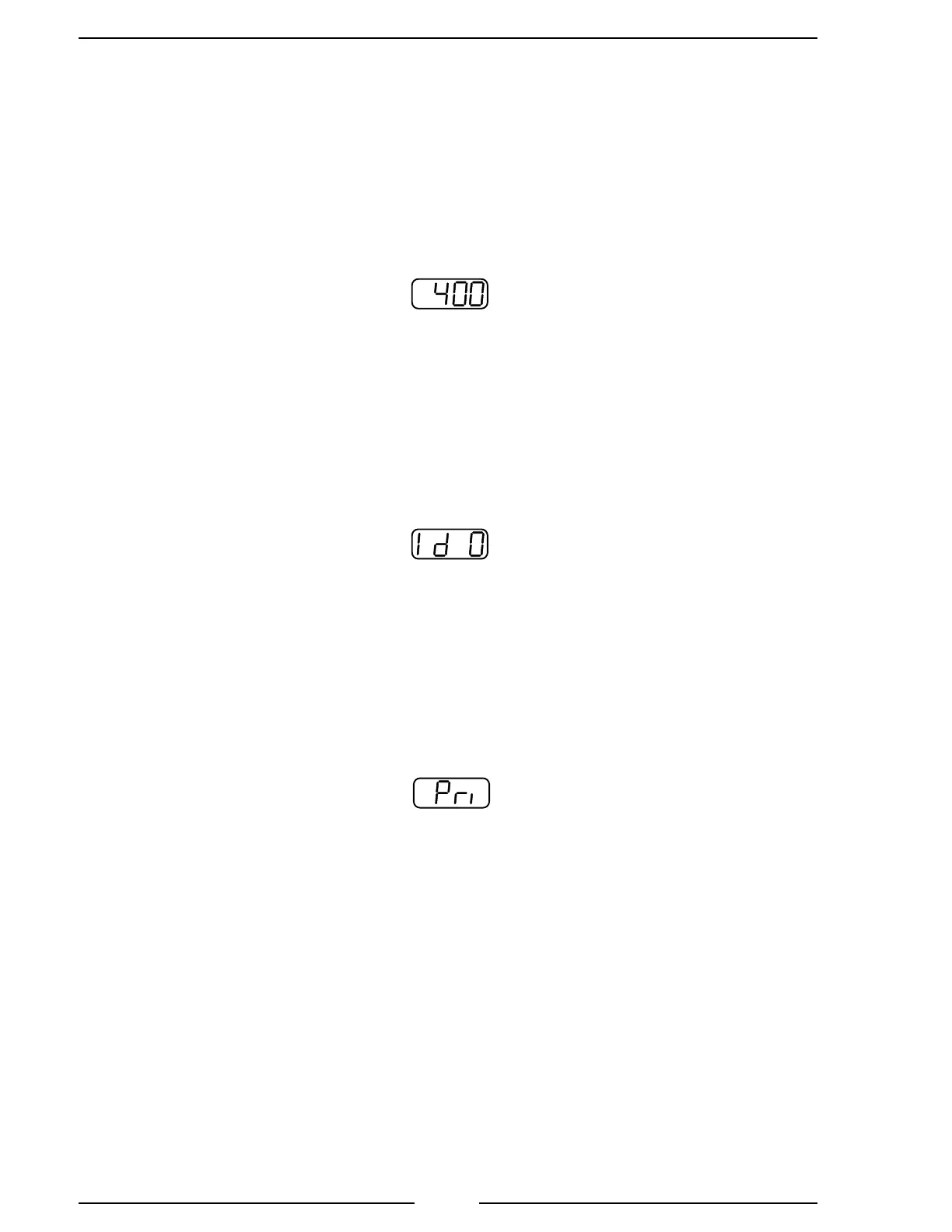

Code 311 Flow Rate Increment
Factory programmed value:
Options: 0000 to 9999
This code will allow a program value to be set where the digital display will change
from incrementing by 1 to incrementing by 10. The display will increment by 1 at
flow rates below the program setting and by 10 at flow rates above the program setting.
Settings of this code will not impact flow warnings, flow cutoff settings, or flow rate
display when in the calibration program.
Code 312 ID Number
Factory programmed value:
Options: 0 to 99
This code will allow the datalink identification (ID) number for the display module
to be set. The display can be programmed with an ID number between 0 and 9. When
a display module is programmed with Id 0 it will not output information on to the
datalink. The ID number for a remote display must match the ID number of the primary
display. The ID number for a summing or accumulator display is not used.
Code 313 Module Function
Factory programmed value:
Options: Pri, SLA
This code will allow the datalink function of the display module to be set. Two
program choices are available for the FP4000. Pri (primary) sets the module as a primary
display. A display module must be programmed as a primary to interpet information
from a pressure transducer and a flow sensor. SLA (slaved) sets the module as a remote
display.
Code 315 High Flow Warning
Factory programmed value:0 (High flow warning is disabled.)
Options: 0001 to 9999
This code will allow the high flow warning to be set. When the flow rate is above
the high flow warning program value, the flow display will alternately flash between
the flow rate and -HI-.
