Freeform F2000 - Step 7: Upright Tube Covers and Console Fixation; Step 8: Motor Top Cover Fixation; Step 9: Motor Side Cover Fixation

7

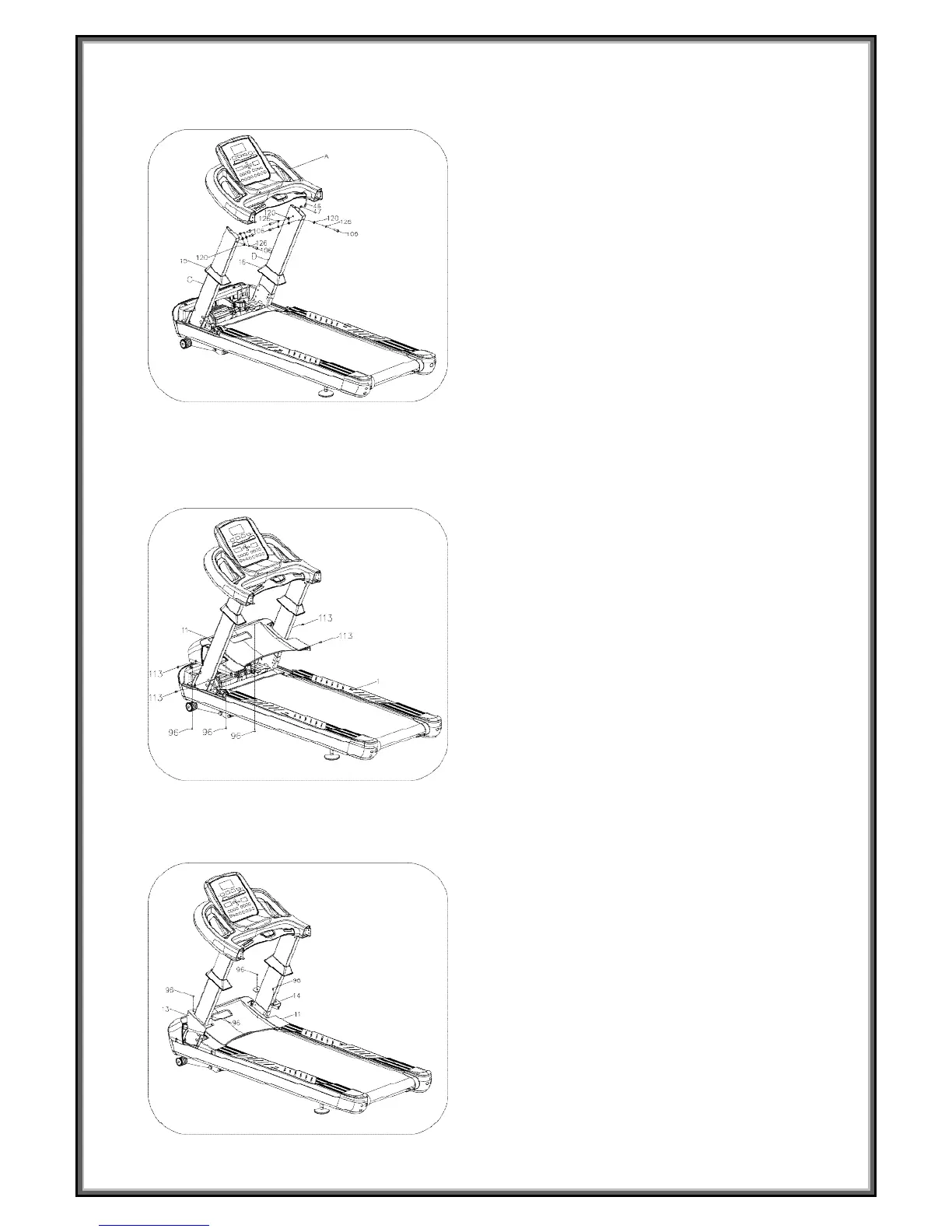

Step 7:
Step 8:
Step 9:
1. Insert left and right upright tube
covers (15, 16) into left and right
upright tubes (C, D).
2. Fix the console (A) to the left and
right upright tubes (C, D) with bolt
M10*20 (106), spring washer (126) and
flat washer (120) by using 8#Allen
wrench (79).
Notice: Make sure the top signal wire
(46) and middle signal wire(47) are well
connect before assemble.
1. Fix motor top cover (11) to the main
frame (1) with bolt M6*12 (113) by using
5#Allen wrench (80).
2. Fix motor top cover (11) to the main
frame (1) with screw ST4.2*12 (96)by
using Phillips screwdriver (81).
1. Fix the left and right motor side covers
(13、14) to the motor top cover (11) with
screw ST4.2*12 (96) by using Phillips
screwdriver (81).
