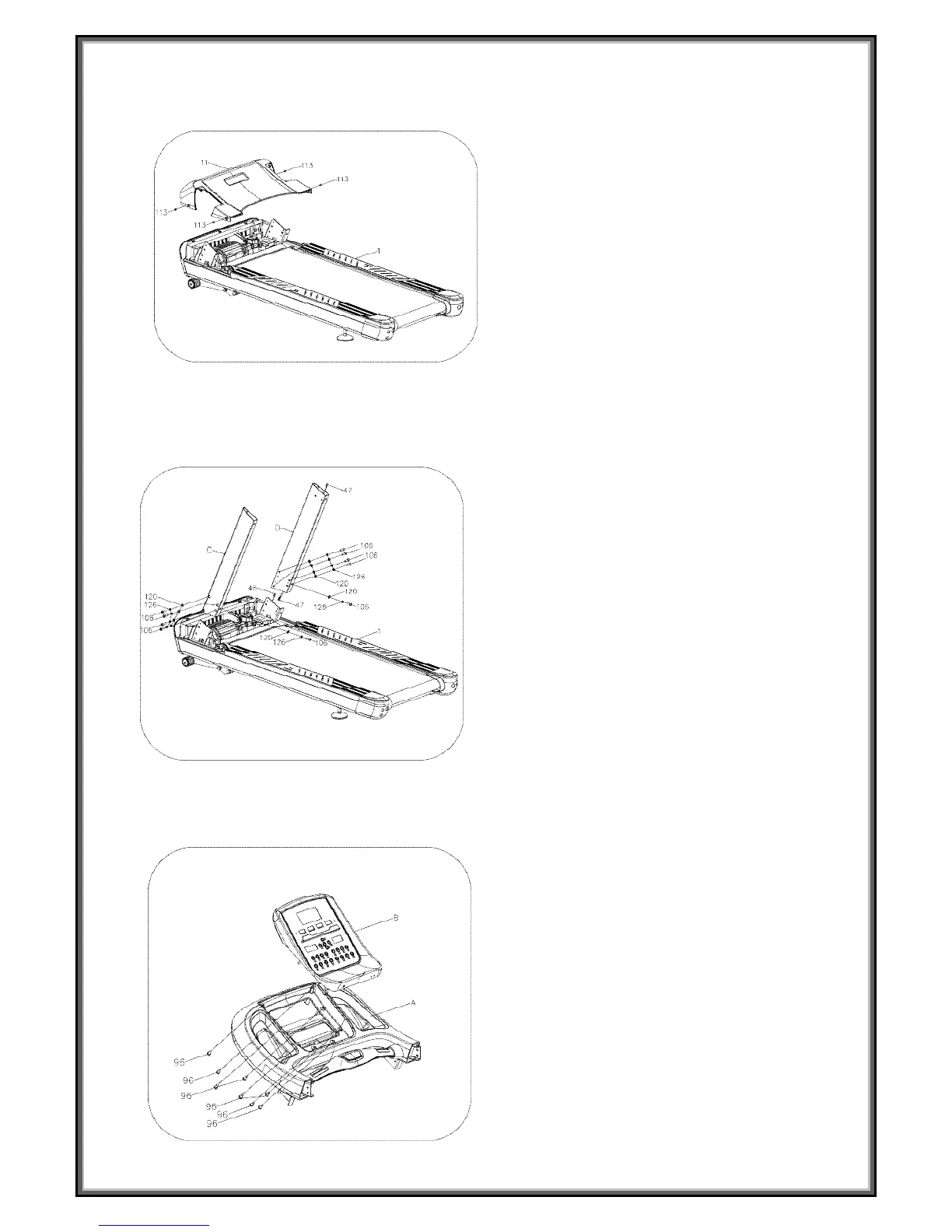

Freeform F2000 - Step 4: Motor Top Cover Removal; Step 5: Upright Tube Installation; Step 6: Console Assembly

6
Step 4:
Step 5:
Step 6：
1. Fix the console panel (B) to the
console top cover (A) with screw
ST4.2*12 (96) by using the
Phillips screwdriver (81).
Notice: Make sure the wire of
console panel (B) and the wire of
console top cover (A) are well
connected as per the color
before assemble.
1. Disassemble bolt M6*12 (113) by
using 5#Allen wrench (80), remove
the motor top cover (11).
1.Fix the left and right upright tubes
(C, D) to the main frame (1) with bolt
M10*20 (106),spring washer (126)
and flat washer (120) by using
8#Allen wrench (79).
Notice: Make sure the middle signal
wire (47) and lower signal wire (48)
are well connected before assemble.
