Freeform F60 - Page 5

Notice: Do not connect power before assembly completion

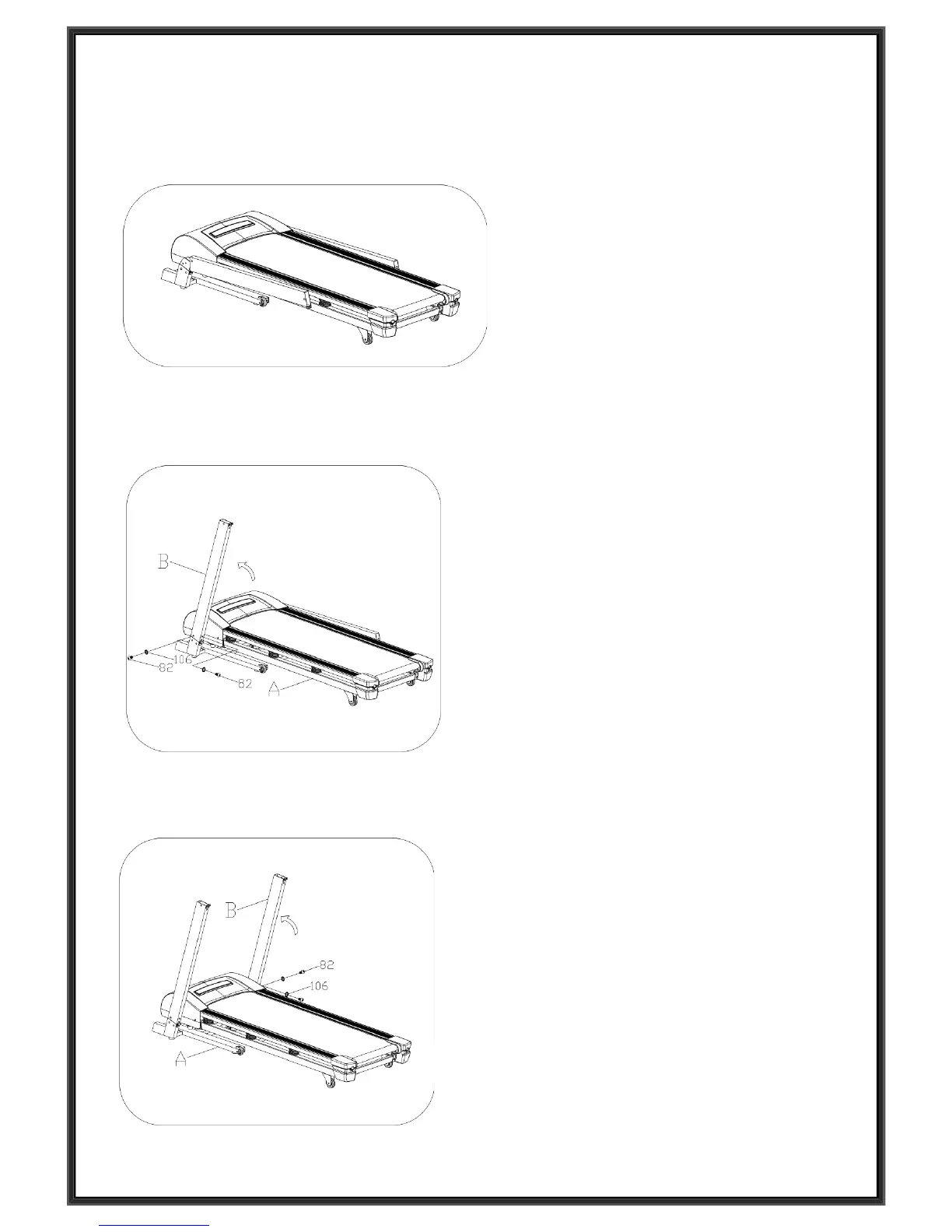

Step 1:
Step 2:
Step 3:
Open the carton, take out the above
spare parts, and put the Main Frame on
the level ground.
Lift up the left Upright tube B with the
arrow direction.
Fix the upright tube B to the main frame
A with Bolt M8*15(82) and flat
washer （ 106 ） by using 5# Allen
wrench(2).
Notice: Support the Upright Tube with
hand to avoid falling down.
Lift up the right upright tube B with the
arrow direction.
Fix the upright tube B to the main frame
A with Bolt M8*15(82) and flat
washer （ 106 ） by using 5# Allen
wrench(2).
Notice: Support the Upright Tube with
hand to avoid falling down.
