Freemotion XTr - Page 9

9

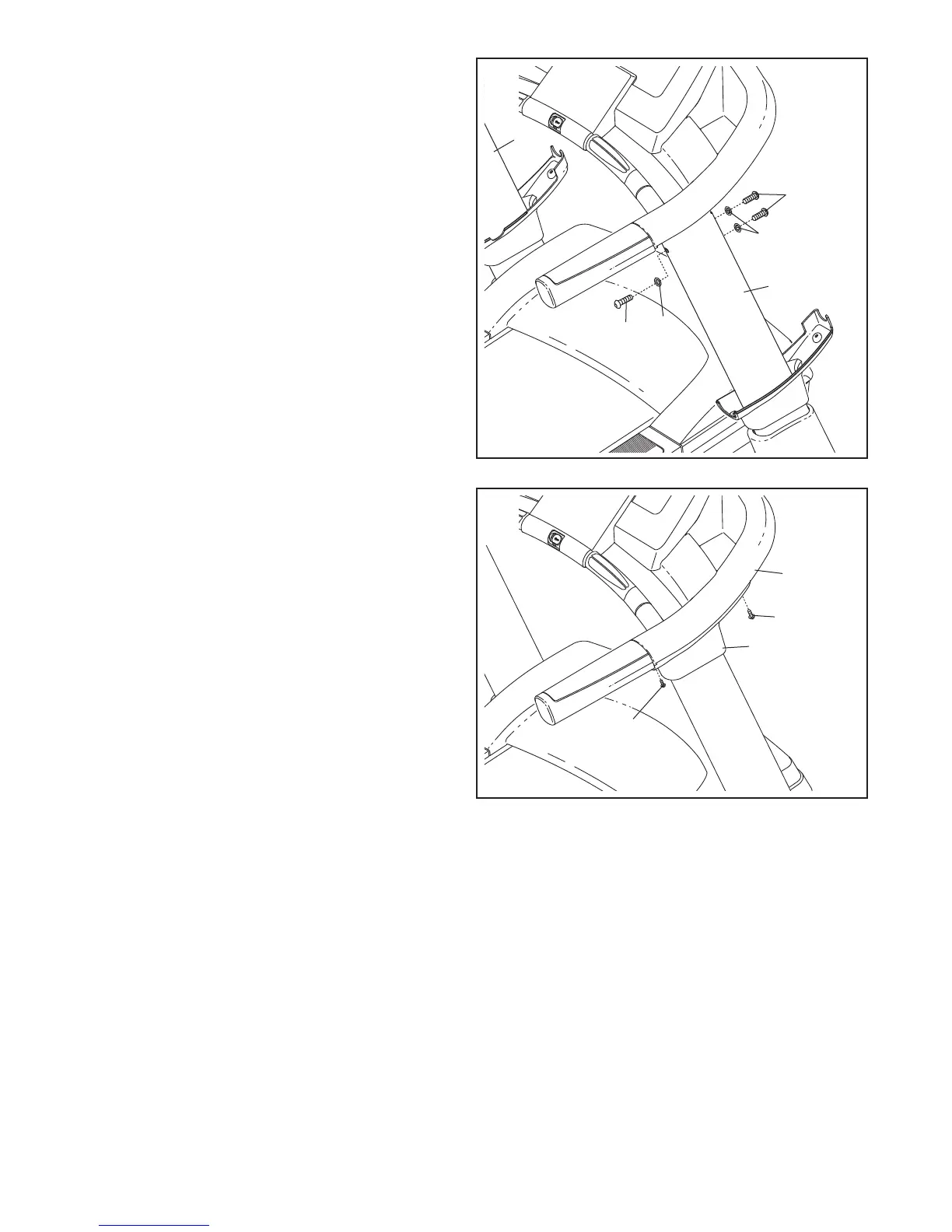

6. Partially tighten three 3/8" x 1 1/4" Patch Bolts
(2) with three 3/8" Star Washers (6) into the
Right Upright (92); do not fully tighten the
P
atch Bolts yet.
R
epeat this step with the Left Upright (91).
Then, firmly tighten all six 3/8" x 1 1/4" Patch
Bolts (2).
91
92
2
2
6
6
6
7. Slide the Right Upright Sleeve (90) up against
the console assembly. Attach the Right Upright
Sleeve with two #8 x 3/4" Tek Screws (24).
Attach the Left Upright Sleeve (not shown) to
the console assembly in the same way.
24
90
24
7
Console
Assembly
