To Tilt the Cab
WARNING
Do not release the cab until the transmission has
been put into neutral, the ignition turned off, and
the parking brake set. Failure to observe these pre-
cautions could result in serious personal injury.
WARNING
Do not allow loose clothing to get near moving en-
gine parts. To do so could result in serious per-
sonal injury.
CAUTION
Ensure the shift lever will clear the floor opening
when the cab is tilted to prevent damage to the shift
lever.
Do not raise the cab until all loose items inside the
cab are removed or fastened down and the doors
are closed. If the cab is equipped with exterior air
lines, be sure the air lines will be clear of the body
lock.
1. Apply the parking brakes and chock the tires.
2. The handle for the cab lock control is located on
the lower front face of the driver’s seat (Fig. 2.14).
Remove the handle from the housing.
3. Insert the cab lock handle in the lock control lo-
cated on the passenger’s side of the rear cab panel
(Fig. 2.15). Push the safety hook knob inward, then
rotate the handle counterclockwise and pull the
handle outward. The handle will still be engaged.
f541760
1
2
3
4
09/09/97

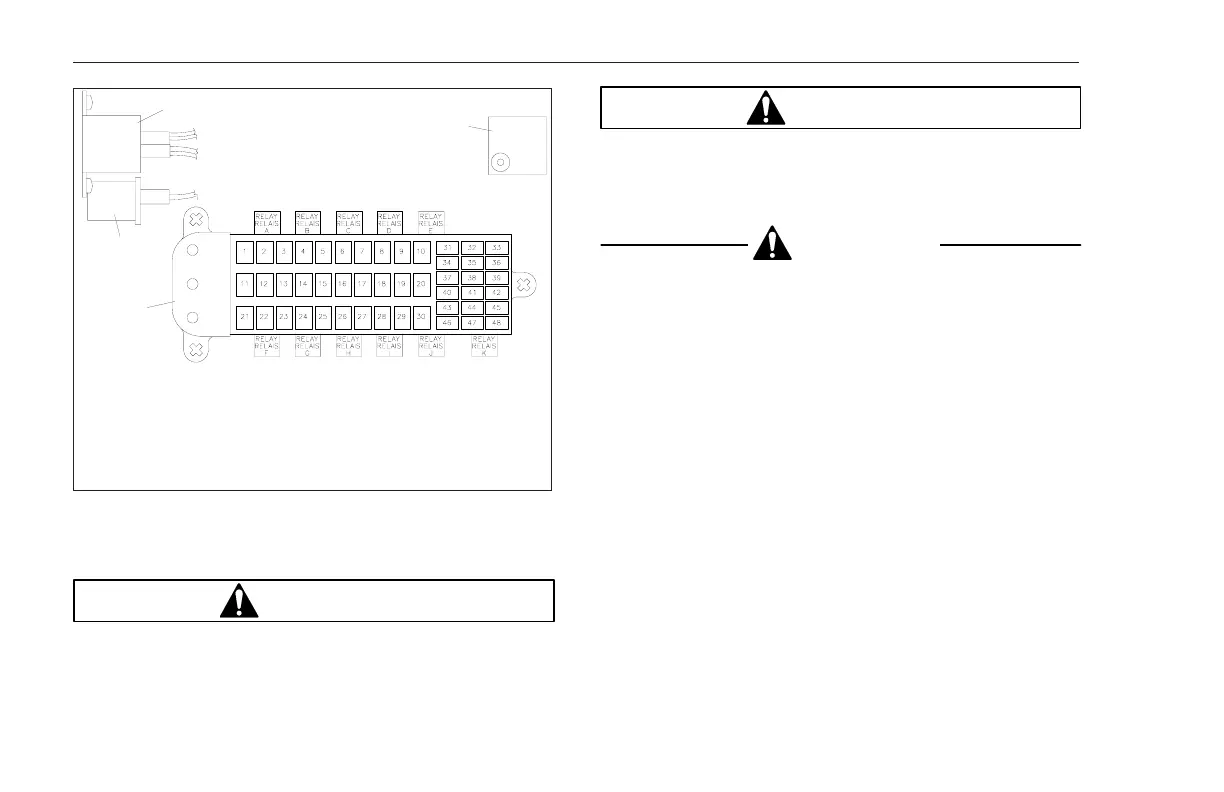

1. Signal Flasher (located at upper left of fuse panel)
2. Warning Chime (located at right side of fuse panel)
3. Warning Buzzer (located at lower left of fuse panel)
4. Fuse/Relay/Circuit Breaker Panel
Fig. 2.13, Fuse/Relay/Circuit Breaker Identification
Vehicle Access and Features
2.13
