4. Lift the rear part of the cab and let it tip up to the
first position.
CAUTION
To avoid damage to the handle, do not put pressure
on the lock handle, or use the handle to lift the cab.
5. To tilt the cab to the second position, remove the
lower limiting rod triangular support bolt. Place the
support bolt in the opening in the arm connection
near the central pin (Fig. 2.16). The cab can now
be pushed forward to the second position.
To Lower the Cab
1. Make sure the lock indicator is retracted to permit
correct cab locking, then push the cab back to the
first tilting position.
09/09/97
f910245

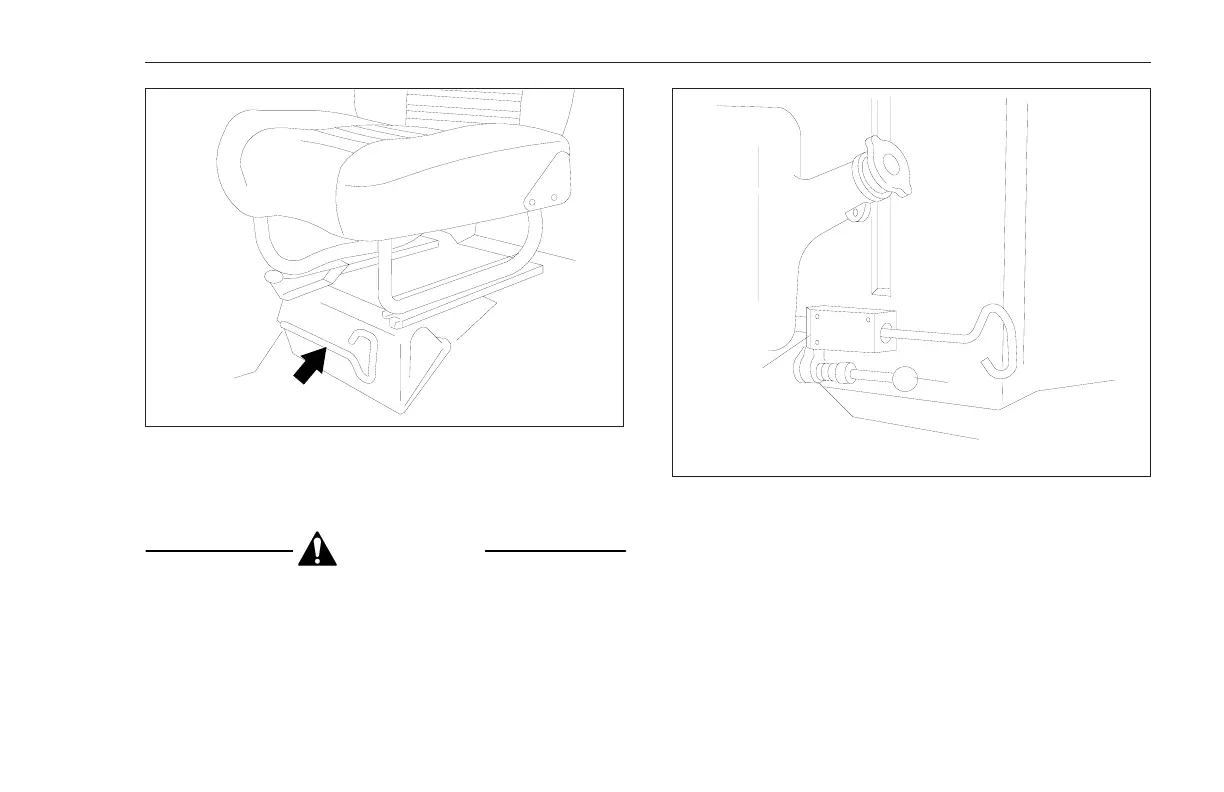

Fig. 2.14, Cab Lock Handle
f310618
1
2
09/08/97
1. Cab Lock Control 2. Safety Hook Knob
Fig. 2.15, Back of Cab
Vehicle Access and Features
2.14
