1. Clean the oil level sight glass. See Fig. 6.
2. Check the fluid level in the sight glass. When the
fluid level is at or above 3/4 of the sight glass,
then it is at or above the minimum fill level. See
Fig. 7.
3. If the fluid level is low, check the transmission for
leaks, and correct as needed.
4. If needed, add the recommended fluid, until it is
at or above 3/4 of the sight glass. See
Table 3
for approved transmission lubricants.
For more information and a complete listing of
approved lubricants, refer to the Eaton website,
www.roadranger.com.
26–06 Eaton Fuller Manual
Transmission Air Filter/
Regulator Check,
Cleaning, or
Replacement
1. Apply the parking brakes, and chock the rear
tires. Drain the air reservoirs.
WARNING
Drain the air supply; if the air supply is not
drained before the air filter/regulator is serviced,
serious injury and component damage could re-
sult.
2. Clean the outside of the air filter/regulator with
cleaning solvent. See
Fig. 8.
02/23/2015 f261460
123
1. Drain Plug
2. Fill Plug
3. Sight Glass

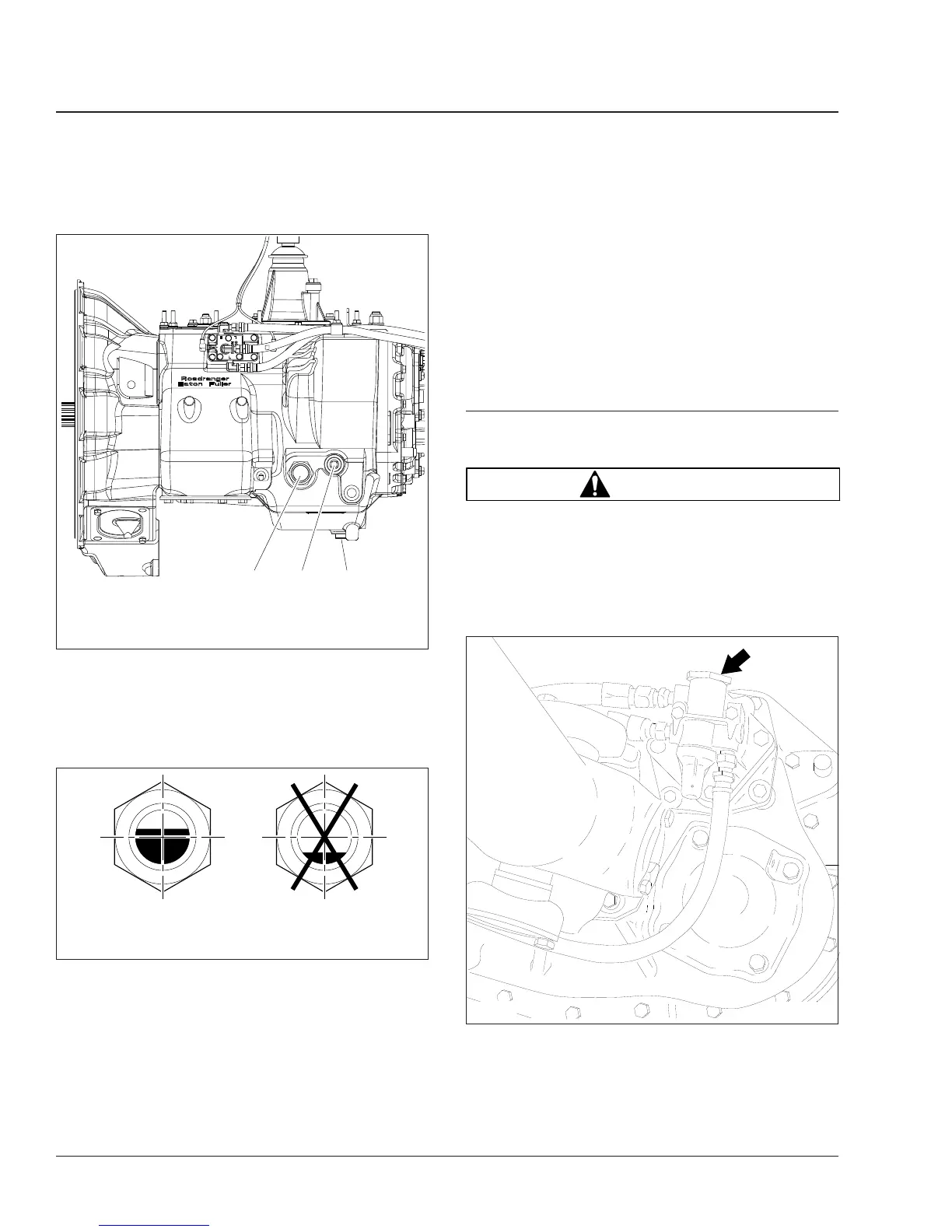

Fig. 6, Eaton Fuller Transmission With a Sight Glass
02/23/2015 f261461
A B
A. Full B. Low
Fig. 7, Transmission Fluid Level Sight Glass
f260037a
05/27/93
Fig. 8, Air Filter/Regulator Location
Transmission26
Cascadia Maintenance Manual, March 201626/6
