equipment manufacturer. Freightliner dealers must
have proof of this calibration history.
1. Apply the parking brakes and chock the rear
tires.
2. Raise the front of the vehicle until the tires clear
the ground. Place safety stands under the axle.
3. Using spray paint or a piece of chalk, mark the
entire center rib of each front tire.
4. Place a scribe or pointed instrument against the
marked center rib of each tire, and turn the tires.
The scribe must be held firmly in place so that a
single straight line is scribed all the way around
each front tire.
5. Place a turn-plate or turntable under both front
tires. Remove the safety stands and lower the
vehicle. Remove the lock-pins from the gauges;
make sure the tires are exactly straight ahead.
On vehicles with rack and pinion steering, center
the rack using the pointers on the front of the
input shaft housing. See
Fig. 5.
NOTE: If turn-plates or turntables are not avail-
able, lower the vehicle. Remove the chocks
from the rear tires and release the parking
brakes. Move the vehicle backward, then for-
ward about six feet (two meters).
6. Place a trammel bar at the rear of the front tires;
locate the trammel pointers at spindle height,
and adjust the pointers to line up with the scribe
lines on the center ribs of the front tires. See
Fig. 6. Lock in place. Check that the scale is set
on zero.
7. Place the trammel bar at the front of the tires
(see
Fig. 7) and adjust the scale end so that the
pointers line up with the scribe lines. See Fig. 8.
8. Read the toe-in from the scale, and compare it to
the toe-in specification in Group 33 of the Cas-
cadia
™
Workshop Manual. If corrections are
needed, refer to Group 33 of the Cascadia
™
Workshop Manual for instructions on adjusting
the toe-in.

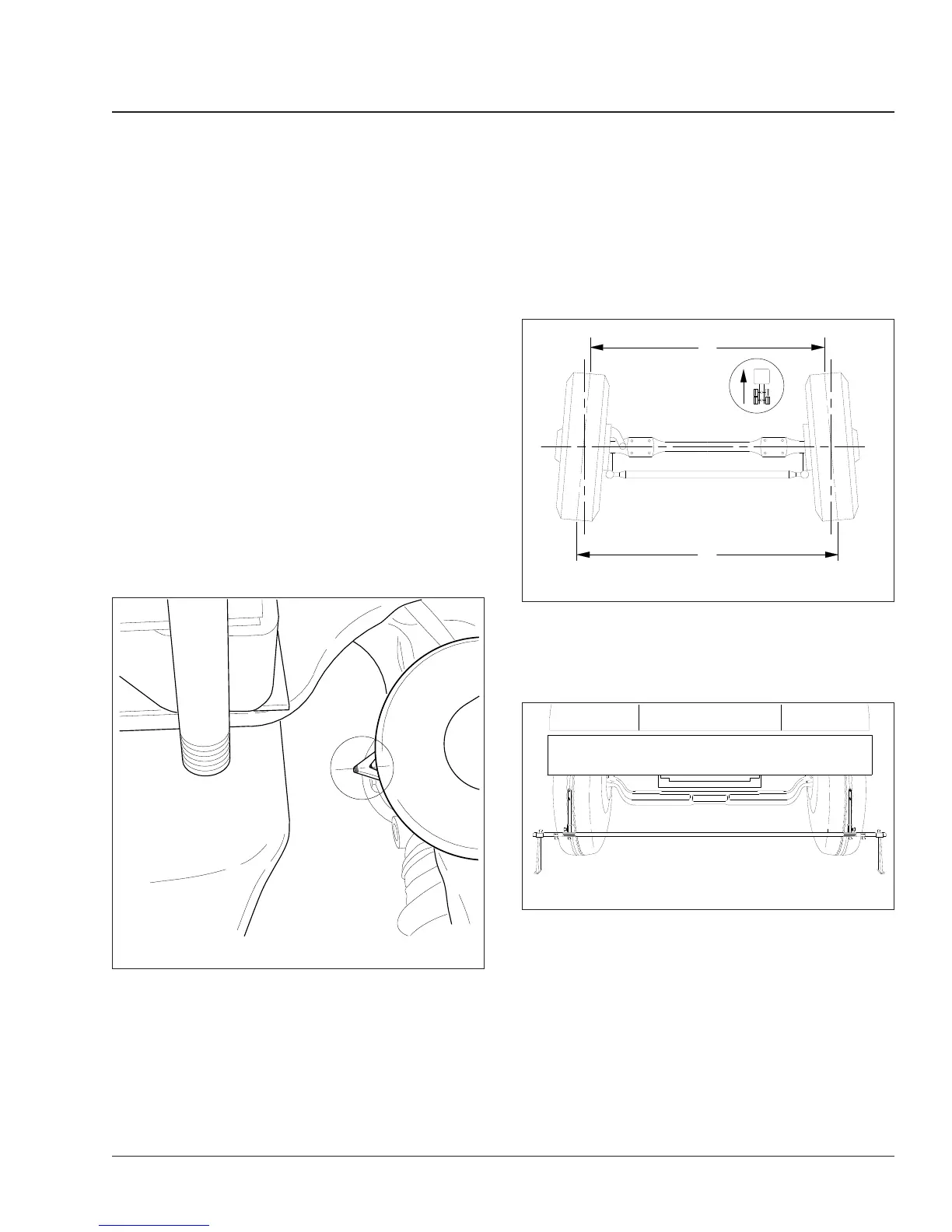

04/26/2007 f330239
Align the pointers to center the steering.
Fig. 5, Centering the Rack and Pinion Steering Gear
A
B
f330082a
08/29/94
NOTE: B minus A equals toe-in.
Fig. 6, Wheel Toe-In (overhead view)
f330014a
08/30/94
Fig. 7, Trammel Bar Positioning
Front Axle 33
Cascadia Maintenance Manual, August 2015 33/3
