freightliner Cascadia CA113SLP - Suspension U-Bolt Torque Check

for adjustment instructions. If the distance is
within the acceptable range, apply the parking
brakes.
32–02 Suspension U-Bolt
Torque Check
CAUTION
Failure to retorque the U-bolt nuts could result in
spring breakage and abnormal tire wear.

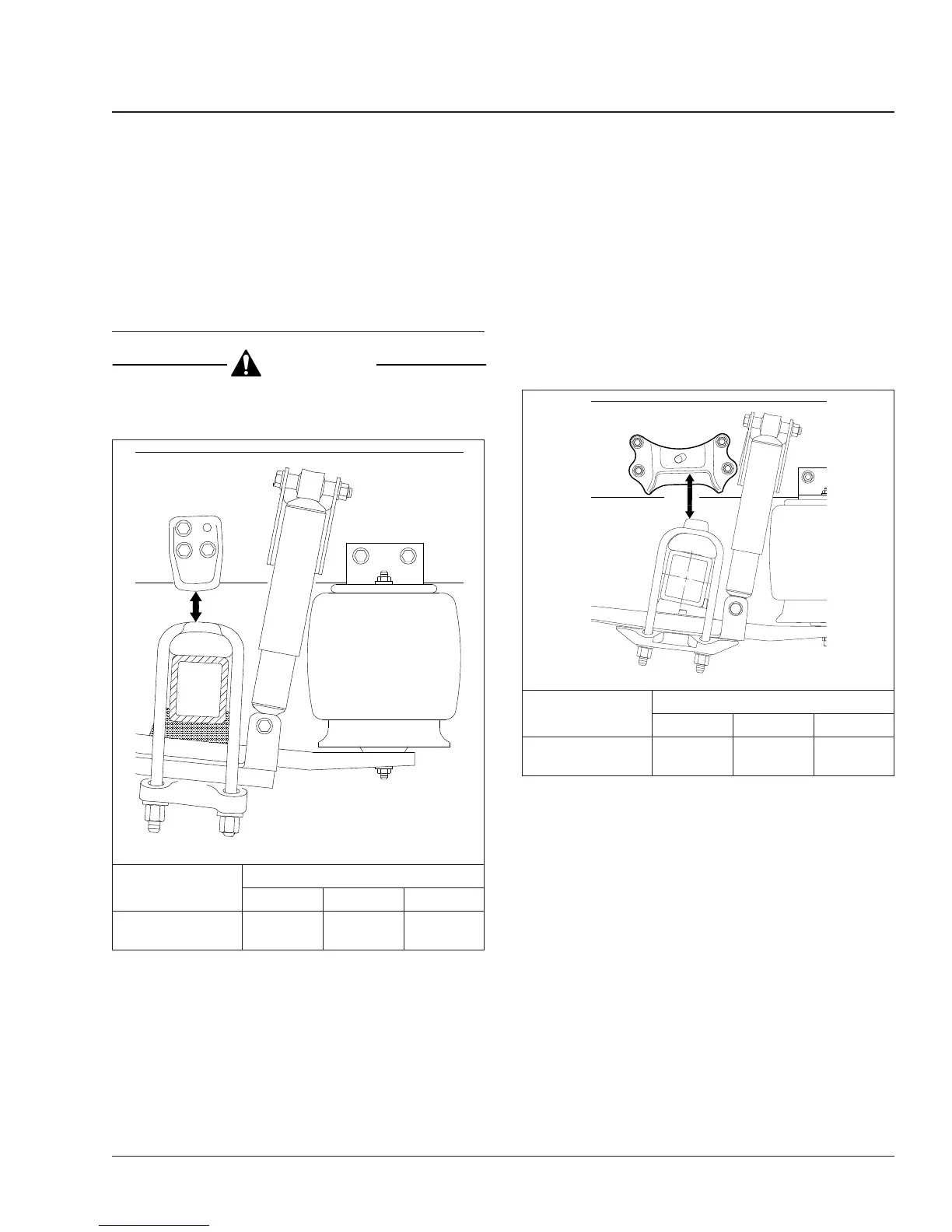

A
f320838b12/20/2005
Measure Point
Suspension Height Measurement
Min Target Max
A = Measure Here
2-3/8 inch
(60 mm)
2-5/8 inch
(67 mm)
2-7/8 inch
(73 mm)
Table 1, Suspension Ride-Height Measurement, Dual-
Leaf Spring, 20k/40k High Ride
1. Park the vehicle on a level surface and apply the
parking brakes. Chock the tires.
2. Check the U-bolt torque. See
Table 6 for U-bolt
torque specifications. Tighten in a diagonal pat-
tern as shown in
Fig. 3. Set a click-type torque
wrench to the mid-point torque value for the fas-
tener being checked. Turn the wrench in a clock-
wise motion (looking up) until the torque wrench
clicks, then release pressure on the torque
wrench, and turn the wrench again until it clicks.
If the nut turns on the second application, the
bolt is stretching and must be replaced. See
Group 32 of the Cascadia
™
Workshop Manual
for bolt replacement procedures.
f320961a
A
09/24/2009
Measure Point
Suspension Height Measurement
Min Target Max
A = Measure Here
2-3/8 inch
(60 mm)
2-5/8 inch
(67 mm)
2-7/8 inch
(73 mm)
Table 2, Suspension Ride-Height Measurement,
Single-Leaf Spring, 20k/40k, High Ride
Suspension 32
Cascadia Maintenance Manual, August 2015 32/3
