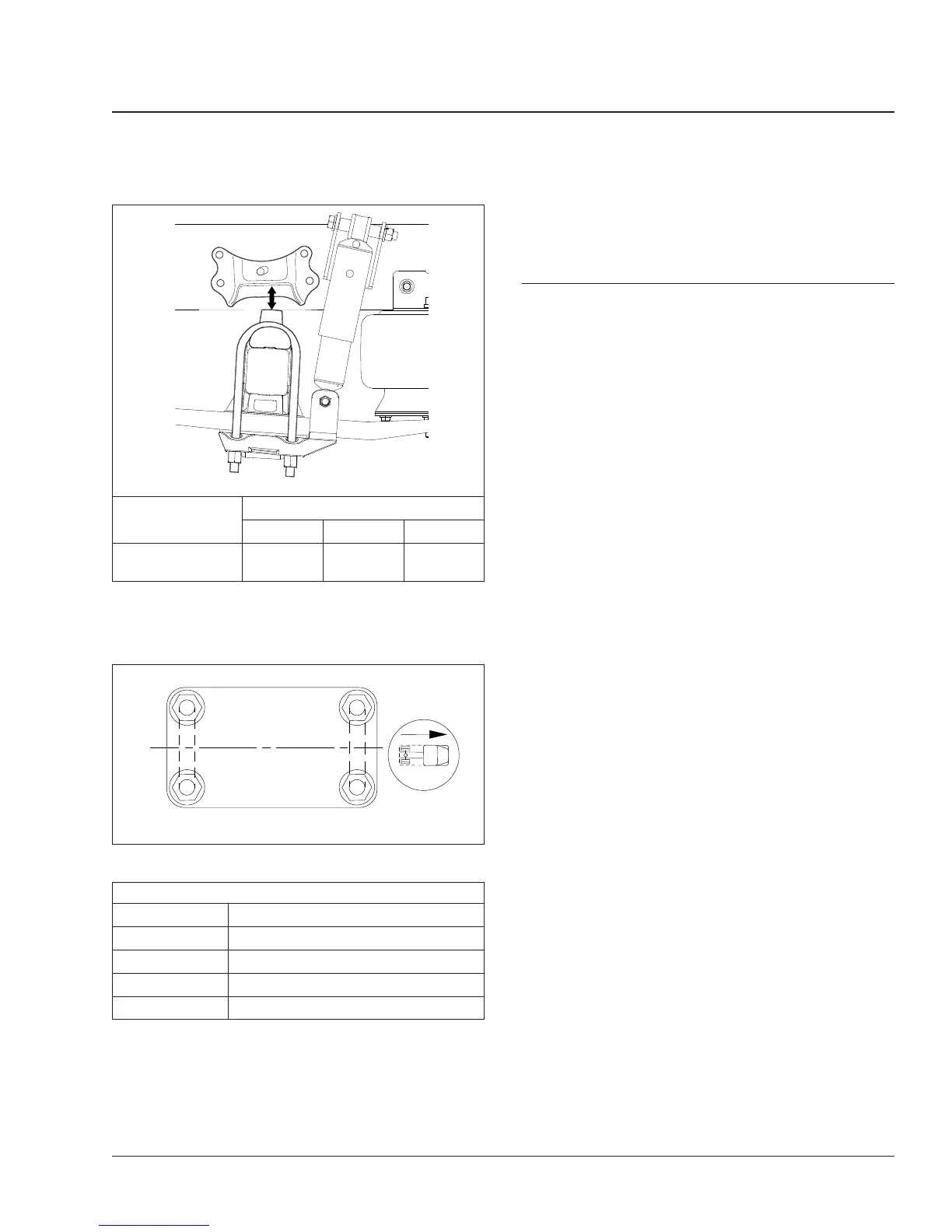

freightliner Cascadia CA113SLP - Lubrication of Front Suspensions with Grease Fittings; Spring U-Bolt High Nut Torque Values; Tightening Pattern for U-Bolt High Nuts

f320962a
A
01/25/2006
Measure Point
Suspension Height Measurement
Min Target Max
A = Measure Here
2-1/8 inch
(54 mm)
2-9/32 inch
(58 mm)
2-5/8 inch
(67 mm)
Table 5, Suspension Ride-Height Measurement,
Single-Leaf Spring, 10k/12k/15k Low and Extra-Low
Ride
Spring U-Bolt High Nut Torque Values
Size Torque: lbf·ft (N·m)
5/8–18 180–230 (245–313)
3/4–16 270–330 (367–449)
7/8–14 420–500 (571–680)
1–14 520–600 (707–816)
Table 6, Spring U-Bolt High Nut Torque Values
32–03 Lubrication of Front
Suspensions with
Grease Fittings
Wipe all dirt away from the grease fittings (if
equipped) on the spring-eye bushings. Apply multi-
purpose chassis grease with a pressurized grease
gun until the old grease is forced out.
03/10/2011
f320783
1
2 3
4
Fig. 3, Tightening Pattern for U-Bolt High Nuts
