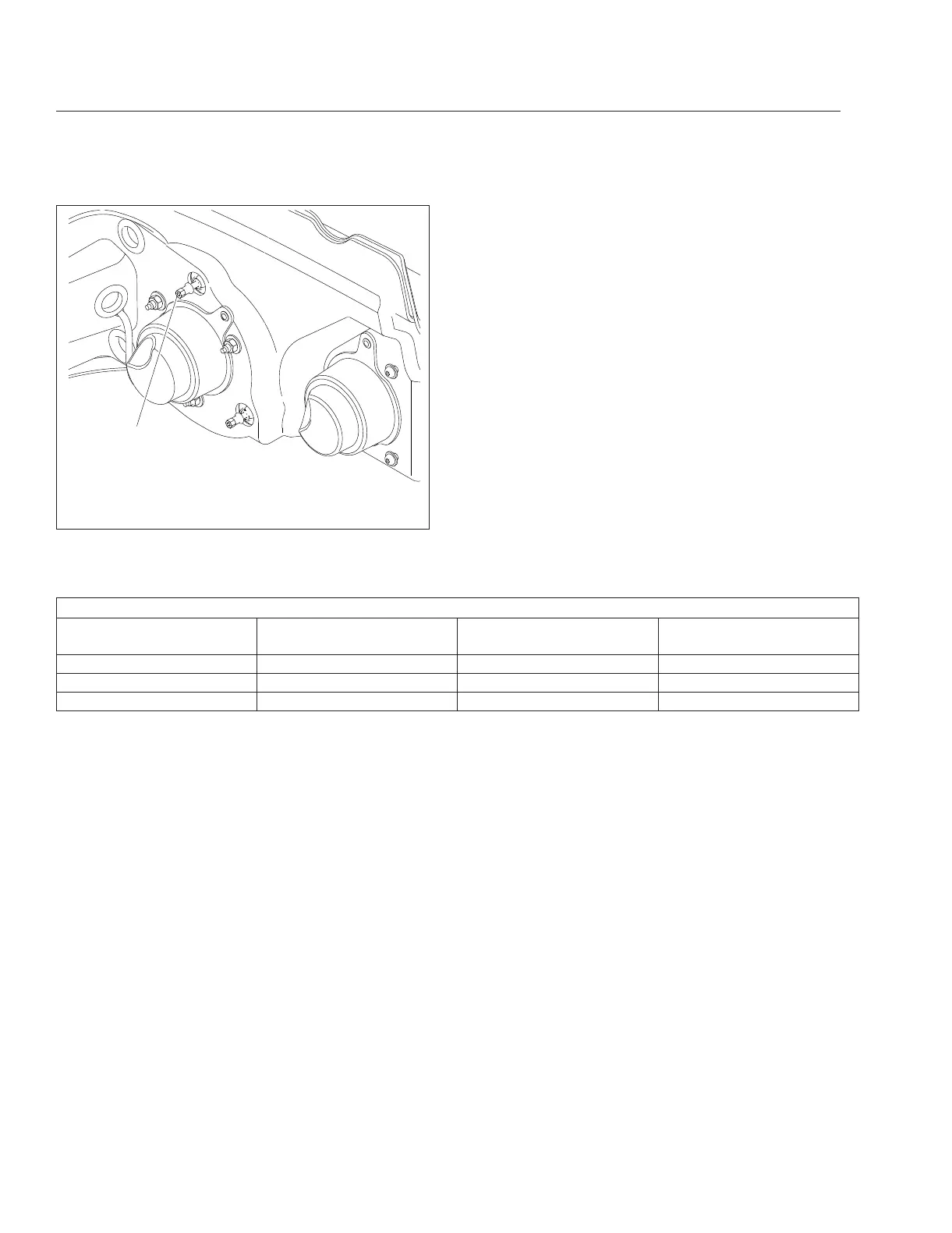

Vertical Low-Beam Headlight Variation Limits
Distance Between Ground
and Headlight: in (mm)
Desired Variation (
Fig. 19.3,
Item 2): in (mm)
Upper Limit (Fig. 19.3, Item
1): in (mm) up
Lower Limit (Fig. 19.3, Item
3): in (mm) down
22–36 (560–900) 0 3.9 (100) 3.9 (100)
36–48 (900–1200) 2 (50) down 2 (50) 6 (150)
48–54 (1200–1400) 2.5 (64) down 1.6 (40) 6.5 (165)
Table 19.1, Vertical Low-Beam Headlight Variation Limits
05/22/2012 f545903
1
1. Headlight Adjusting Screw
Fig. 19.4, Headlight Adjusting
Headlight Aiming
19.3
