NOTE: If the memory in the data logger is full,
the screen will display Memory Full Data Not
Recorded. If the data logger is not connected
or not responding, the screen will display Data
Recorder Not Responding. If the EVENT but-
ton was pressed within the last two minutes, the
screen will display Still Recording Last Event.
Stationary Screens
The following screens are available when the parking
brake is applied (vehicle is stationary) and no active
fault codes are found. Each set of stationary screens
has a title screen followed by one or more data
screens.
To move forward and backward through these
screens, use the three arrow buttons on the keypad.
See
Fig. 4.19, Fig. 4.20, and Fig. 4.21 for stationary
screen navigation.
i.
Trip Information: miles, hours
ii.
Fuel information: fuel used, average MPG
iii.
Engine information: engine miles and hours, en-
gine gallons and PTO gallons
iv.
Diagnostic information: active faults, historical
dash faults
v.
Setup Information: target MPG, brightness, lan-
guage, units of measurement
vi.
Vehicle information: datalink activity/status, ICU
part number, software ID number
Overhead Instrument Panel
The optional overhead instrument panel may hold a
citizen’s band (C/B) radio, digital clock, storage
pocket areas for sunglasses and maps, and a locked
glove box.
The underside of the overhead console also holds
the sun visors and the optional dome/reading light
assembly. See
Chapter 5 for more information on
the dome/reading light assembly.
ENG GALLONS 123456.7
PTO GALLONS 123456.7
ENG MILES 1234567.8
ENG HOURS 123456:78
ENGINE
INFORMATION
IDLE HOURS 1234.56
12.3 GAL 1234567 MI
IGNITION
ON ONLY
FASTEN SEATBELTS
1234567 MILES
IDLING
f040325
02/13/96
FIRST SECOND
LAST
See applicable Figure.
LAST
FIRST
PUSH RESET TO
CLEAR DASH FAULTS
123 HIST DASH FAULTS
LAST CLEAR 1234567
ACTIVE FAULTS
1234 or NONE
For each fault, display fault codes and description.
For each fault, display fault codes and description.
R
=RESET (PUSH RESET/SET KEY TWICE)
=SET (PUSH RESET/SET KEY ONCE)
S
R
See applicable Figure for trip and fuel information.
LAST OCCR
FIRST OCCR
LAST OCCR
FIRST OCCR
DIAGNOSTIC
INFORMATION

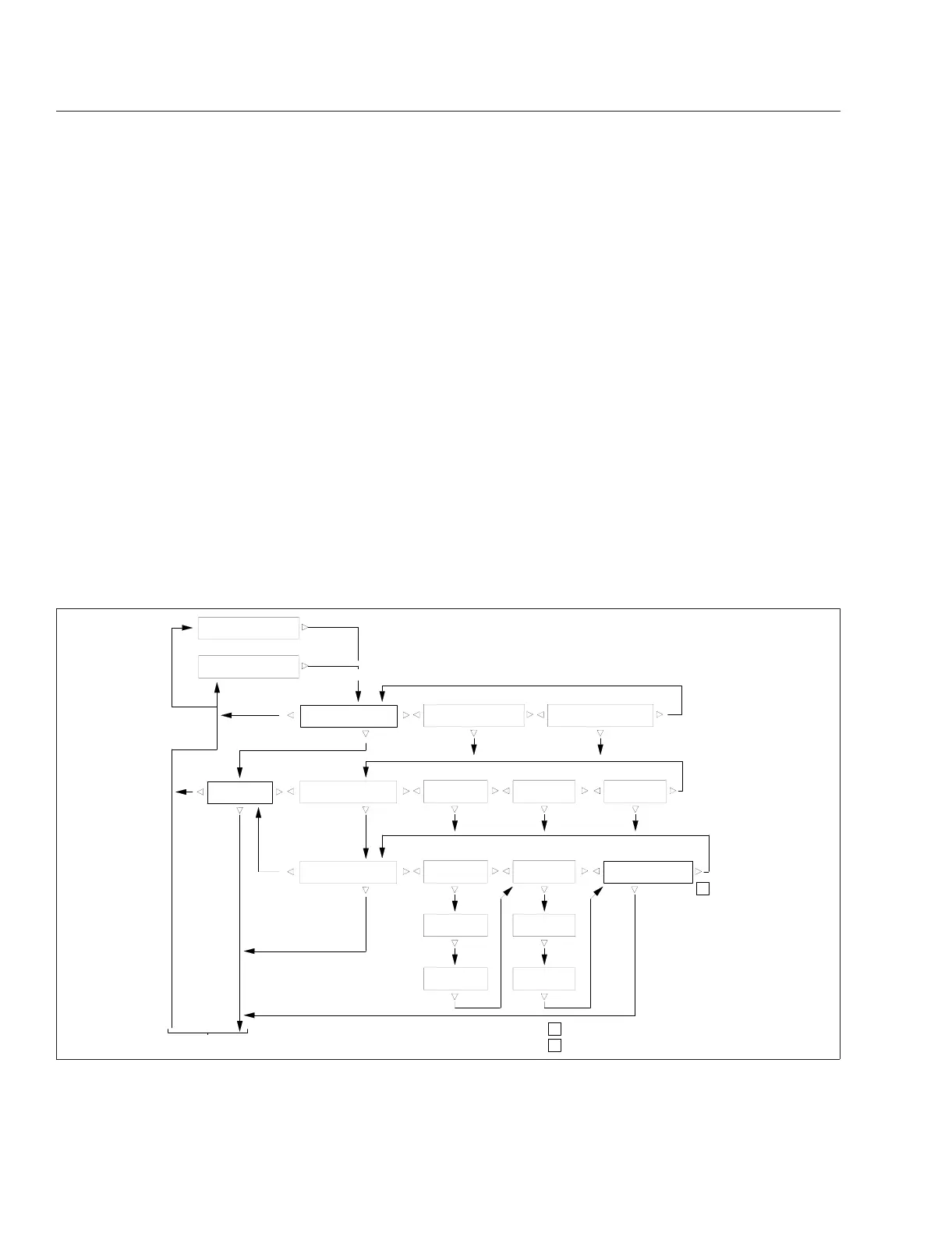

Fig. 4.19, ICU2M Engine Information and Diagnostic Information
Instruments
4.19
To Next Page
