PTO Switch
To activate the PTO function, press the upper half of
the switch. Press the lower half of the switch to de-
activate the PTO function.
Transmission Controls
Manual Transmissions
NOTE: See Chapter 14 for complete manual
transmission operating instructions.
If so equipped, the transmission range control and
splitter valves are attached to the gear shift knob.
The range-preselection lever allows the selection of
the low or high range for each transmission ratio. It is
used once during an upshift sequence and once dur-
ing a downshift sequence.
Depending on the transmission model, some ratios
can be split using the splitter-control button.
Eaton Automated Transmissions
NOTE: See Chapter 15 for complete automated
transmission operating instructions.
The SmartShift electronic transmission control is in-
stalled with the Eaton® Fuller® UltraShift
™
and
Eaton Fuller AutoShift
™
transmissions. The Smart-
Shift control is operated by the fingers of the driver’s
right hand, allowing both hands to remain on the
steering wheel.
A two-position driving mode slide switch is mounted
on the body of the control lever just before the
paddle widens out. The slide switch allows the driver
to choose automatic (AUTO) or manual (MAN) mode.
See
Fig. 5.11.
Cruise Control
WARNING
Do not use the cruise control system when driv-
ing conditions do not permit maintaining a con-
stant speed, such as in heavy traffic or on roads
that are winding, icy, snow-covered, slippery, or
roads with a loose driving surface. Failure to fol-
low this precaution could cause a collision or
loss of vehicle control, possibly resulting in per-
sonal injury or property damage.
NOTICE
When the cruise control is engaged, do not at-
tempt to shift gears without using the clutch
pedal. Failure to follow this precaution will result
in a temporarily uncontrolled increase in engine
speed. Transmission damage and gear stripping
could result.
f61119606/04/2012
HSA
OVRD

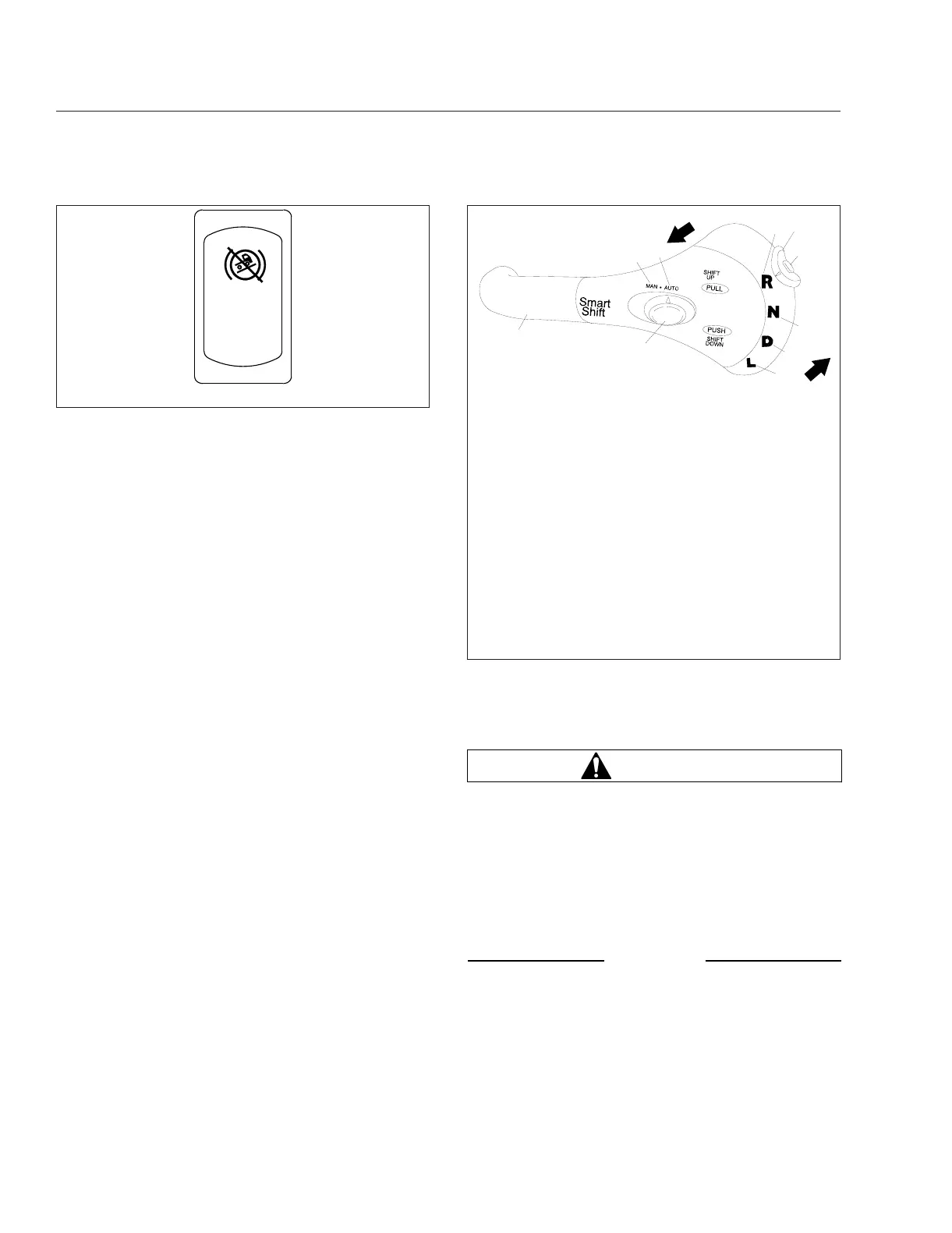

Fig. 5.10, Hill Start Aid Override Switch
01/24/2003
1
2
3
4
5
6
8
9
10
11
12
f270120
7
To upshift manually, pull the lever back (towards the
driver). To downshift manually, push the lever forward
(away from the driver).
1. SmartShift Control Lever
2. Slide Switch (forward driving mode switch)
3. MAN Mode (of slide switch)
4. AUTO Mode (of slide switch)
5. Upshift Direction
6. Reverse Position (of selector switch)
7. Selector Switch
8. Neutral Lock Button
9. Neutral Position (of selector switch)
10. Drive Position (of selector switch)
11. Low Position (of selector switch)
12. Downshift Direction
Fig. 5.11, SmartShift Control (Eaton Fuller UltraShift
and AutoShift transmissions)
Driver Controls
5.7
To Next Page
