Fore/Aft Seat Slide (seat track adjustment)
moves the entire seat forward or backward on
its track.
•
Seat Tilt allows the seat assembly (back and
bottom cushions) to tilt forward or backward.
•
Headrest Adjustment changes the angle of the
upper part of the backrest to provide head and
upper back support.
Freightliner High-Back Seat
See Fig. 7.2 for seat adjustment controls. Not all
models of the seat have all the adjustments listed
below.
Backrest Tilt
To tilt the backrest, lean forward slightly to remove
pressure from the cushion, then turn the knob for-
ward or rearward to achieve the desired position.
Lumbar Support
To adjust the lumbar support, use the lumbar support
switches on the side of the seat.
Height Adjustment
To raise or lower the height of the seat, use the
height adjustment switch on the side of the seat.
f910576
5
4
7
8
9
10
6
07/18/2007
1
2
3
NOTE: Not all models of the seat have all the adjustment controls shown.
1. Rear Cushion Height Adjustment
Knob
2. Fore/Aft Isolator
3. Front Cushion Height Adjustment
Knob
4. Bottom Cushion Extension Handle
5. Fore/Aft Seat Slide Lever
6. Backrest Tilt Knob
7. Heater Button
8. Shock Absorber Lever
9. Height Adjustment Switch
10 Lumbar Support Switches

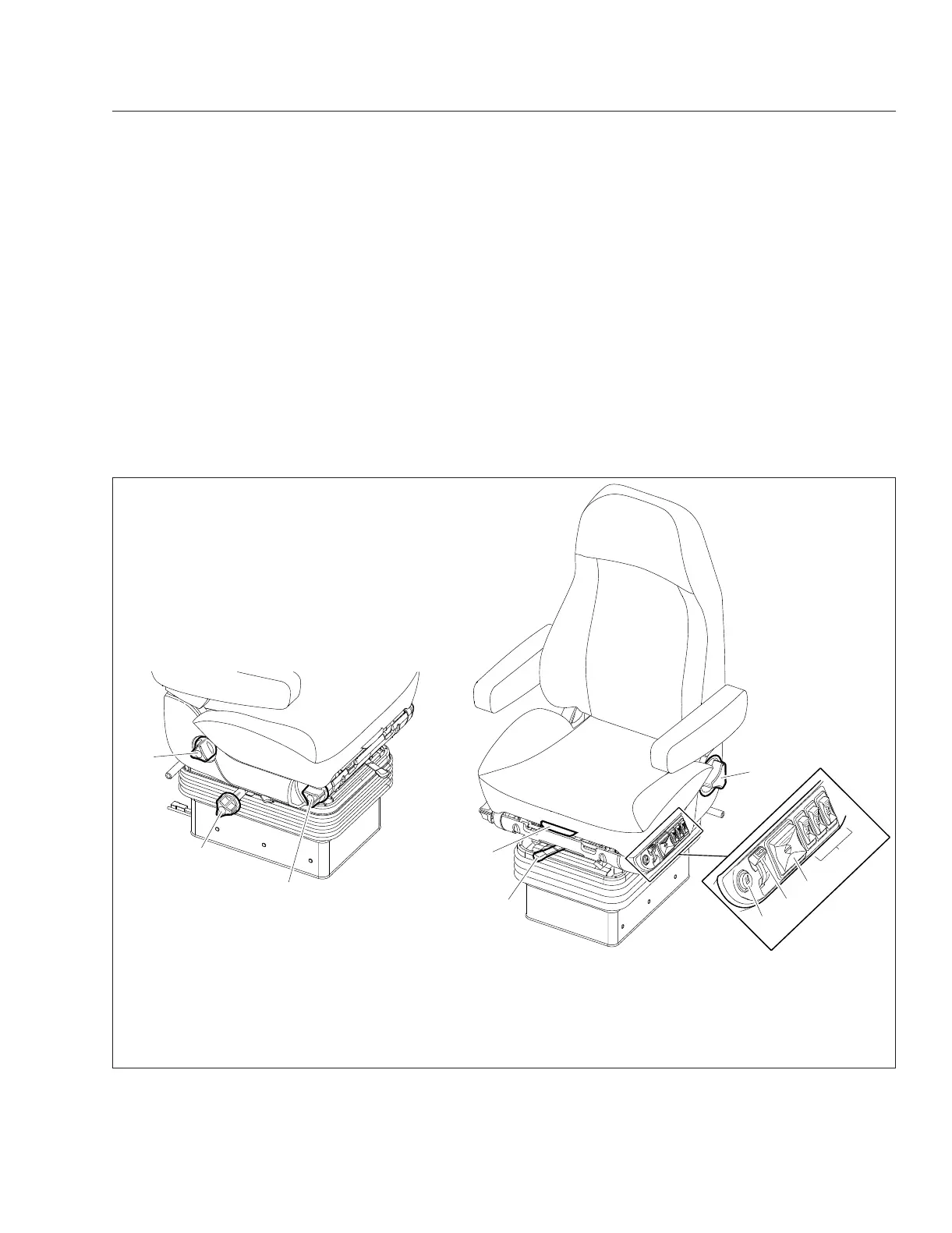

Fig. 7.2, Freightliner High-Back Seat
Seats and Restraints
7.2
To Next Page
