audible alert sounds until sufficient air pressure
builds up in the primary and secondary air sys-
tems
•
software revision level of the ICU is displayed
on the driver message center, followed by any
active faults
IMPORTANT: If any red or amber warning or
indicator lamps do not illuminate during the ICU
self-check or do not extinguish after the self-
check completes, take the action outlined in
Table 4.1, or take the vehicle to an authorized
Daimler Trucks service facility as soon as pos-
sible.
NOTE: If active faults are present, take the ve-
hicle to an authorized Daimler Trucks service
facility as soon as possible.
If the ICU receives active fault codes, it displays
them one after the other until the parking brake is
released or the ignition is turned off. Once the park-
ing brake is completely released, the ICU displays
the odometer. If there are no active faults, the ICU
displays the odometer after the self-check completes.
When the self-check is complete on an ICU4M, the
fasten seat belt screen displays if the engine is off. If
the engine is running, the idle hours screen displays.
Audible Alerts
An audible alert sounds during the ignition sequence
and whenever one of the following conditions exists:
•
Engine oil pressure falls below the minimum
preset value.
•
Coolant temperature rises above the maximum
preset value.
9
f610837b
124 5
WATER
100
150
200
250
F°
0
100
50
PSI
OIL
E
F
1/2
FUEL
AIR
0
150
50
PSI
100
AIR
0
150
50
PSI
100
6
8
PUSH−
MODE
HOLD−
RESET
7
OPT
ABS
ABS
BRAKE
CHECK
STOP
0
5
10
15
20
30
RPM
25
X100
10
3
5
15
25
35
45
55
65
75
85
MPH
km/h
30
50
70
90
130
110
10
10/26/2006
OPTOPTOPTOPTOPTOPTOPTOPT
TRANS
100
225
350
F°
11
12

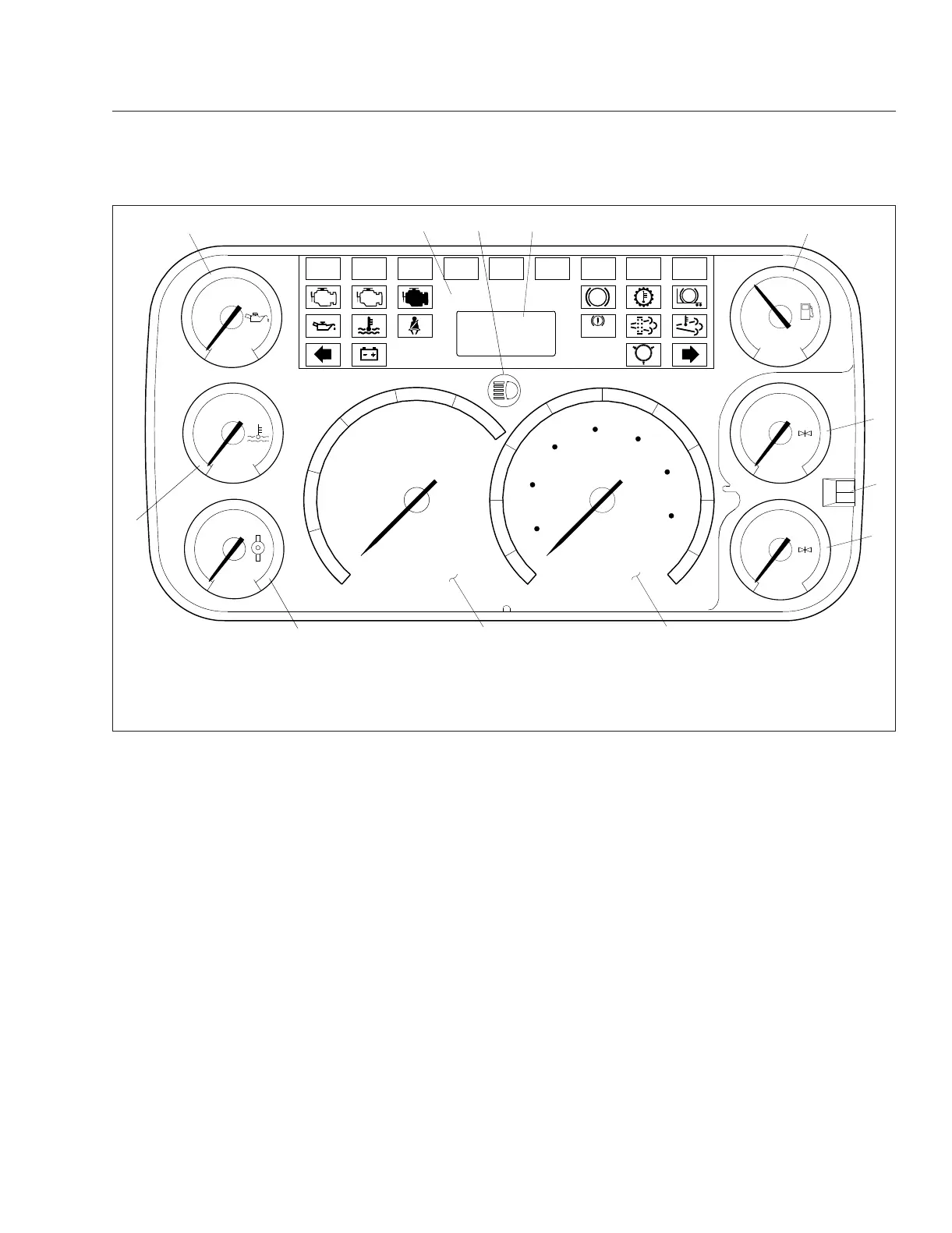

1. Engine Oil Pressure Gauge
2. Lightbar
3. Headlight High-Beam Indicator
4. Driver Message Center
5. Fuel Level Gauge
6. Primary Air Pressure Gauge
7. Mode/Reset Switch
8. Secondary Air Pressure Gauge
9. Speedometer
10. Tachometer
11. Tranismission Fluid Temperature
Gauge
12. Coolant Temperature Gauge
Fig. 4.2, ICU3 Instrument Cluster
Instruments
4.2
