8.
Selection between Floor/Defrost Mode and
Defrost Mode: Directs 75 percent of the airflow
through the defrost outlets and 25 percent
through the floor outlets.
1
2
3
54
f831453a
06/18/2003
2
3
1
4
0
1. Fan Switch
2. Air Selection Switch
3. Temperature Control Switch
4. Recirculation Button
5. Recirculation Indicator

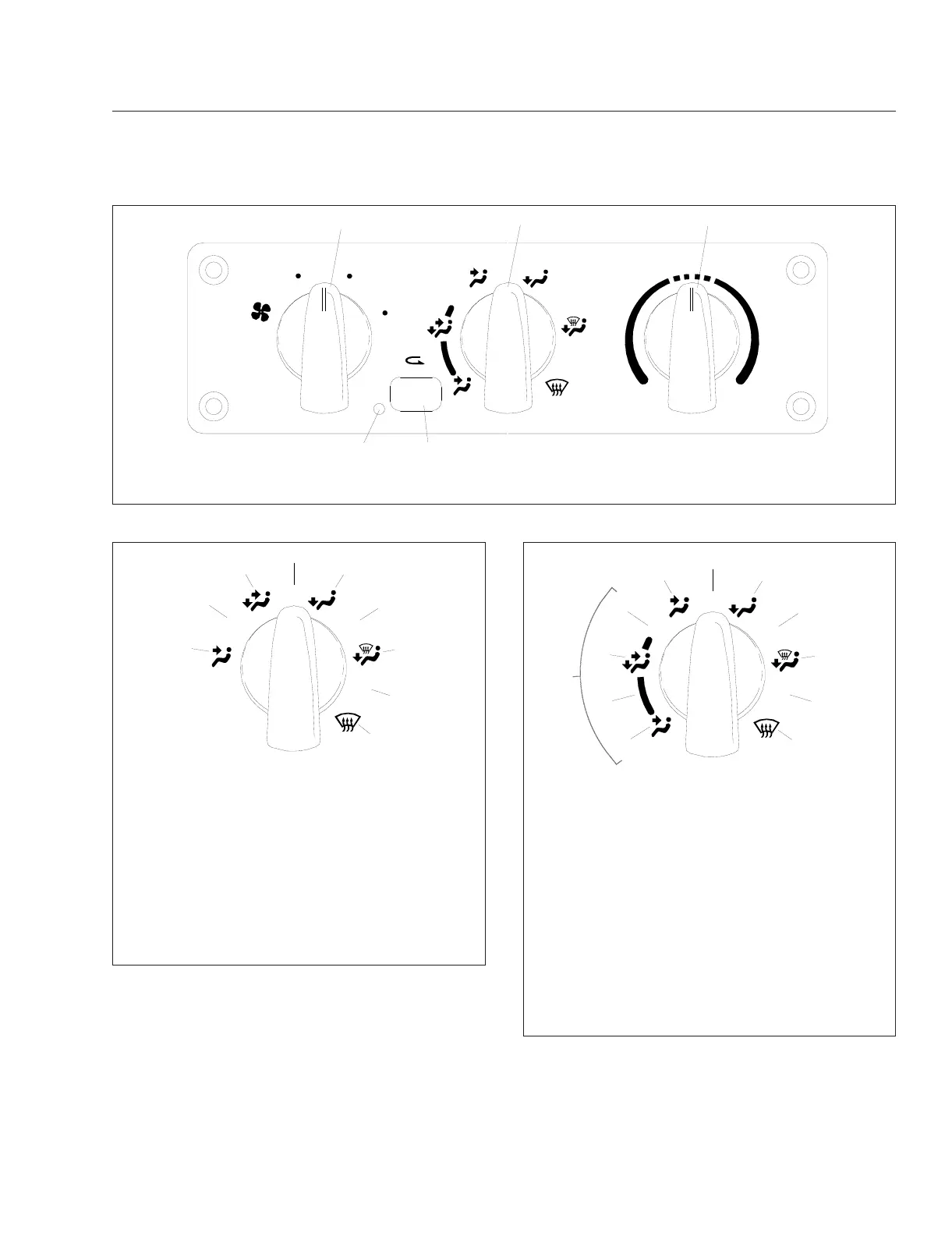

Fig. 7.2, Climate Control Panel With Air Conditioning
06/17/2003
1
2
3
4
5
6
7
8
9
f831455
1. Face Mode
2. Selection Between Face Mode and Bi-Level Mode
3. Bi-Level Mode
4. Selection Between Bi-Level Mode and Floor Mode
5. Floor Mode
6. Selection Between Floor Mode and Floor/Defrost
Mode
7. Floor/Defrost Mode
8. Selection Between Floor/Defrost Mode and Defrost
Mode
9. Defrost Mode
Fig. 7.3, Air Selection Switch Without Air Conditioning
f831462
1
2
3
4
5
6
7
8
9
10
11
06/18/2003
A
A. Air Conditioning Modes
1. Air Conditioning Face Mode
2. Selection Between Air Conditioning Face Mode and
Air Conditioning Bi-Level Mode
3. Air Conditioning Bi-Level Mode
4. Selection Between Air Conditioning Bi-Level Mode
and Face Mode
5. Face Mode
6. Selection Between Face Mode and Floor Mode
7. Floor Mode
8. Selection between Floor Mode and Floor/Defrost
Mode
9. Floor/Defrost Mode
10. Selection between Floor/Defrost Mode and Defrost
Mode
11. Defrost Mode
Fig. 7.4, Air Selection Switch With Air Conditioning
Heater, Ventilating, and Air Conditioner (HVAC)
7.2
