Friedrich FSHW091 - Indoor Unit

152 PB
PARTS CATALOG
18K Indoor Unit
18K Unit
36
35
1
10
2
3
4
5
6
7
8
9
11
12
13
14
15
16
18
19
20
21
26
25
27
28
29
32
31
24
33
34
37
38 39
22
23
17
30
10

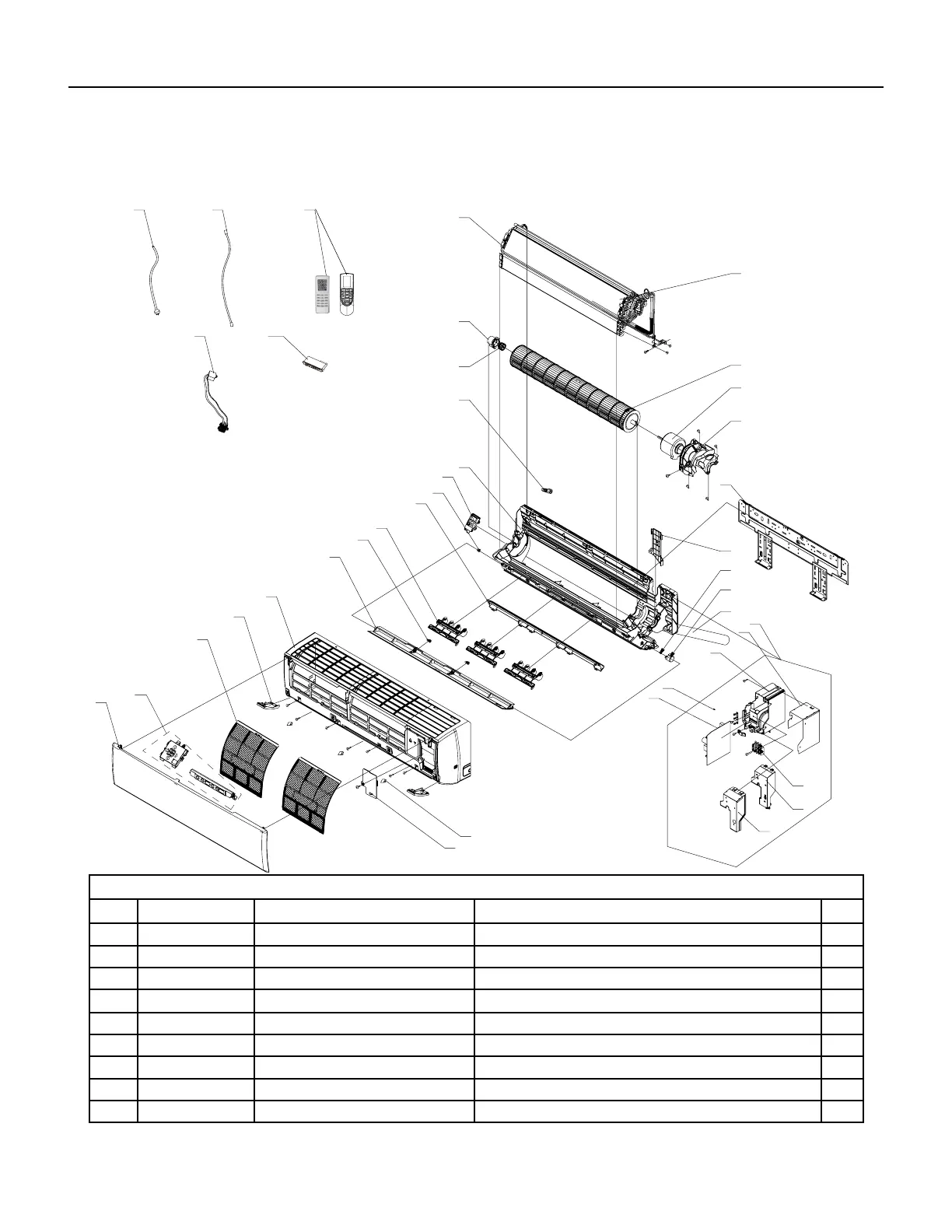

Figure 903
ITEM PART NUMBER PART DESCRIPTION USED ON MODEL QTY
1 69700691 20192703P ‑ Decorative Strip FSHW18A3A 1
2 69700692 300035 ‑ Front Panel Assy FSHW18A3A 1
3 69700628 30565260 ‑ Display Board FSHW18A3A 1
4 69700694 11122089 ‑ Filter Sub‑Assy FSHW18A3A 2
5 69700695 2019261201 ‑ Decorative Board (Left) FSHW18A3A 1
6 69700696 200023 ‑ Front Case Assy FSHW18A3A 1
7 69700697 1051273402 ‑ Guide Louver FSHW18A3A 1
8 69700647 10542036 ‑ Axile Bush FSHW18A3A 2
9 69700699 10512732 ‑ Air Louver(Manual) FSHW18A3A 3
