OPERATION

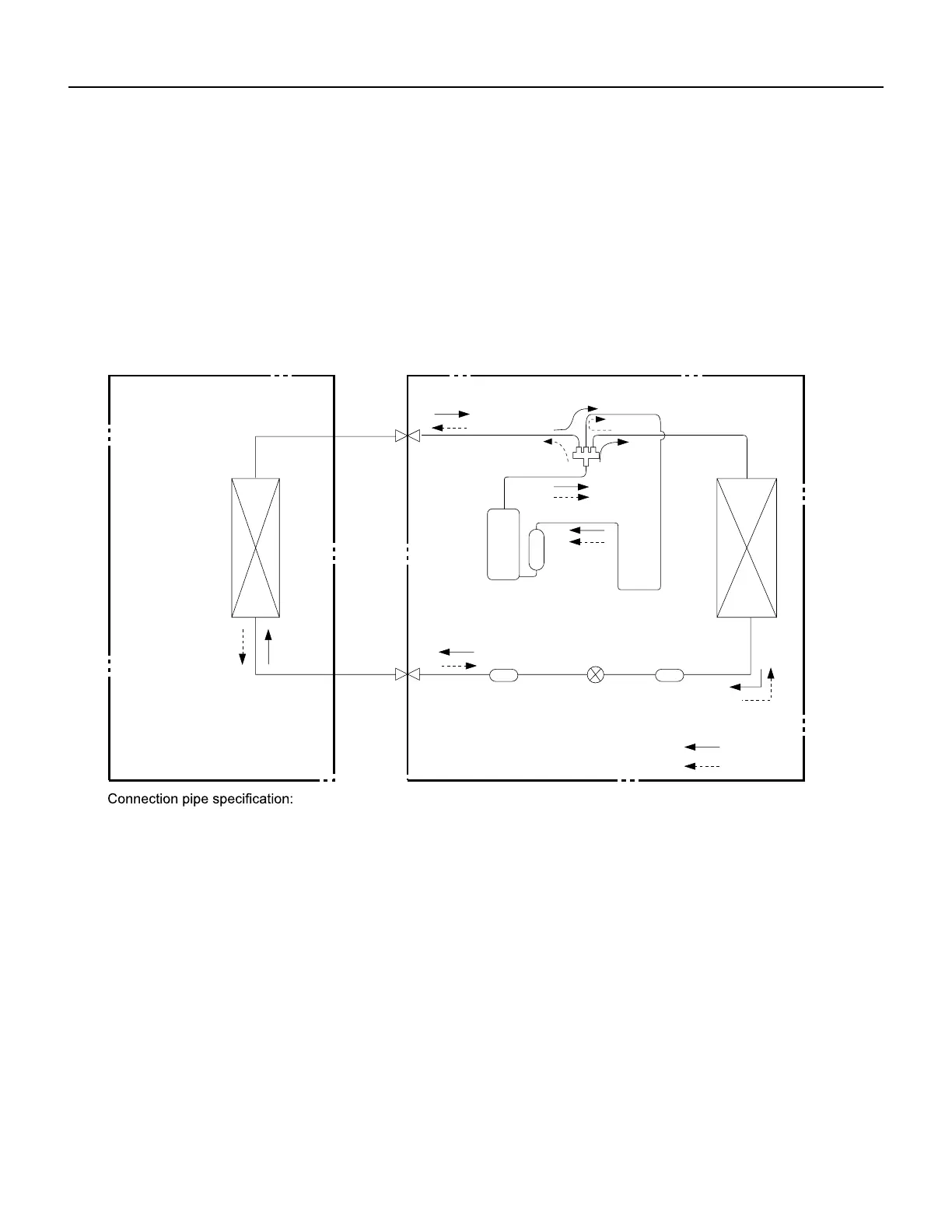

Figure 304
36K Refrigerant System Diagram
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
side
Liquid pipe
Gas pipe
side
Electron
Strainer
expansion
valve
Strainer
Accumlator
Compressor
Liquid pipe:1/4 inch
Gas pipe:5/8 inch
