154 PB
PARTS CATALOG
24K Indoor Unit
36
35
37
38
1
8
2
3
4
6
7
9
10
12
13
14
15
17
18
19
20
21
22
23
24
26
27
28
29
30
31
33
5
25
11
16
34
8
32
39

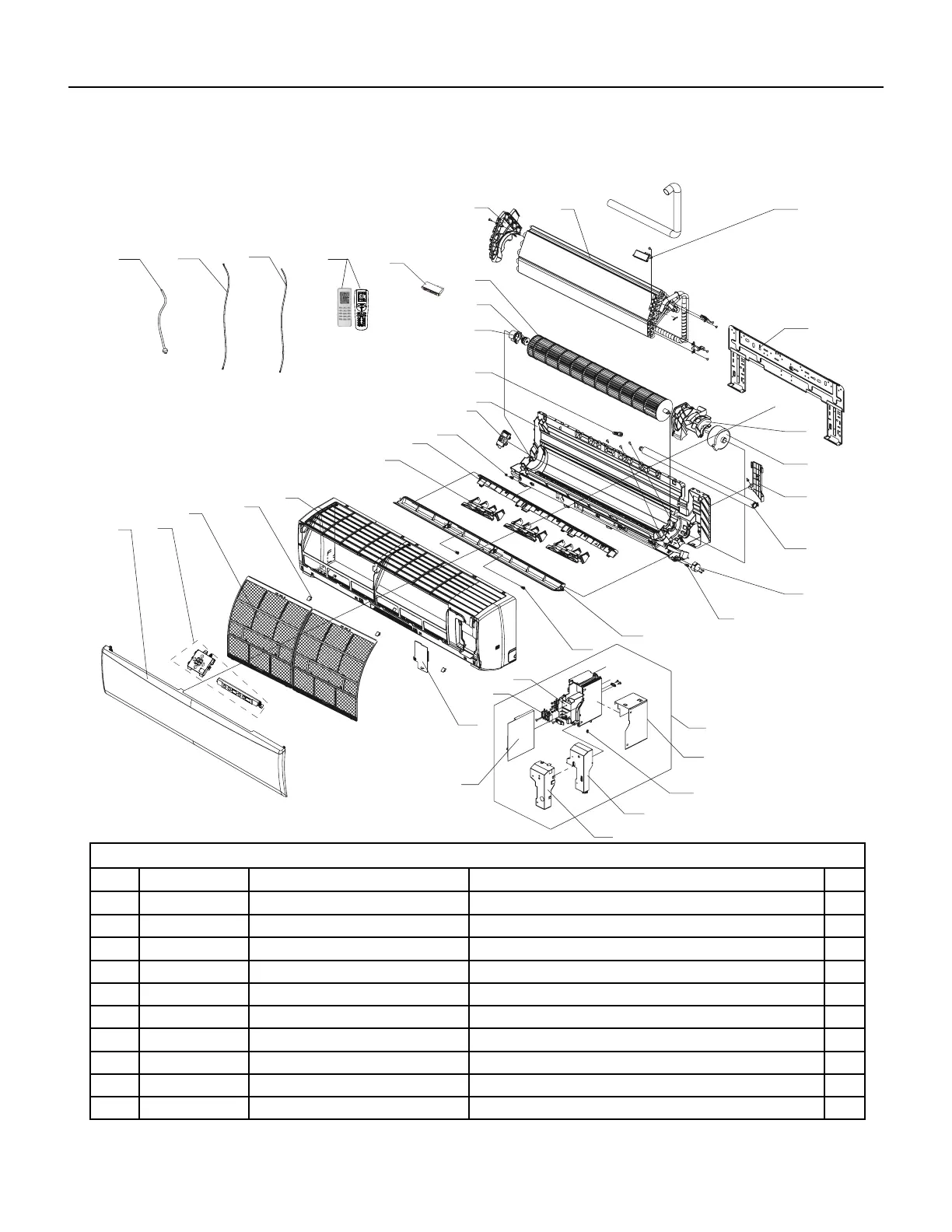

Figure 904
ITEM PART NUMBER PART DESCRIPTION USED ON MODEL QTY
1 69700732 300021 ‑ Front Panel Assy FSHW24A3A 1
2 69700733 11012007 ‑ Filter Sub‑Assy FSHW24A3A 1
3 69700734 2425245301 ‑ Screw Cover FSHW24A3A 1
4 69700735 200116 ‑ Front Case Assy FSHW24A3A 1
5 69700736 10512737 ‑ Air Louver(Manual) FSHW24A3A 1
6 69700737 26112382 ‑ Helicoid Tongue sub‑assy FSHW24A3A 1
7 69700631 10512037 ‑ Left Axile Bush FSHW24A3A 1
8 69700739 22202570 ‑ Rear Case assy FSHW24A3A 1
9 69700481 76712012 ‑ Rubber Plug (Water Tray) FSHW24A3A 1
10 69700741 26152025 ‑ Ring of Bearing FSHW24A3A 1
To Next Page
