INSTALLATION

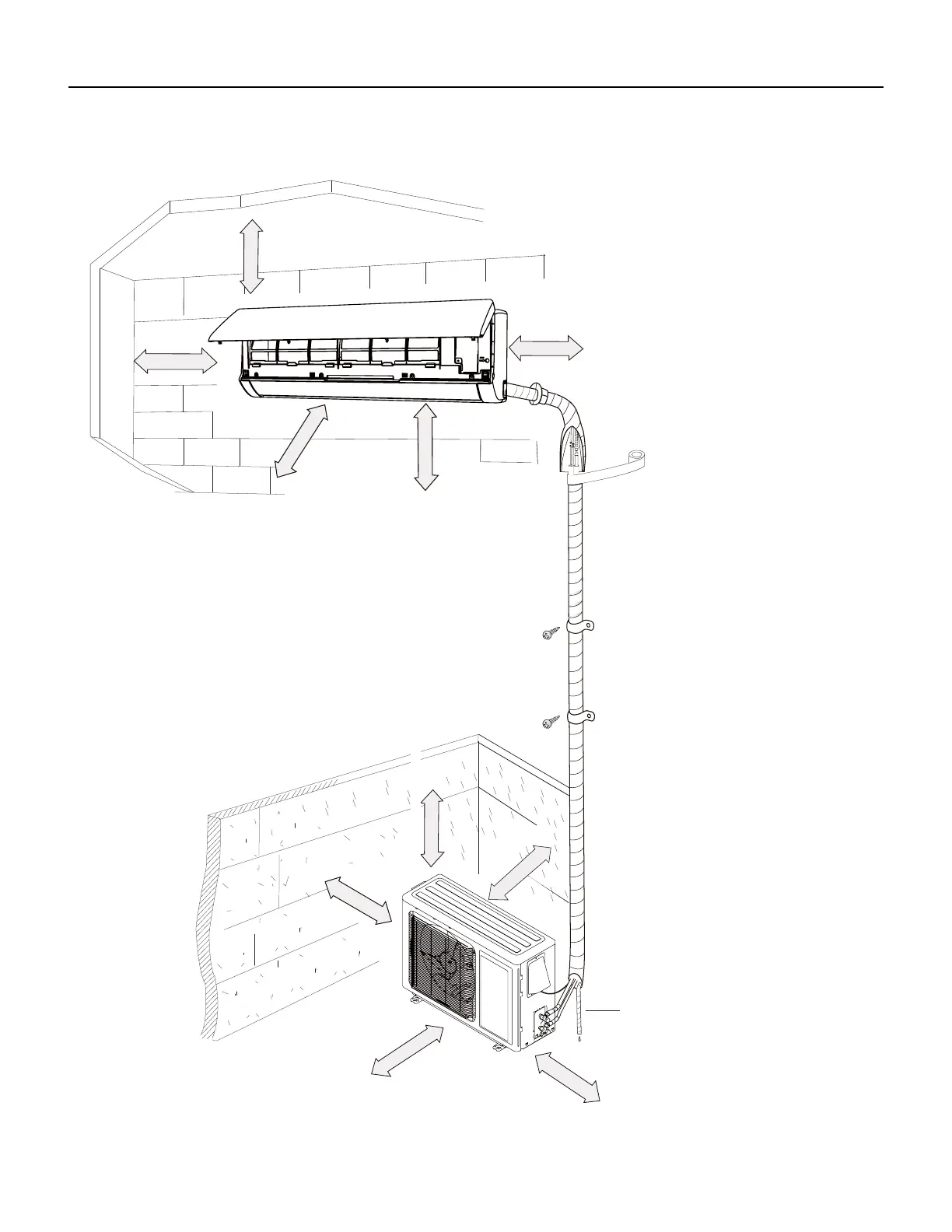

Installation Dimension Diagram
Space to the ceiling
Space to the wall
At least 5 inches(”)
At least 78 inches(”)
At least 4 inches(”)
At least 4 inches(”)
Space to the wall
Space to the obstruction
roolf eht ot ecapS
At least 60 inches(”)
Space to the obstructio
At least 28 inches(”)
At least
Space to the wall
12 inches(”)
At least 24 inches(”)
Space to the obstruction
At least 12 inches(”)
Drainage pipe
Space to the obstruction
At least 24 inches(”)
Space to the obstruction
