INSTALLATION
Installation of the Outdoor Unit
Connect Outdoor Electric Wire
1. Put power connection wire and power wire through the wire‑‑passing hole.
2. Remove the wire clip; connect the power connection wire and power wire to the wiring terminal; fix them with screws.(As
show in Fig.23)
3. Fix the power connection wire and power wire with wire clip.
4. Install the cable cross plate sub‑assy.
Notes
1. After tightening the screw, pull the power cord slightly to check if it is firm.
2. Never cut the power connection wire to prolong or shorten the distance.
3. The connecting wire and connection pipe cannnot touch each other.
4. Top cover of outdoor unit and electric box assembly should be fixed by the screw. Otherwise, it can cause a fire, or short
circuit caused by water or dust.

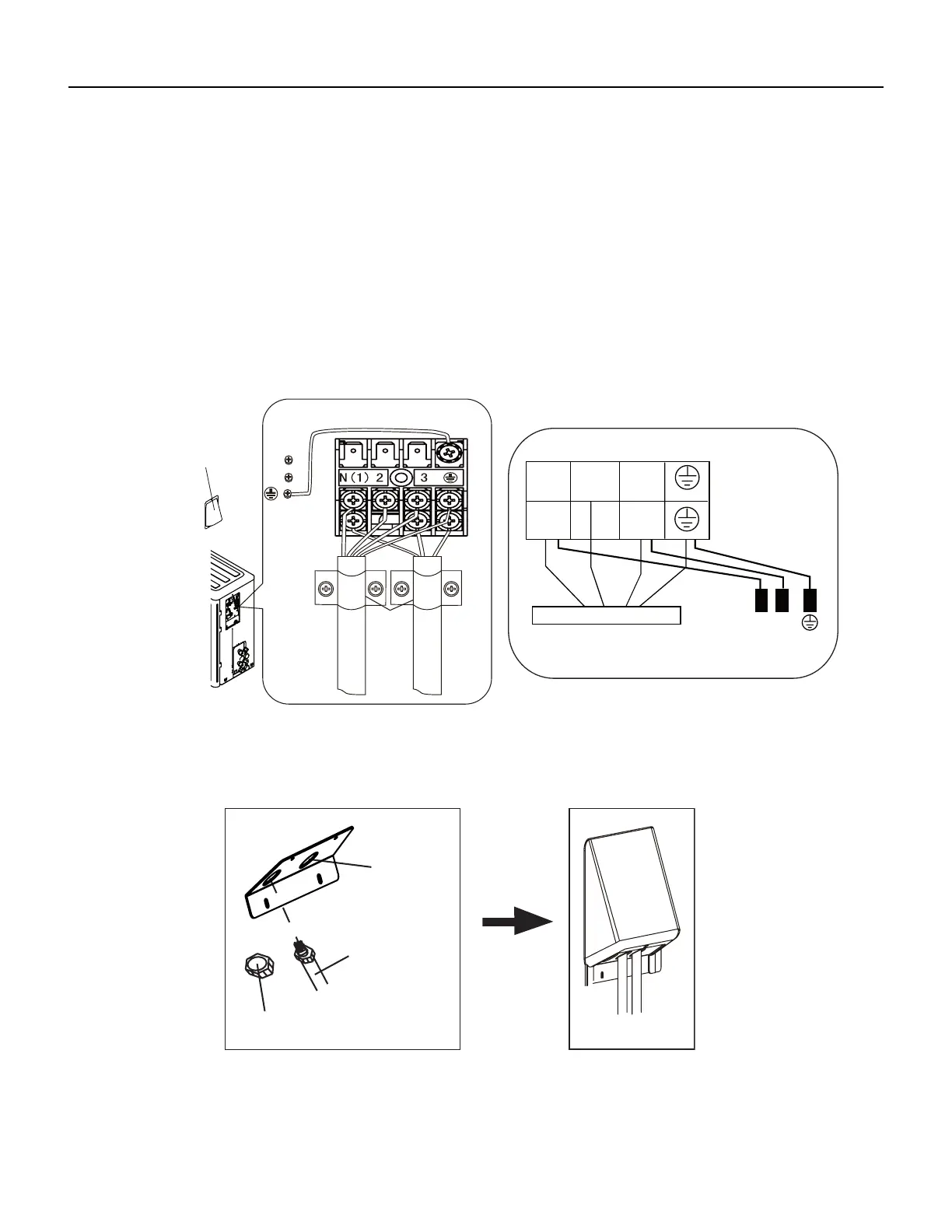

Fig.23
cord clamp
cable cross
plate sub-assy
power connect wire
power wire
N(1)
N
N
L
L
32
Indoor unit connection
wire pipe
wire-passing
hole
Fixed nut
Finish
