3.10 Timer Setting
The wired controller can set 6 kinds of timer: one time clock timer, everyday timer,
one week timer, two week timer, countdown timer on and countdown timer off. Select
timer symbol after entering menu page. Press MENU button to enter timer setting page.
Press “
∧
” or “
∨
” button to select one kind of timer. Press “
＜
” or “
＞
” button to turn on
or turn off this timer. Please refer to Fig. 11.

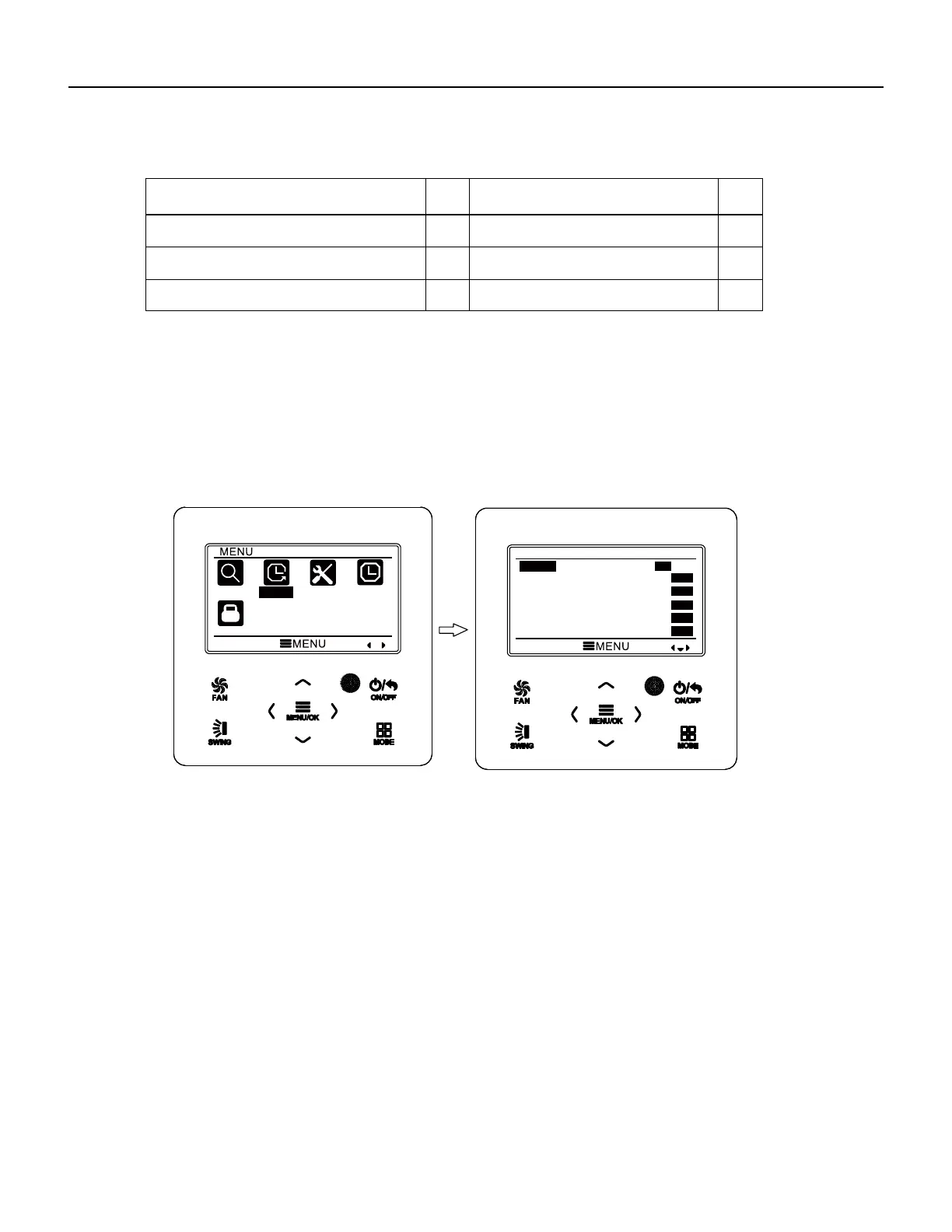

Fig. 11 Turn on or turn off timer
3.10.1 One Time Clock Timer
The wired controller can set one time clock timer. If the unit is off, timer on can be
set. If the unit is on, timer off can be set. This timer will be carried out for only once
when timer time is reached and then the timer will be off automatically.
In timer function setting page, when one time timer is selected, press “
＜
” or “
＞
”
button to turn on or turn off this timer function.
Press MENU button to enter timer time
setting page, as shown in Fig. 12.
Press “
＜
” or “
＞
” button to select timer hour or minute and press “
∧
” or “
∨
” button
to adjust time. Holding “
∧
” or “
∨
” button increases or decreases time rapidly. After
finishing setting, press MENU button to save timer time.
