10
Condenser CFM & External Static Pressure
Vert-I-Pak is designed to install through an exterior wall with a plenum (VPAWP-8, VPAWP-14) and a Friedrich external louver .
If the Friedrich designed plenum and louver combinations are not used, the selections and design must be evaluated by Friedrich to ensure the total
pressure drop does not exceed the maximum allowable limits.
Condenser External Static Pressure
Model
Design Maximum
CFM
ESP ("WC) ESP ("WC)
VHA09 650 0.03 0.12
VHA12 650 0.03 0.12
VHA18 950 0.03 0.12
VHA24 980 0.03 0.12

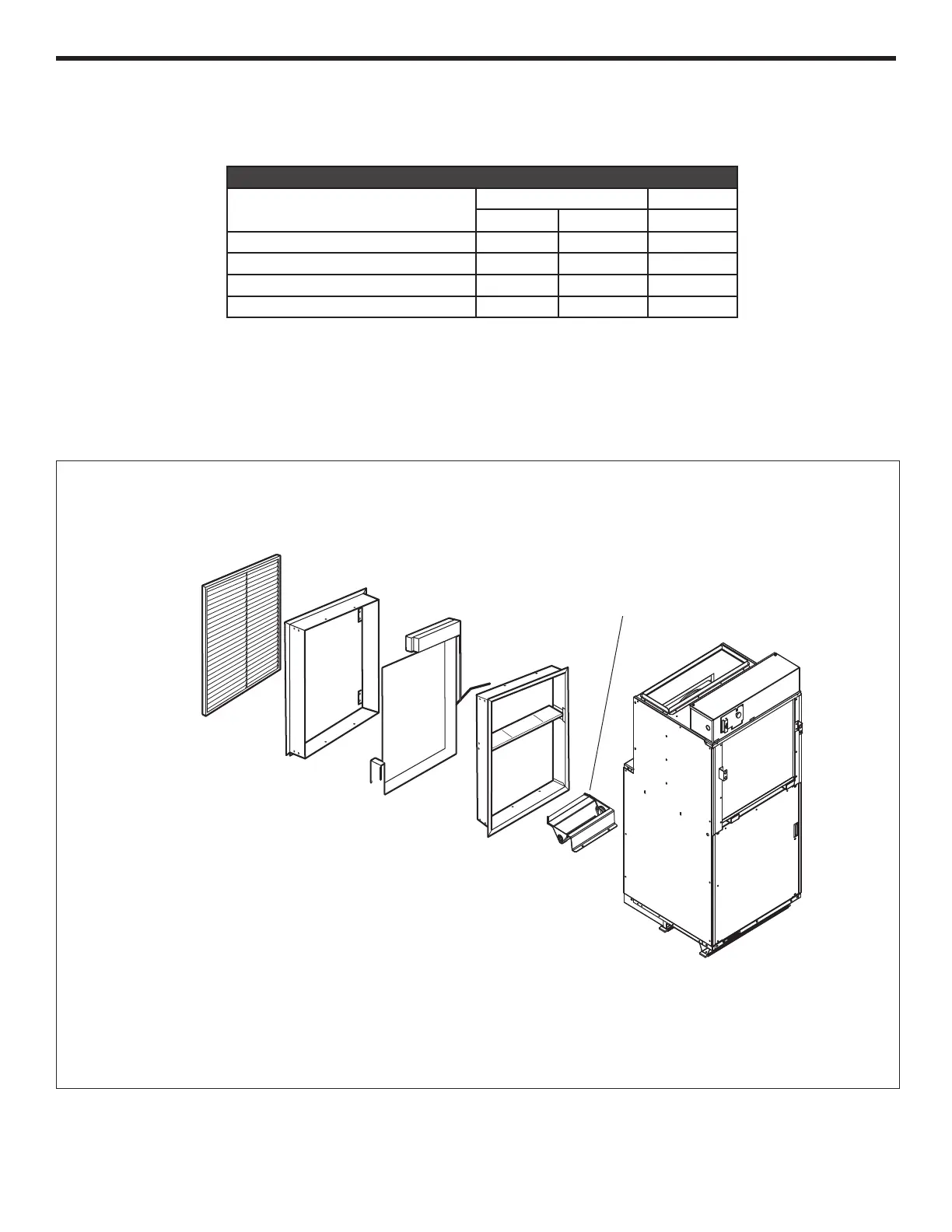

Typical Installation Overview
Louver
Outside/Exterior
Wall
Part B
Inside
Wall Plenum
Unit
Part A
Outside
Wall Plenum
VPAWP1-8 = 5 1/2" - 8" D x 24 1/8" W x 30 3/8" H
VPAWP1-14 = 8" - 14" D x 24 1/8" W x 30 3/8" H
VPDP2 drain pan required
for VHA18 and VHA24 models only
