Louver Installation

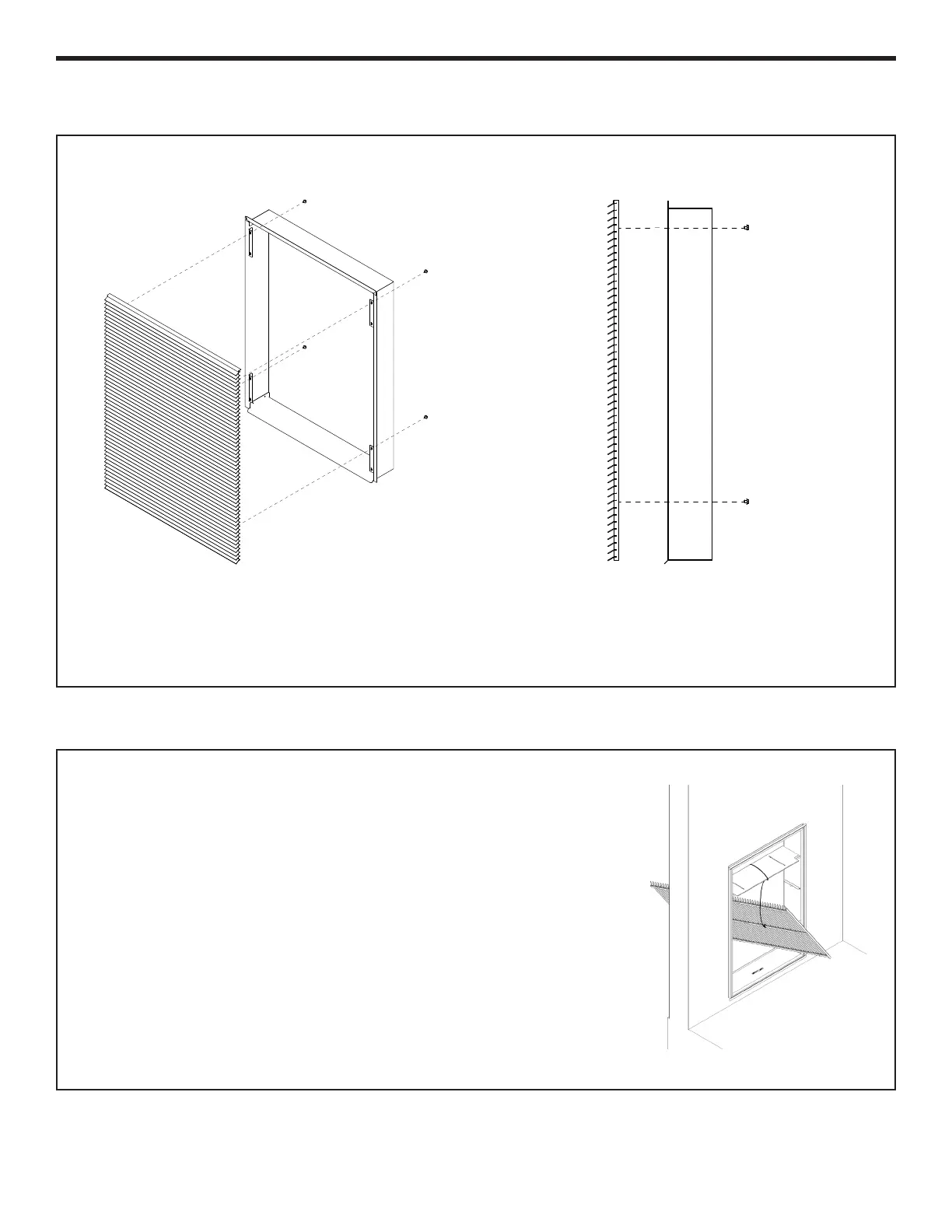

Installation of the louver PRIOR to wall plenum installation
1. Hold the louver up to the outside plenum half (Part A) and line up the louver top with the very top edge of the ¾”
ange.
2. Line up the wall plenum holes with the threaded holes in the louver and securely tighten fasteners.
Installation of the louver AFTER the installation of wall plenum on
elevated oors
From the interior of the utility closet:
1. Tie a rope or tether to the architectural louver and the divider in
the wall plenum to prevent it from falling if dropped.
2. Turn the louver sideways and push the louver out below the
divider in the wall plenum.
3. Pull the louver back against the wall plenum and align the holes.
4. Insert and tighten all eight provided fasteners. When the louver is
secured, remove the safety tether.
