Chassis Installation
CAUTION
Excessive Weight Hazard
Use two or more people when installing your air
conditioner.
Failure to do so can result in back or other injury.
CAUTION
Cut/Sever Hazard
Some edges may be sharp.
Use gloves or other hand protection when han-
dling the unit.
Failure to do so can result in minor to moderate
personal injury

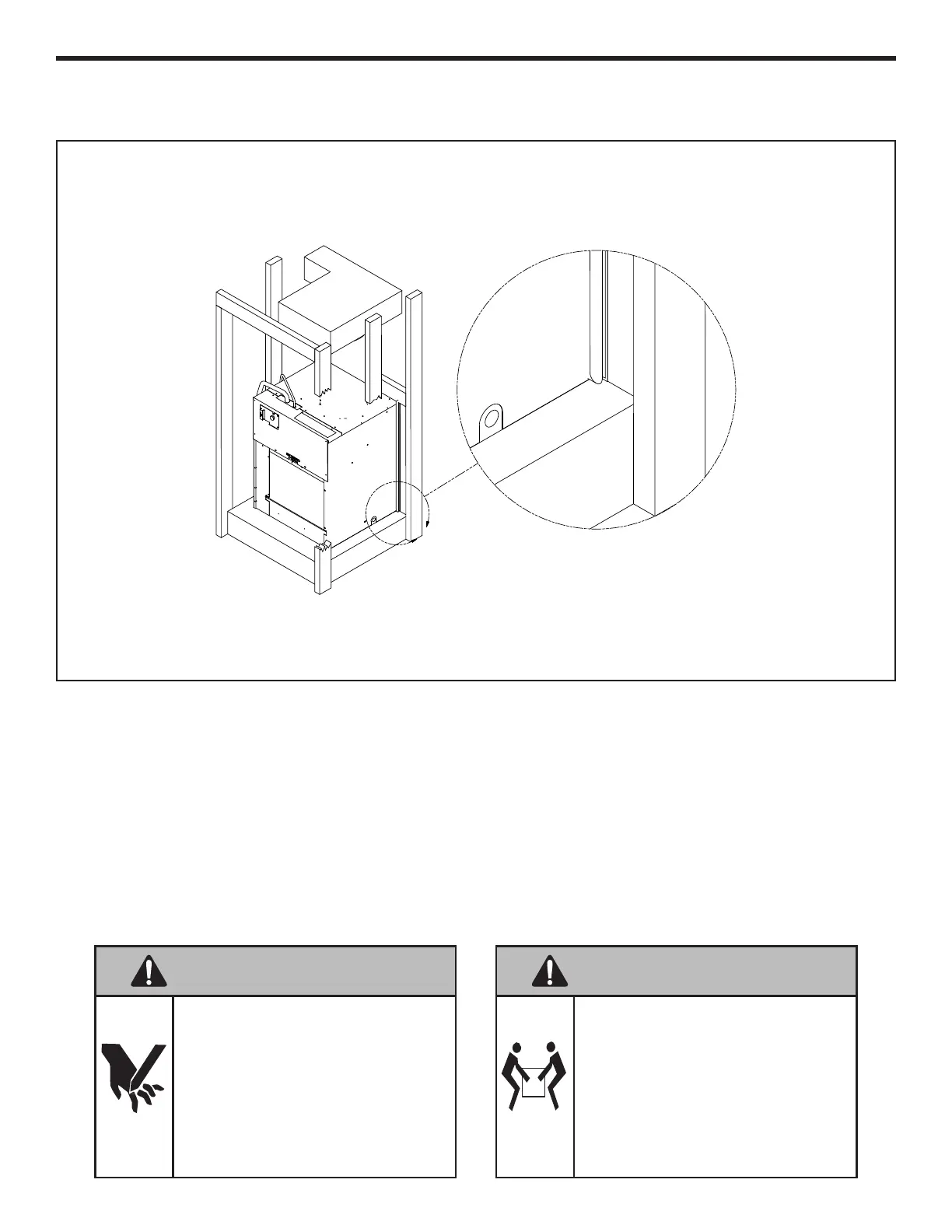

1. Ensure that the wall plenum and louver are installed in accordance with the instructions listed on pages 13-18.
2. Place the chassis into the closet with the outdoor side facing the wall plenum opening.
3. Slide the chassis into the wall plenum until the plenum divider seal is established.
Note: The Vert-I-Pak chassis must be inserted into the wall plenum so that the plenum divider gasket makes contact with
the plastic condenser bafe on the unit. The chassis will t approximately 2 3/8” into the wall plenum.
