1. Unit needs to be removed from sleeve or closet to facilitate fan
replacement. Refer to Chassis Removal
2. Remove electrical box cover.
3. Disconnect the terminals and the P3 cable connector on the indoor
fan motor controller.
3. Remove right side access panel.
4. Remove 10 fan mounting screws.
5. Remove four screws on top.
6. Remove 3 screws on right side.
7. Move inner fan support wall back and slide fan out of the right side of
the unit.
8. Remove 4 allen screws to separate motor from mount.
COMPONENT TESTING

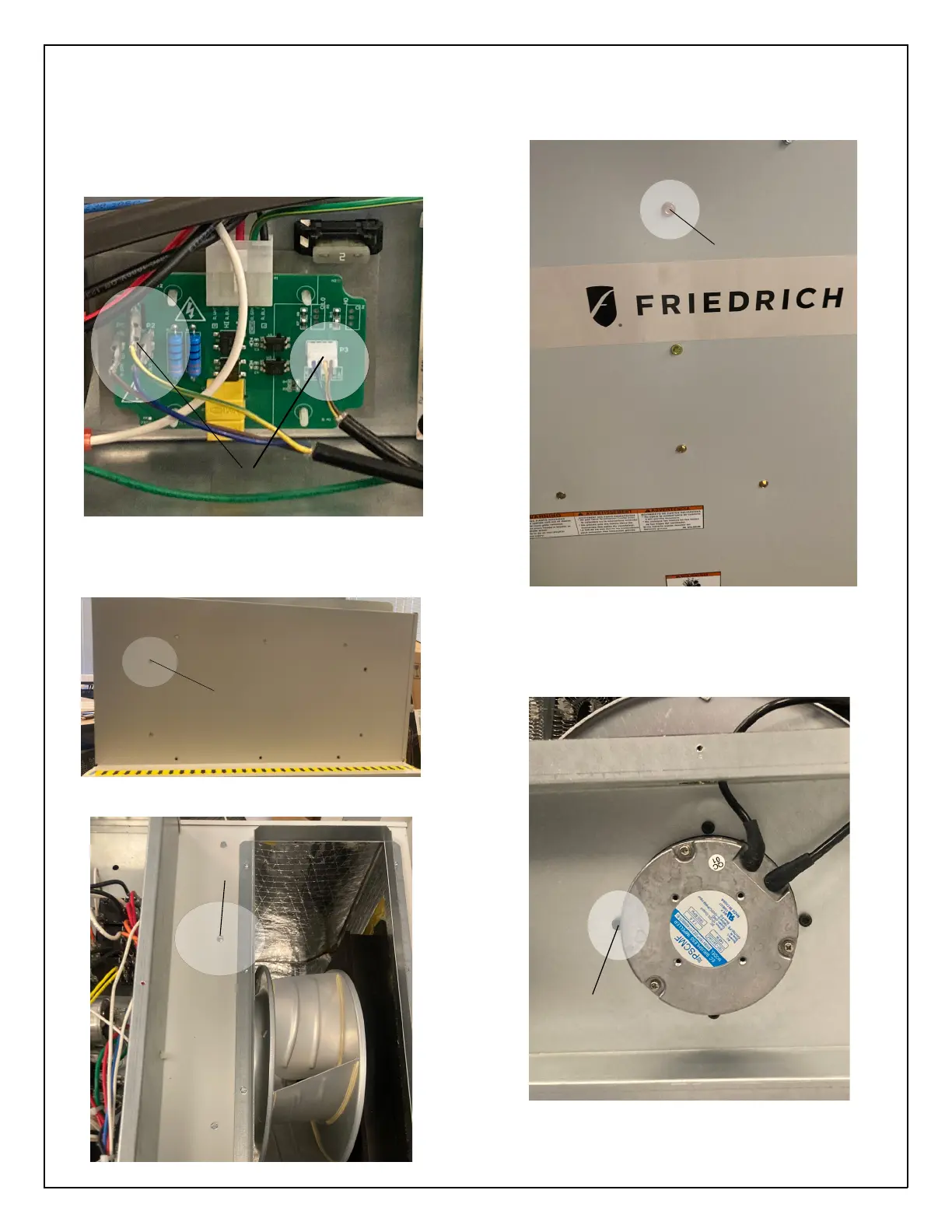

Replace Evaporator Blower Motor
Disconnect
Remove screws (10 places)
Remove Screws (4 places)
Remove Screws (3 places)
Remove mounting bolts
(4 places)
To Next Page
