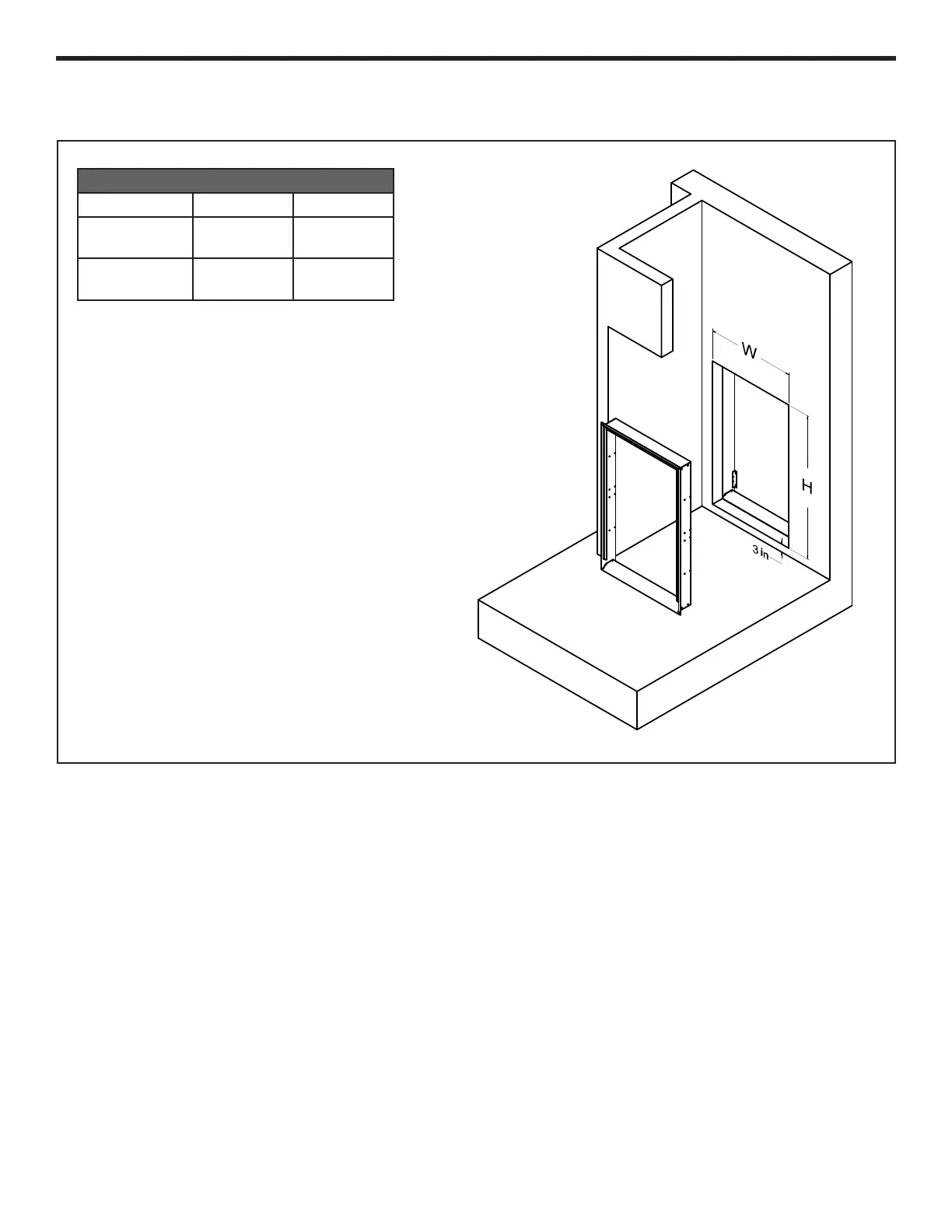

Exterior Wall Opening Dimensions
Exterior Wall Rough Opening Dimensions
Unit Width Heigth
Compact
(VRPXWPA-*)
28 1/8" 32 1/4"
Standard
(VRPXWPB-*)
28 1/8" 42 1/4"
Compact (A) conguration is for 12000 BTU units
only. Standard (B) conguration is for 24000 BTU
and 12000 BTU units. A compact 12000 BTU unit
can be converted to standard dimensions with a
factory provided adapter. Ensure that the correct
wall plenum is selected based on unit congura-
tion.
NOTE: The distance between the rough opening and
the nished oor/platform must be 3”.
