Wall Plenum Installation

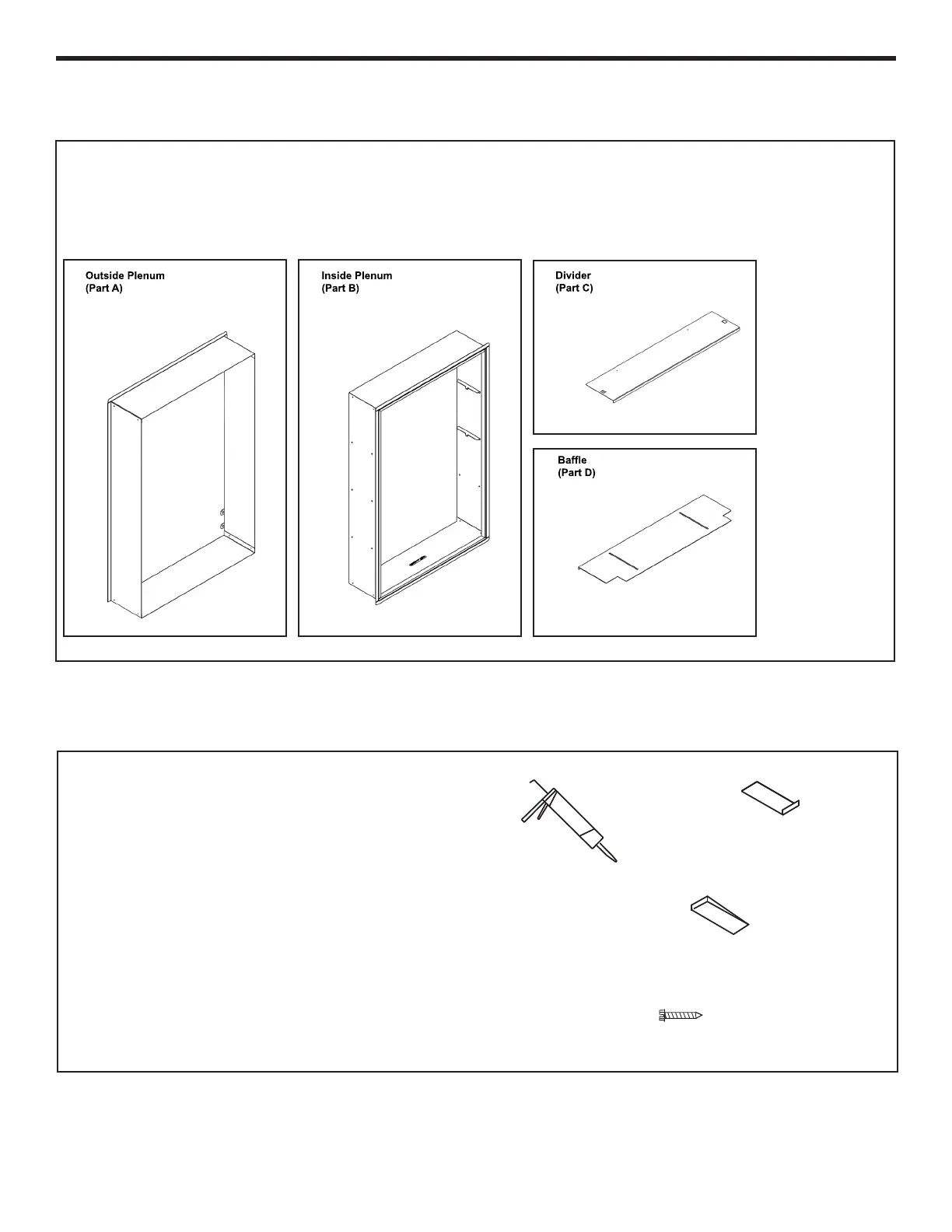

Parts included in Plenum kit:
Outside Plenum (Part A) Divider (Part C)
Inside Plenum (Part B) Bafe (Part D)
Field Supplied Parts:
Sealant, attachment screws, and ashing
are eld supplied. Silicone sealant is recommended.
VRPXWPA-8, VRPXWPB-8 adjust for walls up to 4”- 8” thick.
VRPXWPA-14, VRPXWPB-14 adjust for walls up to 8” - 14” thick
All installations are similar.
Flashing
1”-3” Screws to
attach the plenum
assembly to the wall
studs
Sealant
Shim
