9.15 Motor Brake Clutch
(MBC) - FFLE3911QW and
FFLG4033QW
9.15.1 General Characteristics
Motor Brake Clutch is the device that engages and
disengages the drum during rinse and spin operations.
During rinse, it engages the motor with the agitator and
during the spin it disengages the motor with the agitator and
engages it with the drum. Incase of a door lock failure, and
when the user opens the door while the program is running,
the MBC applies the brake to stop the rotation of motor.

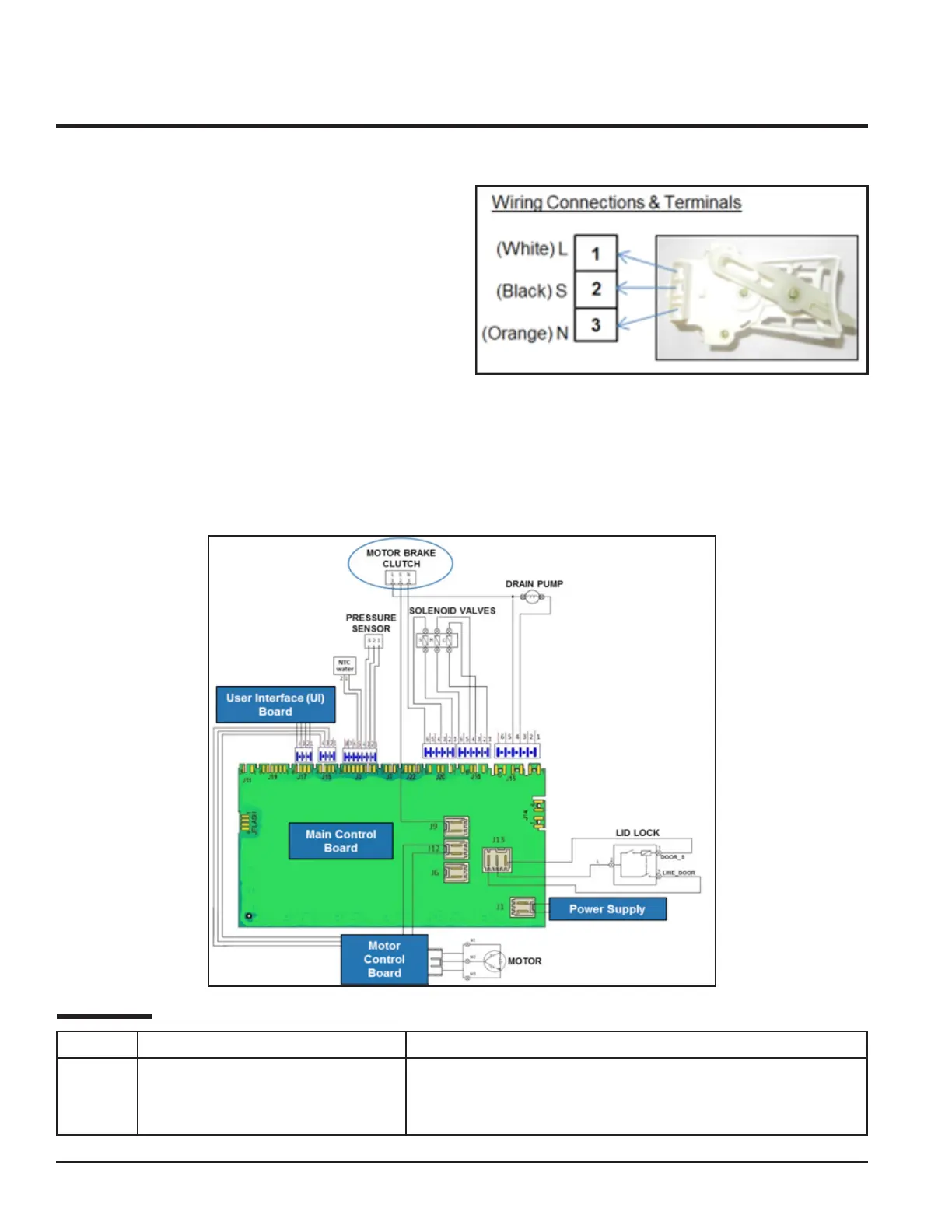

Wiring Diagram - FFLE3911QW and FFLG4033QW
S.NO Component Specifications
1 Motor Brake Clutch (MBC) 2900 Ω to 3100 Ω (Resistance at 25 ºC ); AC 120 V, 60 HZ, 2 mA
Specifications
To Next Page
