28

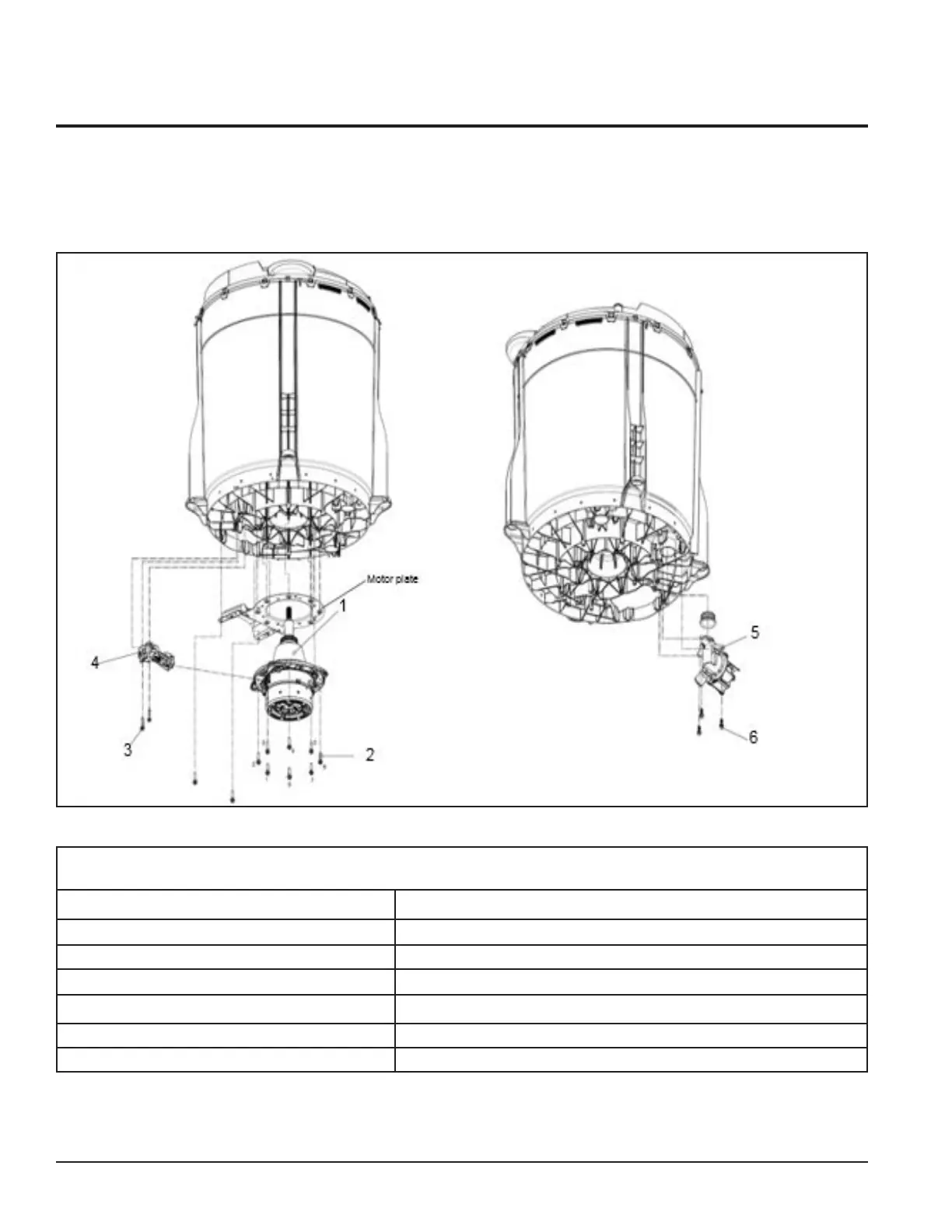

5.3 FFLE3911QW and FFLG4033QW

5.3.1 Motor Gear Box Assembly / Tub

5.3.1 Motor Gear Box Assembly / Tub

POS. NO DESCRIPTION

#1 Motor Gear Box Assembly

2 Screw, 10 PLCS

3 Screw, 2 PLCS

#4 Motor Brake Actuator, Clutch

#5 Drain Pump Assembly

6 Screw, 3 PLCS

# Functional parts
