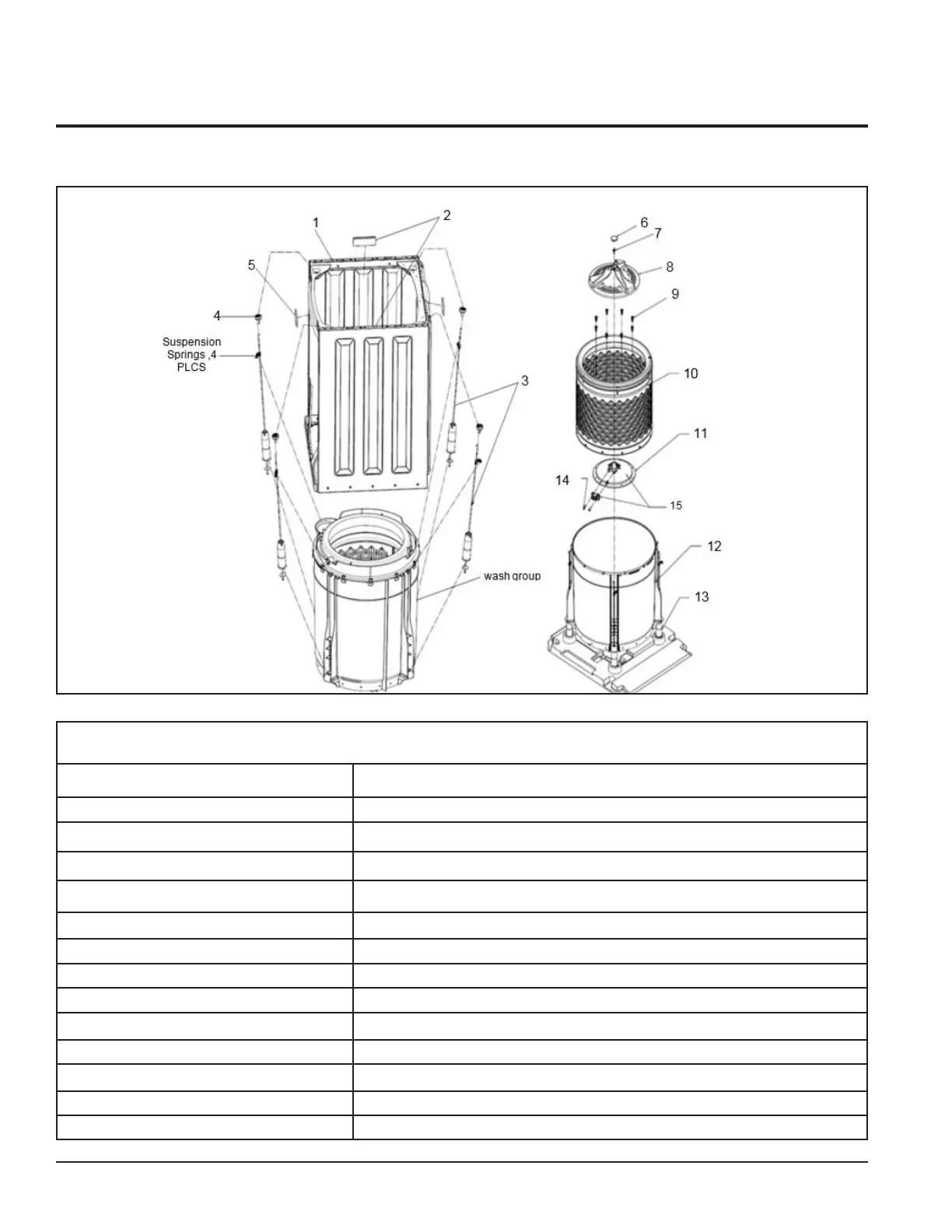

5.3.3 Wash Assembly

POS. NO DESCRIPTION

1 Washer Cabinet Assembly

2 Cushion Pads , 2 PLCS

#3 Suspension Rods Assembly, 4 PLCS

4 Pivots , 4 PLCS

5 Cushion Pads (Felt Only), 2 PLCS

6 LPA CAP

7 Screw

#8 Agitator Assembly

9 Screw,8 PLCS

10 Spin Tub Assembly

11 Hub Assembly

12 Splash Tub Assembly

13 Suspension Assembly , 4 PLCS
