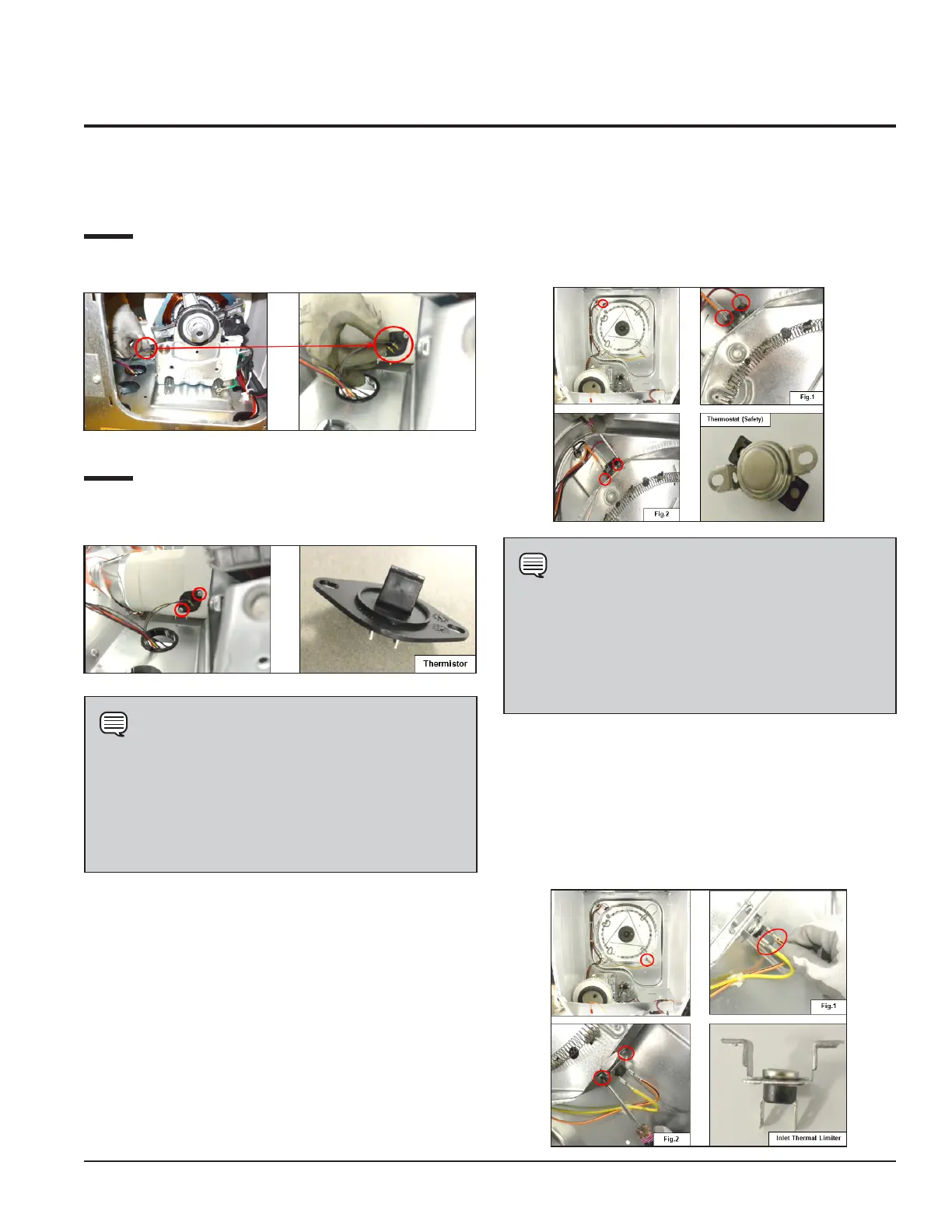

11.6.3 Exhaust Thermistor
Accessibility
Step: 1
Detach the terminals of the Blower Exhaust Thermistor.
Step: 2
Loosen the screws (2) to remove the Blower Exhaust
Thermistor.
11.6.4 Thermostat (Safety)
Accessibility
Detach the Thermostat terminals (See Fig.1) and loosen
the screws (2) (See Fig. 2) which is fixed with the Heating
Element Assembly.
11.6.5 Inlet Thermal Limiter
Accessibility
Detach the Inlet Thermal Limiter terminals (See Fig.1)
and loosen the screws (2) (See Fig. 2) that is fixed with the
Heating Element Assembly.
NOTE
1. To access the Exhaust Thermistor, access the
Front Panel Assembly and the Drum.
2. Refer to the Front Panel Accessibility and Drum
Accessibility sections for accessing the Drum and
Front Panel Assembly.
NOTE
1. To access the Thermostat Safety, access the
Front Panel Assembly and the Drum.
2. Refer to the Front Panel Accessibility and Drum
Accessibility sections for accessing the Drum
and Front Panel Assembly.
