Frigomat G5 - Page 28

EN
FRIGOMAT G5 G10 M04.37562 R.2021.10.23 11

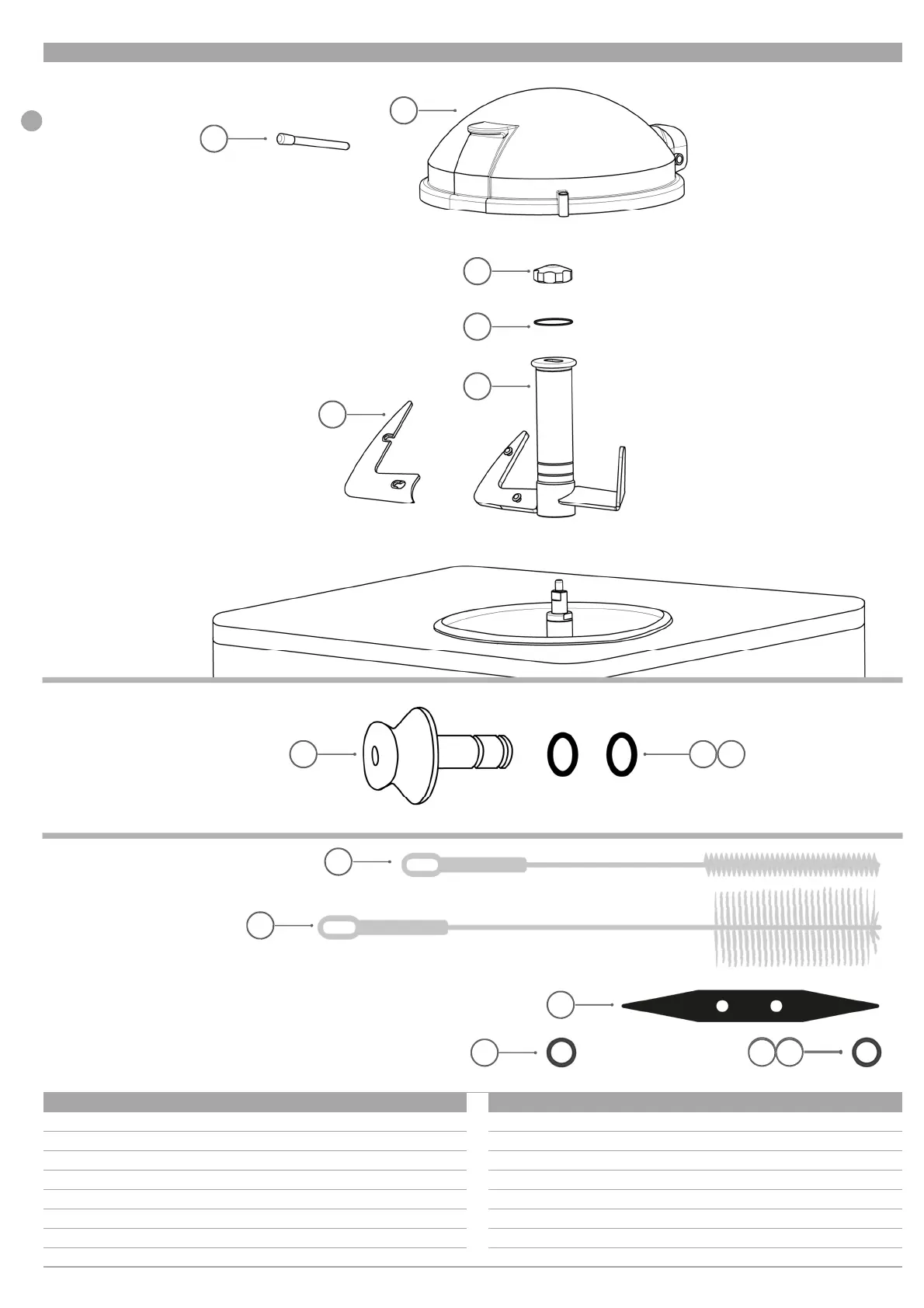

Exploded Views for user
Cover - Beater
Drain cylinder plug
Supplied kit
N. COD. DESCRIPTION N. COD. DESCRIPTION
1 Z65.43335 Cover 9 P13.002 Small Brush
2 Z63.43362 Cover pin 10 P13.001 Medium Brush
3 L18.37559 Knob Beater 11 P13.007 O-R disassembler
4 P10.045 O-Ring knob beater 12 P10.045 O-Ring knob beater
5 Z70.41914 Beater 13 P10.062 O-Ring cylinder drain plug
6 P18.37729 Scraper - - -
7 P19.37838 Cylinder drain plug - - -
8 P10.062 O-Ring cylinder drain plug - - -
X2
13
2
1
3
4
5
6
7
9
10
11
8
x2
x2
13 12
