II TRANSPORT AND INSTALLATION
The manufacturer will not be held liable for personal harm and/or
damage to objects deriving from incorrect installation and/or by
failure to comply with work accident-prevention standards.
This lack of compliance causes the warranty to terminate.
These operations are reserved exclusively for authorised from
the manifacturer and qualified personnel.
1 PRELIMINARY INSPECTION
The machine is transported at the risk and peril of the customer. If you noti-
ce any damage to the packaging, immediately inform the carrier.
Inform the carrier immediately after opening the package if the machine is
damaged even if a few days after delivery.
It is always preferable to accept goods SUBJECT TO CLEARANCE.
2 STORAGE
Once the appliance has been unpacked, the packaging must be kept in a
dry place out of the reach of children. If stored properly, it can be reused if
the machine is moved.
For unpacking and repacking procedures, refer to the document
"UNPACKAGING INSTRUCTIONS" applied to the packaging of the machi-
ne.
Storage temperature must be between 0 °C and +50 °C (32 °F - 122°F), and
humidity must be between 30 and 95% with no dew.
3 INSTALLATION PLACE, POSITIONING
The handling of this machine must be carried out with extreme care and in
compliance with the regulations on the prevention of accidents at work in
force in the country in which it is installed. If necessary, equip yourself with
personal protective equipment (safety shoes, gloves, etc.). Two or more
persons are required to safely move this machine. Failure to comply may
result in personal injury or machine damage.
Make sure the appliance is positioned on a solid, stable, flat and levelled
surface.
Check that the place where the machine is installed is ventilated and cor-
rectly illuminated.
It is mandatory to position the machine far away from equipment which
emits electromagnetic radiation which could cause its malfunctioning.
Install the machine in areas where use and maintenance is possible only by
trained personnel. Failure to comply with this requirement may lead to physi-
cal damage or machine failure.
For Indoor Use Only: This machine is designed to operate indoors under
normal ambient temperatures of 16 °C e 32 °C (61 °F - 90 °F).
The freezer has successfully performed in high ambient temperatures of
104 °F (40 °C) at reduced capacities.
Humidity must be between 30 and 85% with no dew.
Install the machine in places that are not excessively ventilated, protect it
against drafts and avoid direct sunlight.
4 INSTALLATION
This machine should be installed in accordance with the existing local co-
des. Please contact your local authorities.
Block the machine by acting on the relevant brake lever on the rear wheels.

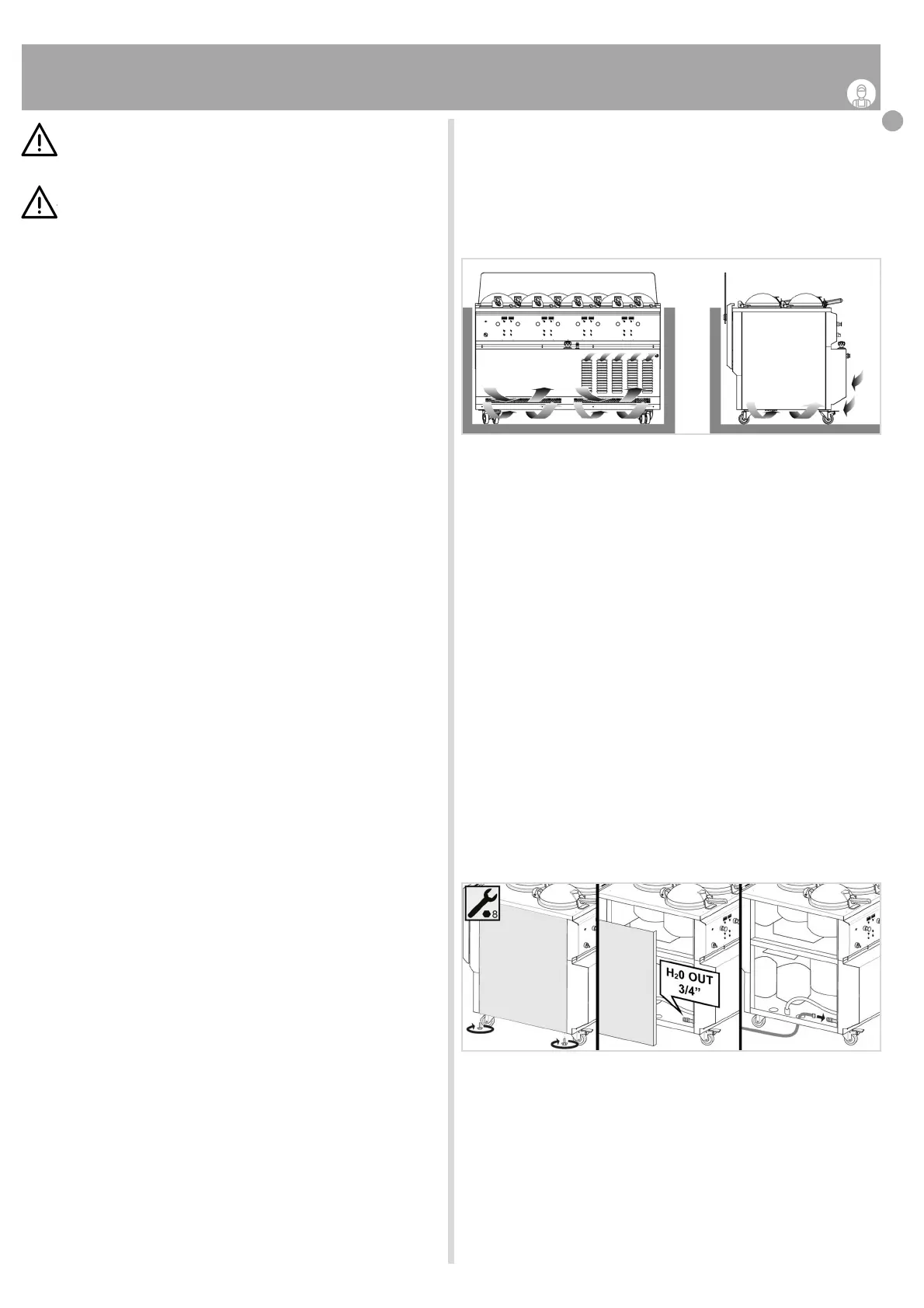

In case of recessed installation, ensure adequate circulation of fresh air to
the space below the machine and to the front panel on the operator's side
(fig.II/01)
4.1 Water Connections
The machine must be connected to the water mains in compliance with the
regulations in force in the country where the machine is installed.
Connect the machine to the drinking water mains with a dedicated line, fitted
upstream of a shut-off cock placed in a position easily reachable by the
operator.
Check that the mains supply of the cold water line has pressure values
between 1 and 3 BAR (between 0.1 and 0.3 MPa) and temperature between
13 °C and 20 °C (55 °F - 68 °F).
Connect the machine to the water supply using only the new pipes supplied,
in compliance with the IEC 61770 standard; never use obsolete or worn out
pipes again. Use suitable DIN 3017 screw clamps.
Connect the cold water supply hose to the hose with 1/2 "connection.
Depending on local water conditions, it may be advisable to install a water
strainer to prevent foreign substances from clogging the automatic water
valve. There will be only one water-in and one water-out connection.
Provide a non-return water device on the water supply line, in compliance
with the regulations in force in the country where the machine is installed.
To connect the condensation water outlet to the drain water waiste, remove
the left side panel by acting on the two screws located on the lower side of
the panel; locate the water drainage fitting (Ø 3/4") and connect it to the pipe
(fig. II/02). The water drain hose must have a minimum slope of 3 cm for
each meter of length. Replace the side panel.
Do Not install a hand shutoff valve on the water-out line.
After having connected the water inlet and outlet pipes, with the machine
stopped, open the cut-off cock and make sure that water does not leak from
the drain.
Never shut the water cut-off cock while the machine is running
