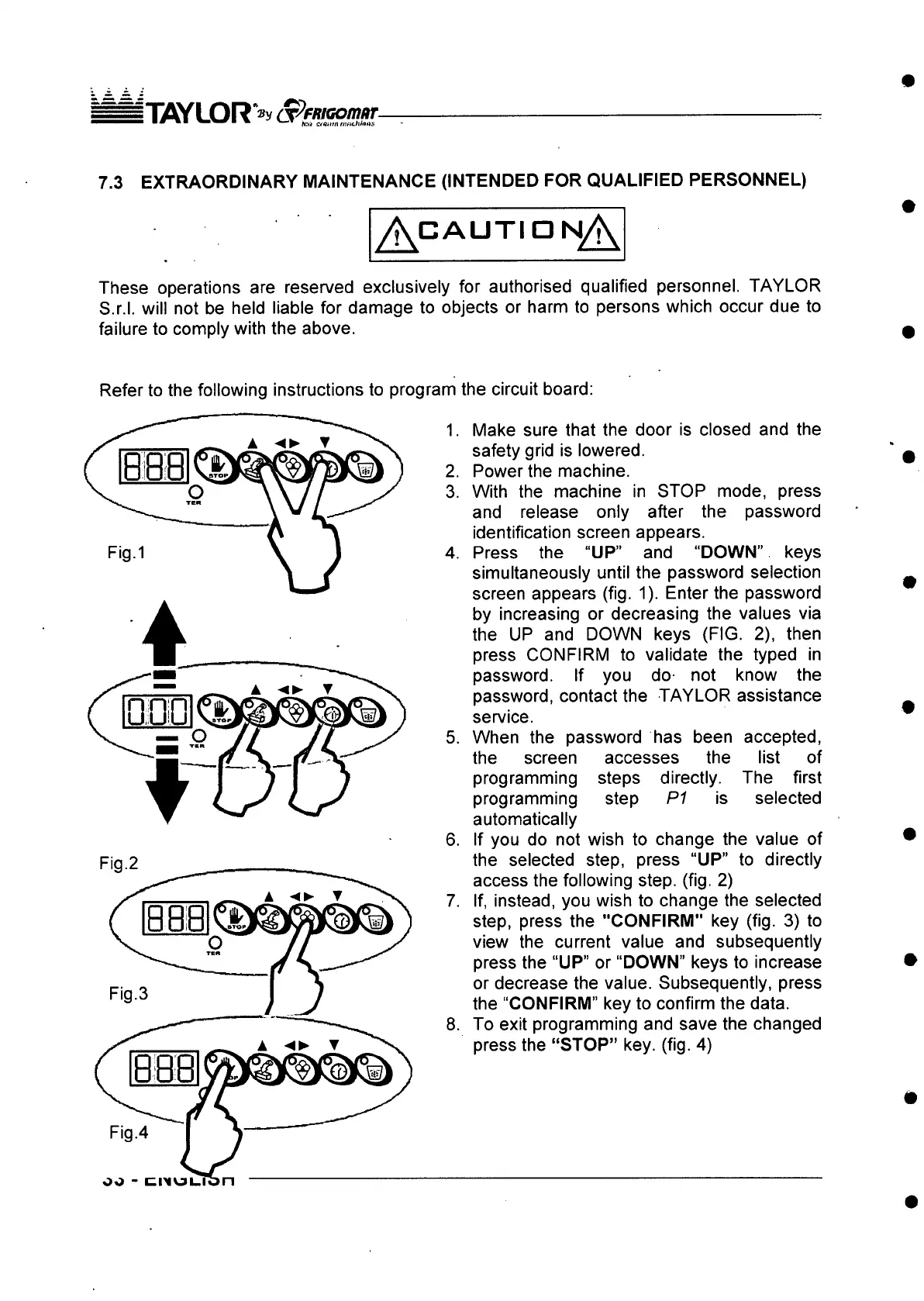

7.3 EXTRAORDINARY MAINTENANCE (INTENDED FOR QUALIFIED PERSONNEL)
/^ C A U T ID N /\
These operations are reserved exclusively for authorised qualified personnel. TAYLOR
S.r.l. will not be held liable for damage to objects or harm to persons which occur due to
failure to comply with the above.
Refer to the following instructions to program the circuit board:
Fig.2
1.
2.
3.
4.
5.
6.
7.
8.
Make sure that the door is closed and the
safety grid is lowered.
Power the machine.
With the machine in STOP mode, press
and release only after the password
identification screen appears.
Press the “UP” and “DOWN” keys
simultaneously until the password selection
screen appears (fig. 1). Enter the password
by increasing or decreasing the values via
the UP and DOWN keys (FIG. 2), then
press CONFIRM to validate the typed in
password. If you do not know the
password, contact the TAYLOR assistance
service.
When the password has been accepted,
the screen accesses the list of
programming steps directly. The first
programming step
P 1 is selected
automatically
If you do not wish to change the value of
the selected step, press “UP” to directly
access the following step. (fig. 2)
If, instead, you wish to change the selected
step, press the "CONFIRM" key (fig. 3) to
view the current value and subsequently
press the “UP” or “DOWN” keys to increase
or decrease the value. Subsequently, press
the “CONFIRM” key to confirm the data.
To exit programming and save the changed
press the “STOP” key. (fig. 4)
