Fronius AccuPocket 150/400 TIG - Connections and Mechanical Components

36

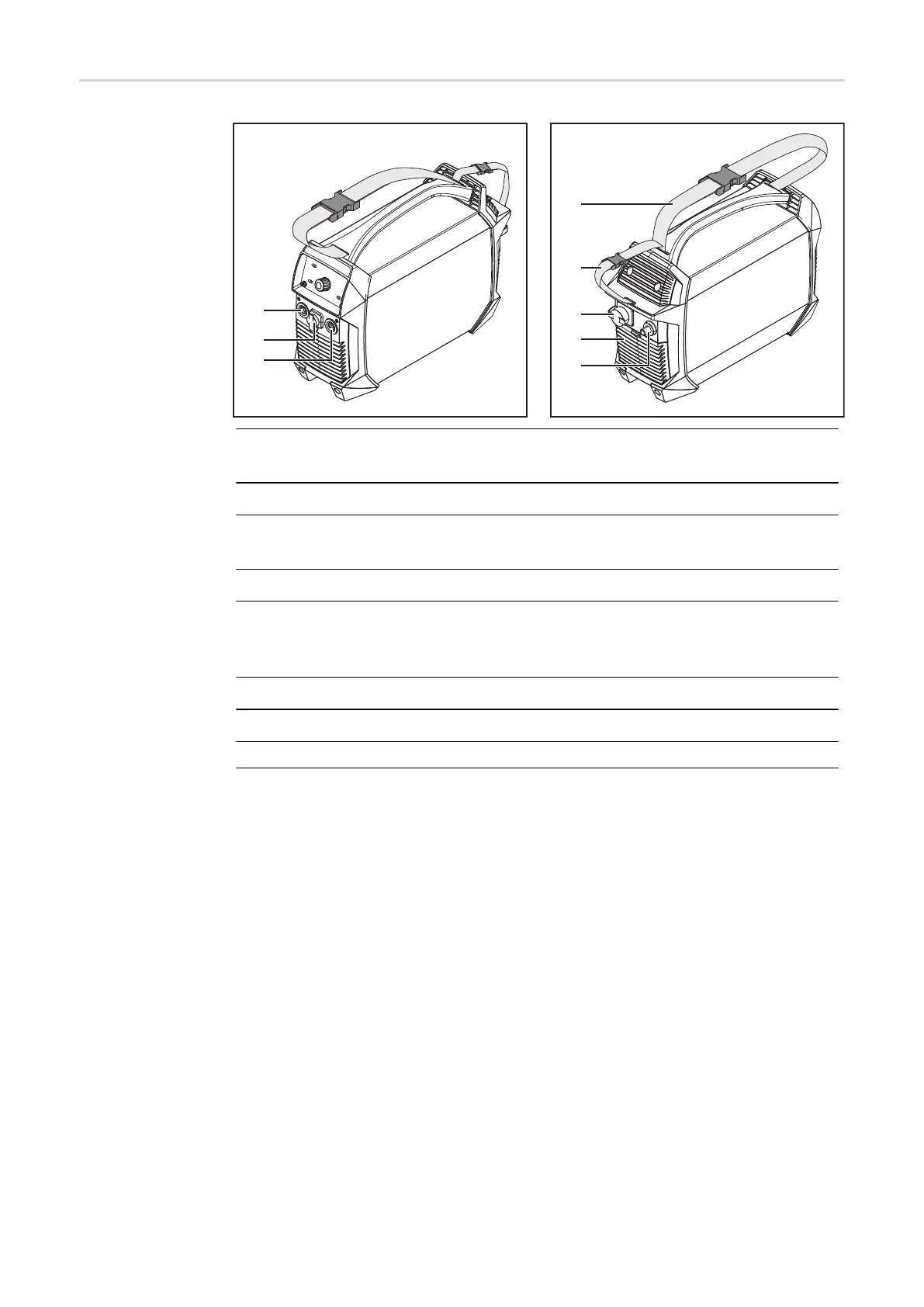

Connections and
mechanical com-
ponents
(1) (-) current socket
with bayonet latch
(2) TMC connection (TIG Multi Connector)
(3) (+) current socket
with bayonet latch
(4) Carrying strap
(5) Cable strap
for holding the mains cable and the welding power-leads
Do not use to move the device!
(6) Charger connection
(7) Air filter
(8) Shielding gas connection
The use of the current connections depends on the welding process:
- MMA welding (depending on electrode type)
(+) current socket for electrode holder or grounding cable
(-) current socket for electrode holder or grounding cable
- TIG welding
(+) current socket for grounding cable
(-) current socket for welding torch
TMC connection for control connection on the Fronius welding torch
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
