21
EN
- Hold the button for up to one second ...
Irrespective of what value has been
set, the wirefeed speed remains at 1
m/min or 39.37 ipm for the first second.
- Hold the button for up to 2.5 seconds ...
After one second, the wirefeed speed
increases at a uniform rate over the
next 1.5 seconds.
- Hold the button for more than 2.5 se-
conds ...
After 2.5 seconds, the wire is fed at a
constant rate equal to the wirefeed
speed set for the Fdi welding parame-
ter.
Item Designation
(1) MagicWave: Welding torch / (-) current socket connection
in conjunction with a MagicWave power source for connecting:
- a TIG welding torch
- the electrode cable for manual metal arc welding
in conjunction with a TransTig power source for connecting:
- a TIG welding torch
- the electrode cable or grounding cable during MMA welding (depending on the
type of electrode used)
(2) Wirefeeding connection
(3) Blanking cover (optional KD drive)
(4) Torch control connection
for connecting the torch control plug
(5) LocalNet port
standardised connection socket for system extensions (e.g. remote control, Job-
Master torch, etc.)
(6) Water return connection (red)
(7) Water flow connection (blue)
(8) Blanking cover
(9) Blanking cover
(10) Blanking cover
(11) Bushing for LocalNet connection cable
(12) Bushing for interconnecting hosepack
(13) Bushing for external welding wire
(14) Wirespool holder with braking device
for attaching standardised wirespools up to max. 16 kg (35.27 lbs.) and with a max-
imum diameter of 300 mm (11.81 in.)
(15) 4 roller drive
(16) "Feeder inching/feeder backward" button
- Feeder inching: Push button downwards
- Feeder backward: Push button upwards

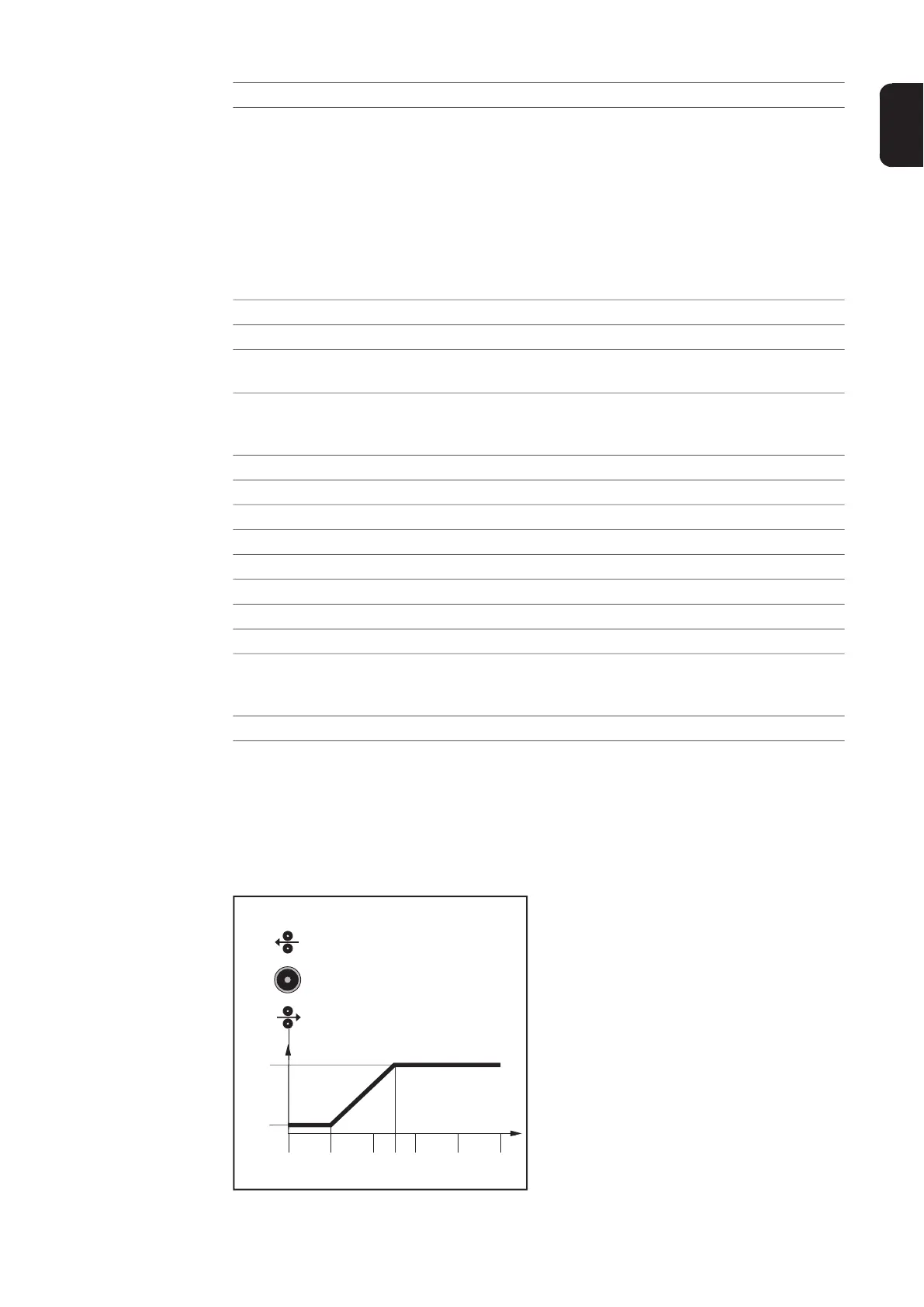

IMPORTANT! To facilitate exact positioning of the welding wire, the following se-
quence is executed when the welder presses and holds the wire threading / wire
retract button:
(16)
v
D
(m/min oder ipm)
t (s)
123452,5
1
Fdi
(z.B. 22)
