Fronius KD 7000 D-11 User Manual

25
EN
If present, plug the colour-coded water flow and return hoses into the screw-type con-
nectors (9) and (8)
Fit the right side panel of the cold wire feeder:
Position side panel
Fasten with 5 screws

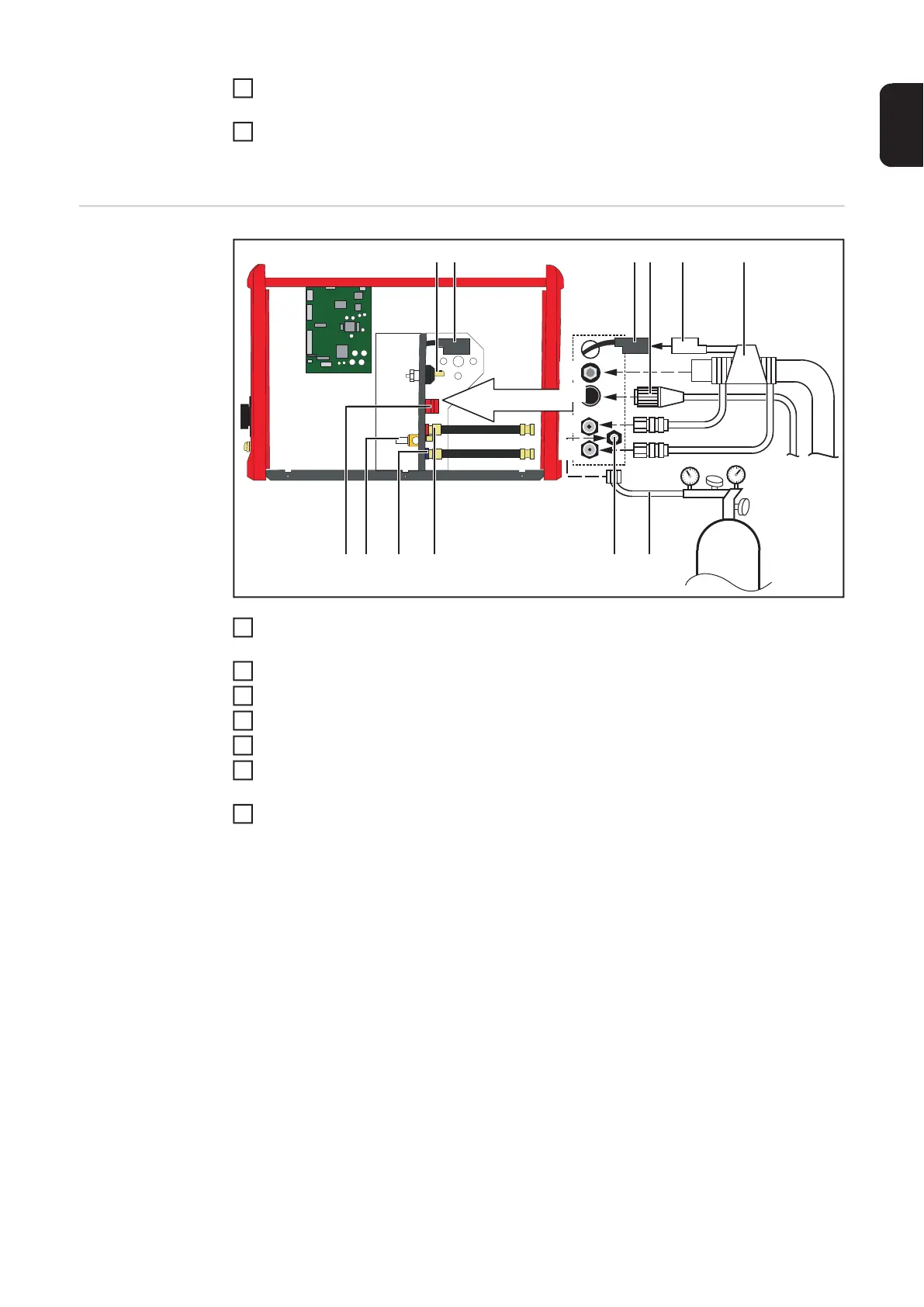

Variant 2: gas
pipe separate
from intercon-
necting hosepack
Plug gas hose (6) from gas cylinder pressure regulator into shielding gas connection
(10)
Plug control plug (4) into torch control connection (2)
Plug welding potential bayonet plug (5) into current socket (1) and turn to fasten it
Plug LocalNet (3) plug into LocalNet port (11)
Tighten union nut on LocalNet plug (6)
If present, plug the colour-coded water flow and return hoses into the screw-type con-
nectors (8) and (9)
Fit the right side panel of the cold wire feeder:
Position side panel
Fasten with 5 screws
6
7
(1)
(10)
(8)
(9)
(1)(2) (3) (4) (5)
(6)(7)(10) (8)(9)
(2)
(11)
1
2
3
4
5
6
7

Fronius KD 7000 D-11 Specifications

General

Brand	Fronius
Model	KD 7000 D-11
Category	Inverter
Language	English
