Fronius MagicWave 3000

I (A)
t (s)
(3)
-70%+70%
+
-
0
(1)
+
-
+
-
t (s)
t (s)
I (A)
I (A)
(2)
0
+5 -5
60 Hz
120 Hz
35% 50% 15%
*)

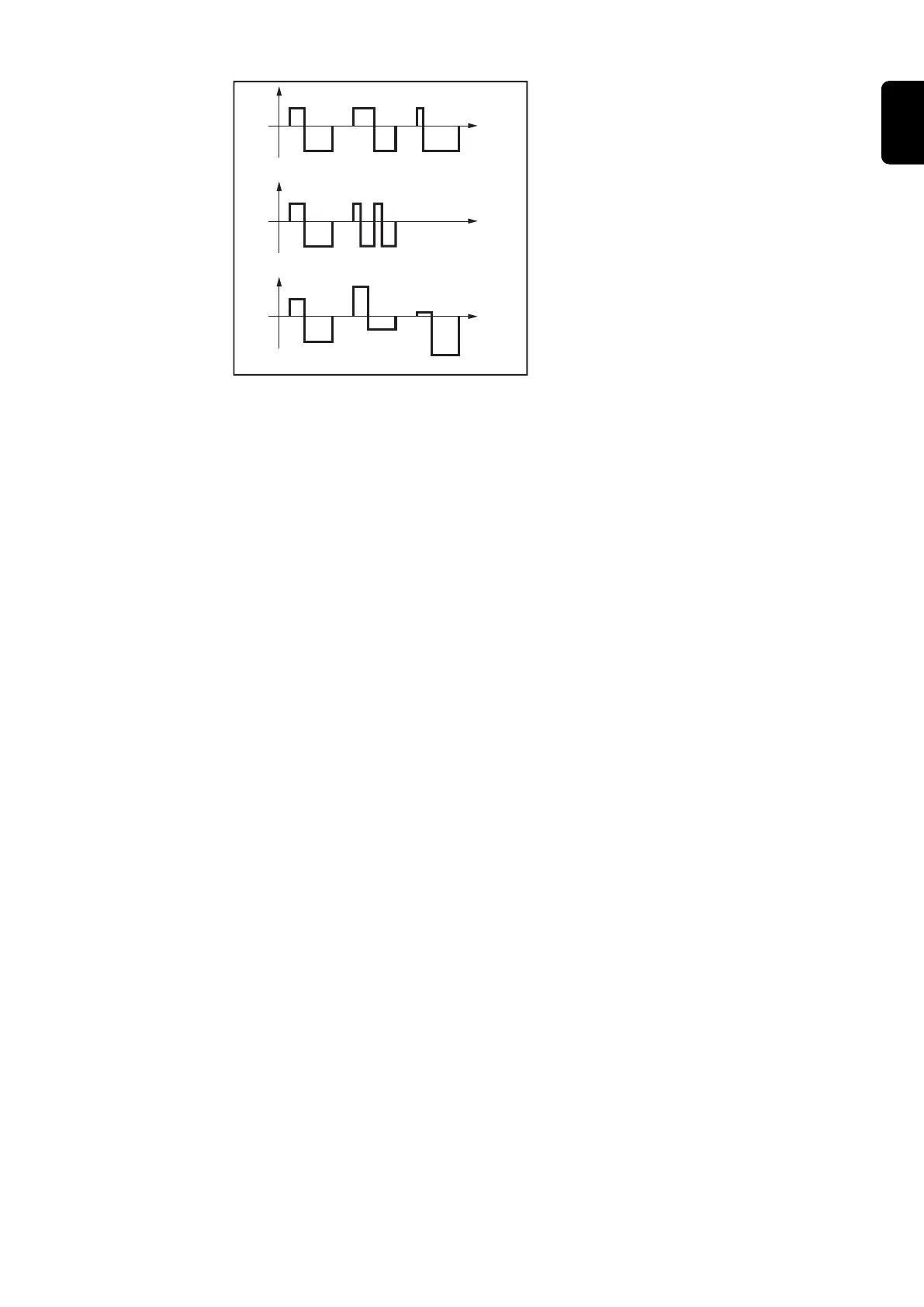

Effect of the AC parameters on the waveshape
(1) Balance
(2) AC frequency
(3) AC current offset
*) Factory setting: 20% shift to the
negative
