Calibrating push-pull unit
General The push-pull unit must be calibrated before it is started up for the first time and
whenever the wire feed software is updated. If the push-pull unit is not calibrated, stand-
ard welding parameters will be used - which may lead to an unsatisfactory welding result.
Calibrating the
push-pull unit
For an overview of the service codes used during calibration of the push-pull unit, please
refer to "Service codes for push-pull calibration".
1

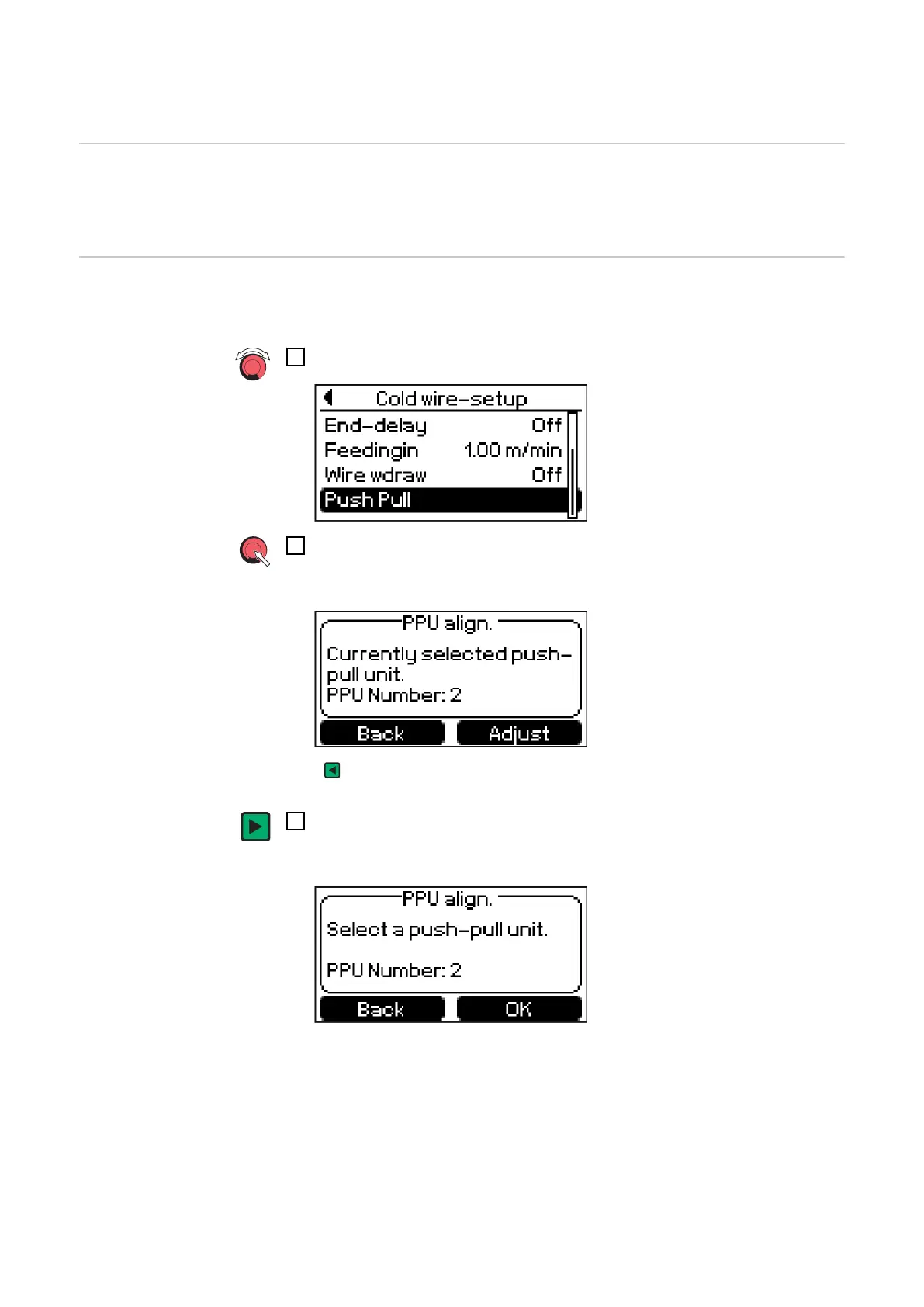

In cold wire setup select the "PushPull" parameter
2
Press the adjusting dial
The first push-pull calibration screen is shown:
On the following push-pull calibration screens pressing the left button
takes you back to the previous screen.
3
Press the right arrow key
The second push-pull calibration screen is shown:
126
