Fronius Primo 8.2-1 - Page 127

127
EN-US

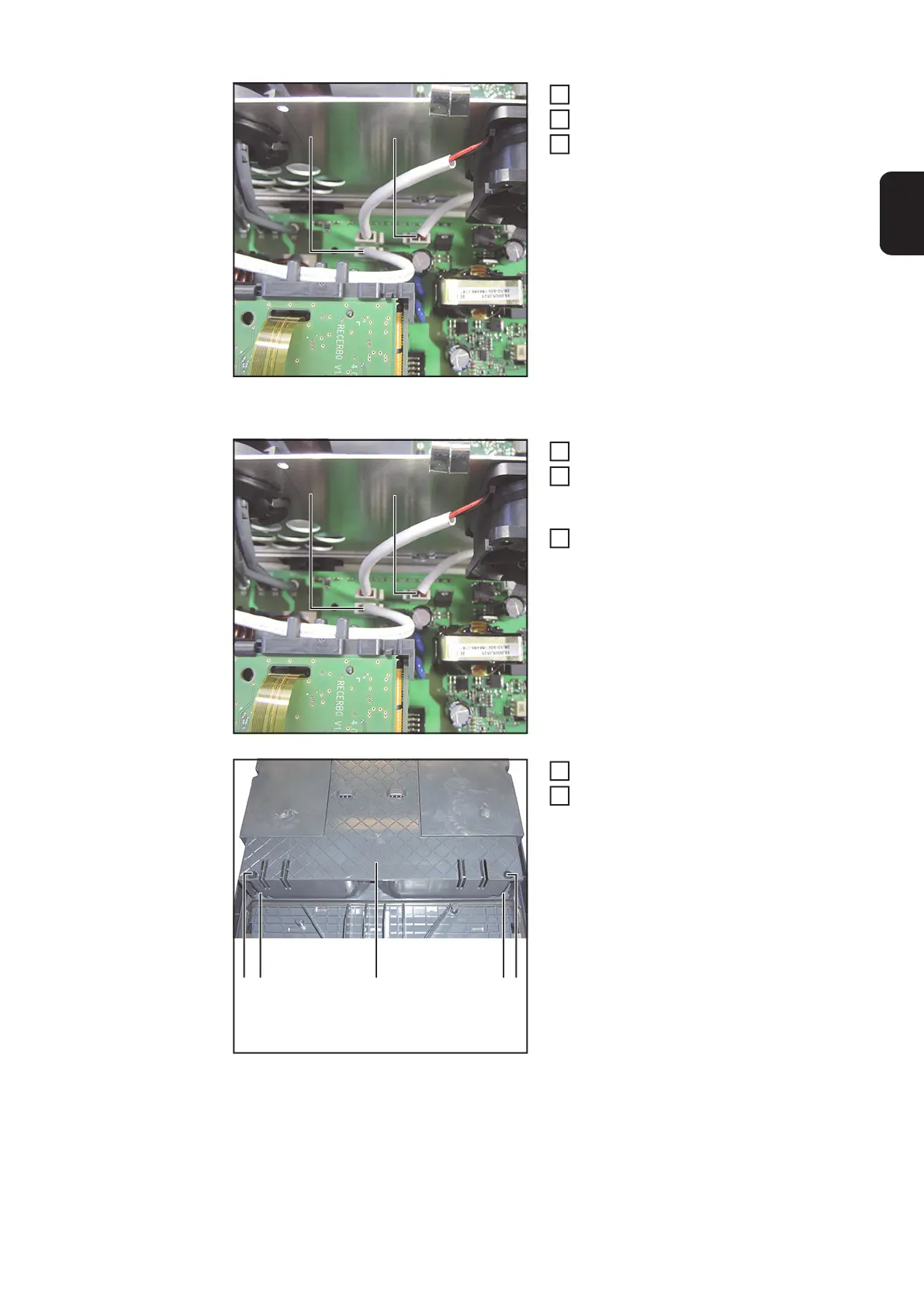

Carefully turn the inverter round
Reconnect the Molex plug (2)
Insert the cable into the clamping nose
Replace the left external fan:
Disconnect the Molex plug (1)
Release the cable from the clamping
nose and feed it out
Carefully turn the inverter round so that
the rear is accessible
Remove 2 x 5x14 mm TX25 screws (3)
Loosen the locking device (4) of the fan
holder (5) and open the holder
(1)
(2)
14
15
16
(1)
(2)
1
2
3
(3)(4)(3)(4) (5)
4
5
