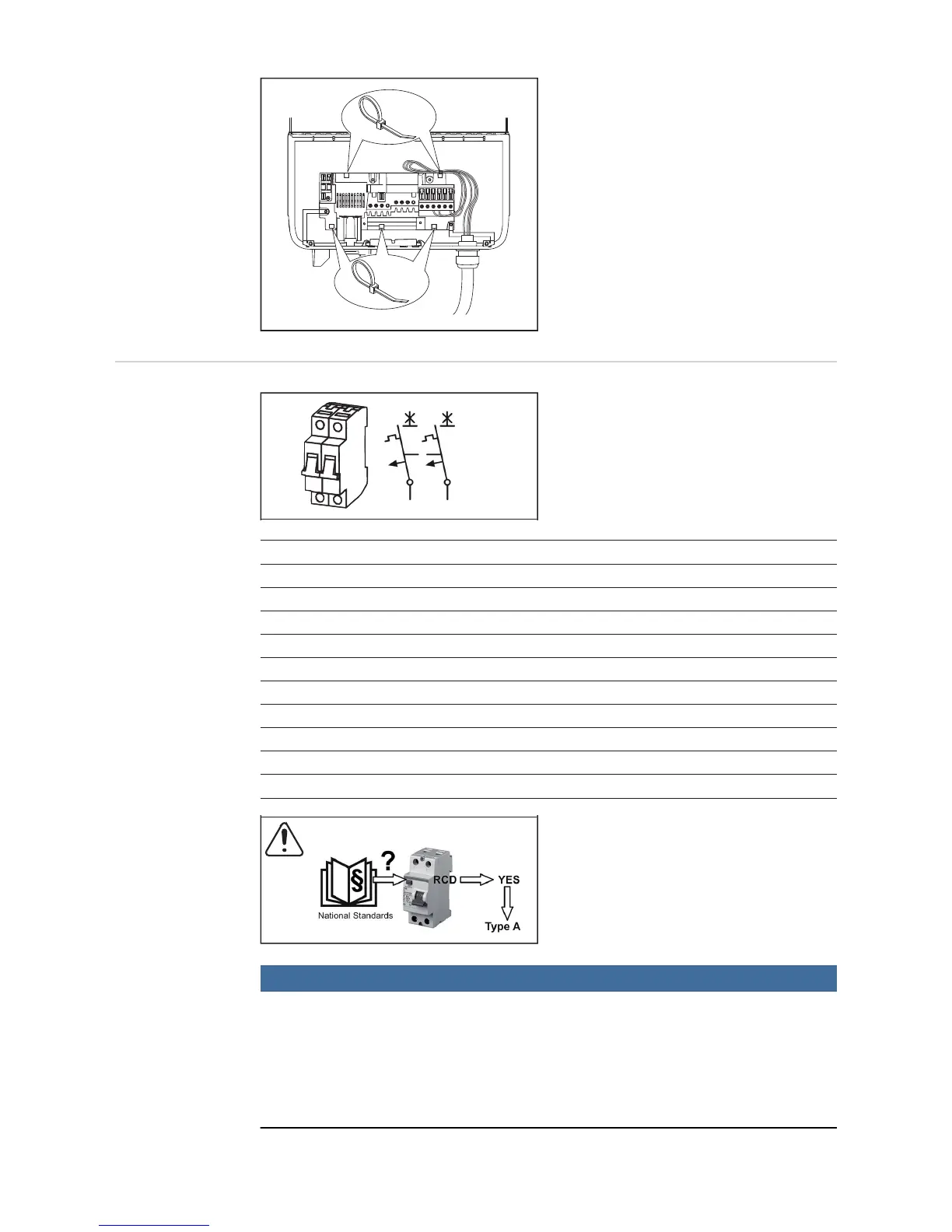

If overlength AC or DC cables are to be laid
in loops in the connection area, attach the
cables with cable ties to the eyelets provi-
ded on the top and bottom of the connecti-
on block.
Maximum fuse
rating on alternat-
ing current side
NOTE!
Local regulations, the energy supply company or other factors may require a resid-
ual current protective device (RCD) in the AC connection lead.
For this situation, a type A residual-current circuit breaker is generally adequate. However,
in certain circumstances, and depending on local factors, the type A residual-current circuit
breaker may trip at the wrong time.
For this reason, Fronius recommends that a residual-current circuit breaker that is suitable
for frequency converters should be used.
AC ~
max. 63 A
24
31
Inverter Phases Max. output Max. fuse rating
Fronius Primo 3.0-1 1 3000 W 1 x C 63 A
Fronius Primo 3.5-1 1 3500 W 1 x C 63 A
Fronius Primo 3.6-1 1 3600 W 1 x C 63 A
Fronius Primo 4.0-1 1 4000 W 1 x C 63 A
Fronius Primo 4.6-1 1 4600 W 1 x C 63 A
Fronius Primo 5.0-1 AUS 1 5000 W 1 x C 63 A
Fronius Primo 5.0-1 1 5000 W 1 x C 63 A
Fronius Primo 5.0-1 SC 1 5000 W 1 x C 63 A
Fronius Primo 6.0-1 1 6000 W 1 x C 63 A
Fronius Primo 8.2-1 1 8200 W 1 x C 63 A
I
ΔN
≥ 100 mA
