Data communication
Routing data
communication
cables
IMPORTANT! Operating the inverter with one option card and two broken-out option card
slots is not permitted.
To cater for this eventuality, a suitable blanking cover (42,0405,2020) is available from Fro-
nius as an option.

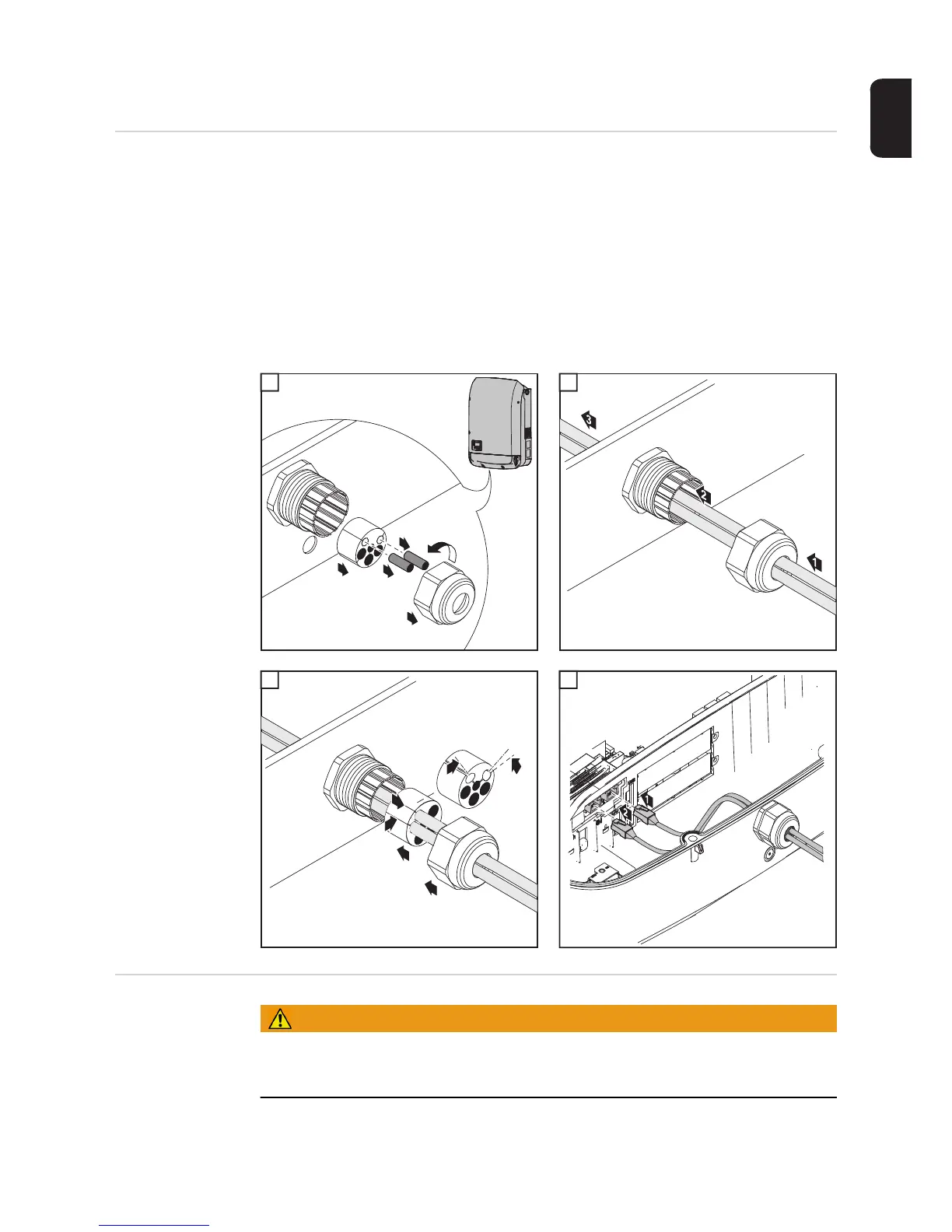

IMPORTANT! Note the following if data communication cables are being introduced into
the inverter:
- depending on the number and cross-section of the data communication cables that
are being introduced, take the relevant blanking plugs out of the sealing insert and in-
sert the data communication cables.
- the relevant blanking plugs must be inserted into the free openings on the sealing in-
sert.
1 2
3 4
Installing the Da-
tamanager in the
inverter
WARNING!
Danger due to residual voltage in capacitors.
This may result in an electric shock.
► Wait for the capacitors to discharge. The discharge time is five minutes.
3
1
2
4
5
1
2
1
6
2
4
3
5
3 4
