30

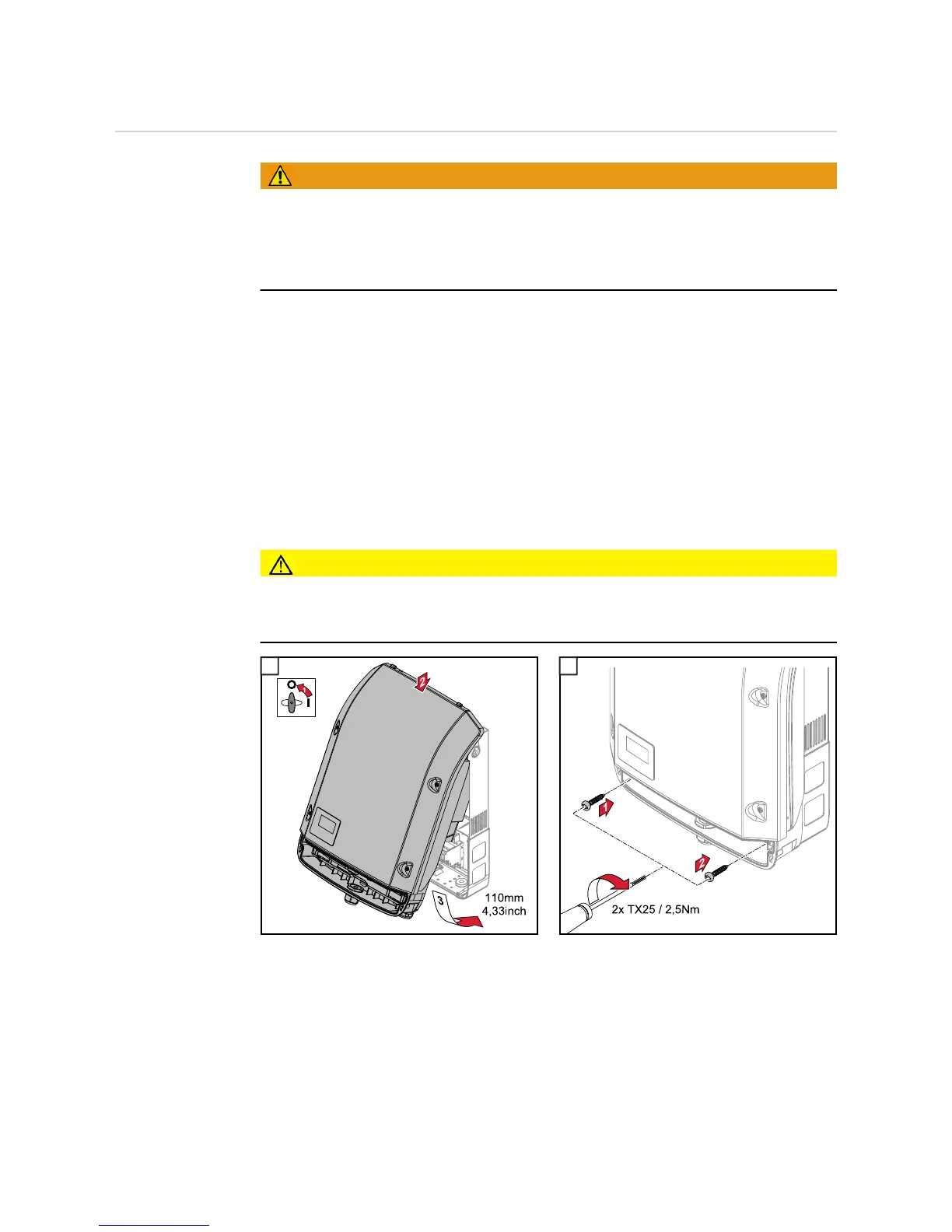

Attaching the inverter to the mounting bracket
Attaching the in-
verter to the
mounting bracket
WARNING!
Danger from inadequate ground conductor connection.
This may result in serious injury and damage to property.
► The housing screws provide a suitable ground conductor connection for grounding the
housing and must NOT be replaced by any other screws that do not provide a reliable
ground conductor connection.
The side sections of the housing lid are designed to function as holding and carrying han-
dles.
Note! For safety reasons, the inverter is fitted with a latch that prevents the inverter from
being swung into the mounting bracket unless the DC main switch is switched off.
- Never attach the inverter to the mounting bracket or swing it in unless the DC main
switch is switched off.
- Never use force to attach the inverter or swing it in.
The fastening screws in the data communication area of the inverter are used for securing
the inverter to the mounting bracket. Correctly tightened fastening screws are a prerequi-
site if proper contact is to be established between the inverter and mounting bracket.
CAUTION!
Danger due to incorrectly tightened fastening screws.
This may result in arcs occurring when the inverter is in operation, which may lead to fire.
► Always use the specified torque when tightening the fastening screws.
1 2
1
2
