Fronius Symo 6.0-3-M Installation Instructions

13
EN

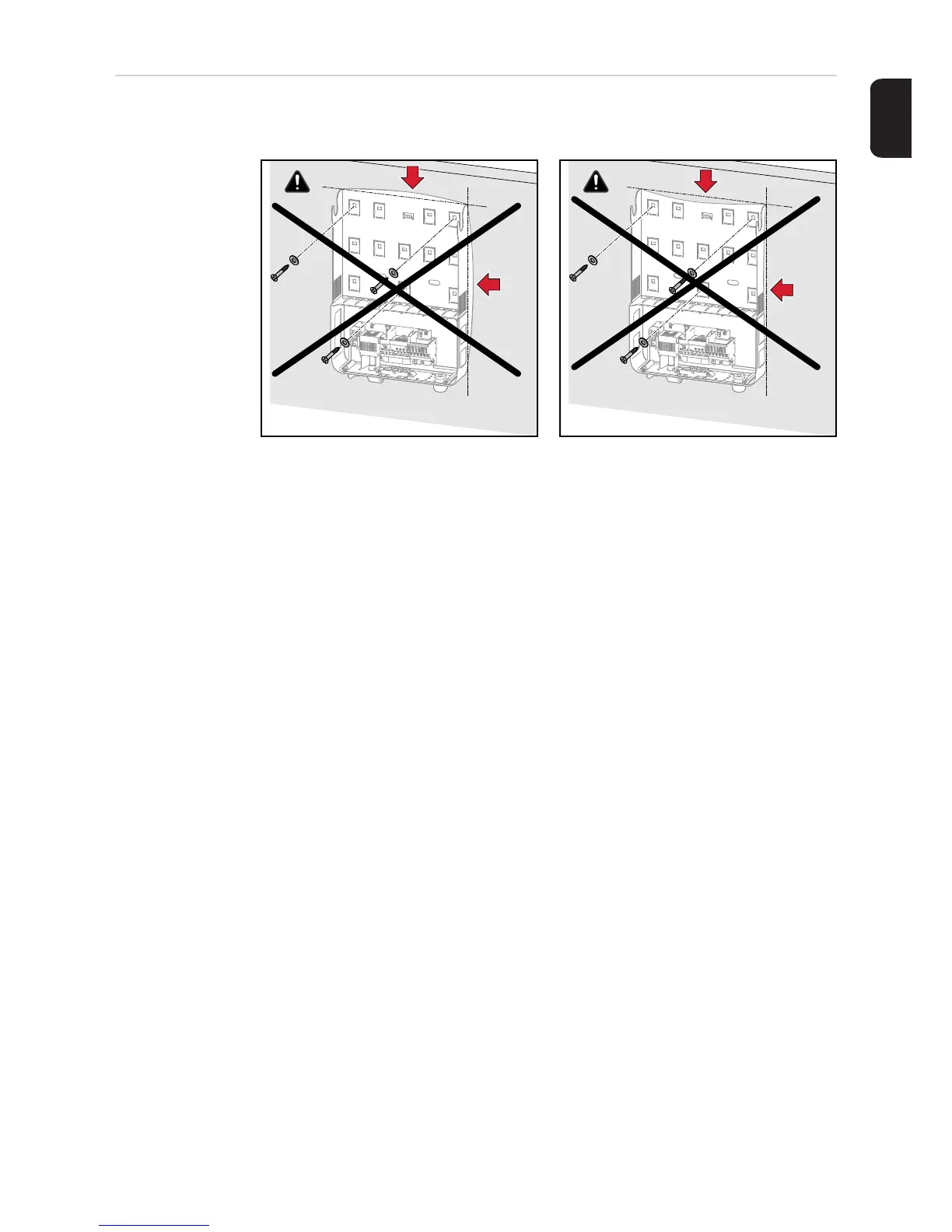

Do not warp or
deform the
mounting bracket
Note! When fitting the mounting bracket to the wall, ensure that the mounting bracket does
not become warped or deformed.

Fronius Symo 6.0-3-M Specifications

General

AC Nominal Output	6.0 kW
Max. Input Voltage	1000 V
MPP Voltage Range	200 - 800 V
Number of MPP Trackers	2
Protection Rating	IP66
Efficiency	98.1%
Max. Apparent AC Power	6.0 kVA
Frequency	50 / 60 Hz
THD	< 3%
Protection Class	I
DC Connection	MC4
Operating Temperature Range	-25°C to +60°C
DC Input Voltage Range	200-1000 V
AC Connection	Screw terminals
Cooling	Forced air cooling
