Navigation at the menu level
Activate display
backlighting
Press any key
The display backlighting is activated.
There is an option under 'Display Settings' in the SETUP menu to set the display back-
lighting so that it is on all the time or off all the time.
Automatic deacti-
vation of display
backlighting /
choose 'NOW'
menu item
If no key is pressed for 2 minutes,
- the display backlighting switches off automatically and the inverter goes to the 'NOW'
menu item (assuming the display backlighting is set to automatic).
- The selection of the 'NOW' menu item can happen from any position on the menu level
with the exception of the item 'Standby' on the Setup menu.
- The amount of energy currently fed in is displayed.
Open menu level
The menu items
- NOW displays real-time values
- LOG data recorded today, during the current calendar year and since the inverter was
first commissioned
- GRAPH Day characteristic displays a plot showing the power output during the day.
The time axis is scaled automatically. Press the 'Back' key to close the display
- SETUP Setup menu
- INFO Information about the device and the software
Values displayed
in the NOW menu
item

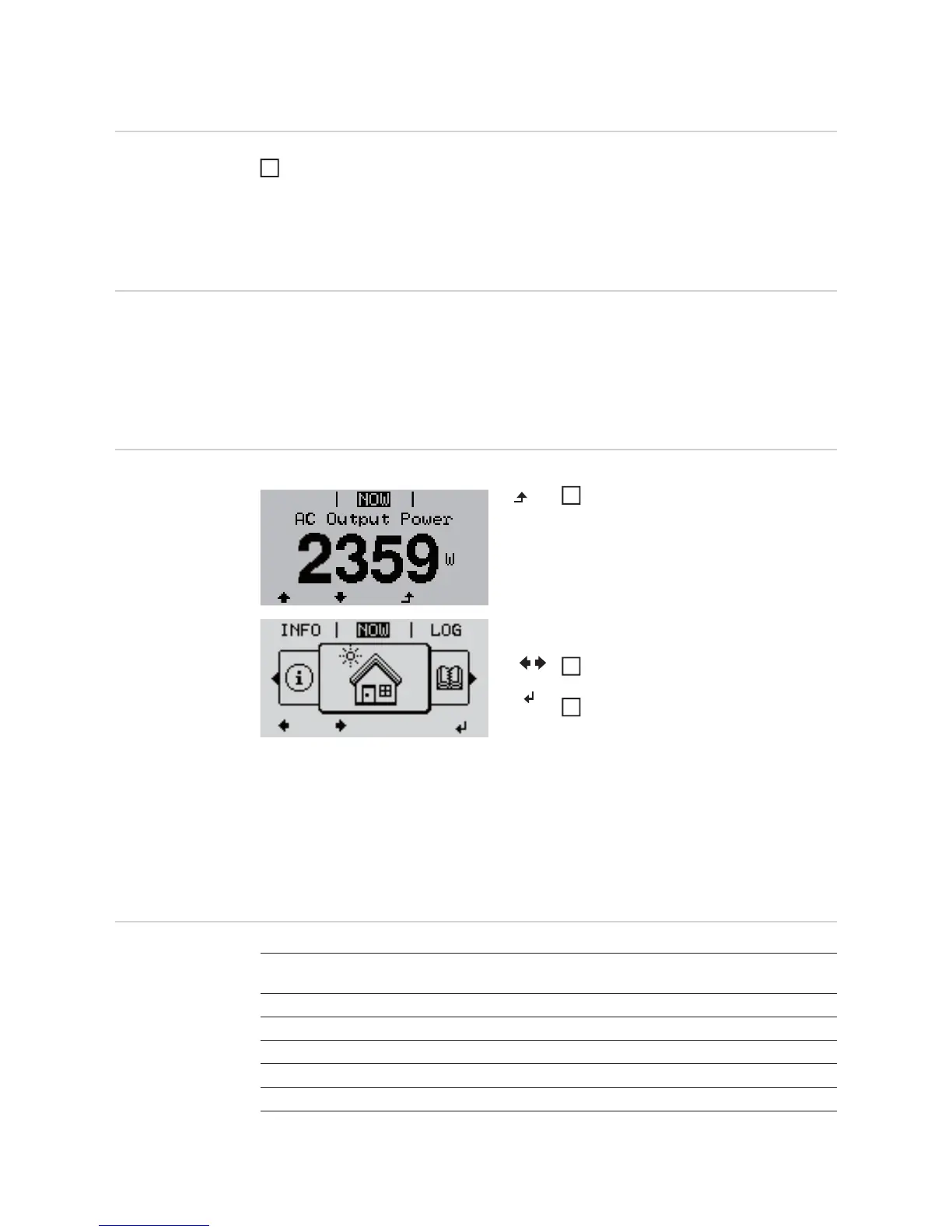

1
Press the 'Menu' key
The display switches to the menu level.
Use the 'Left' or 'Right' keys to select
the desired menu item
Press the 'Enter' key to select the de-
sired menu item
1
2
3
Output power (W) - depending on the device type (MultiString), two output powers (PV1
/ PV2 ) are displayed when the Enter key is pressed
AC reactive power (VAr)
Grid voltage (V)
Output current (A)
Grid frequency (Hz)
PV array voltage (V) - from U PV1 and U PV2 if present

Fronius Symo 8.2-3-M Specifications

General

AC nominal output	8.2 kW
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP65
Frequency	50 / 60 Hz
THD	< 3%
Power factor (cos φac,r)	0.85 - 1 ind./cap.
Efficiency	98.1%
Operating Temperature Range	-25°C to +60°C
Max. apparent AC power	8200 VA
AC nominal voltage	3 x 230 / 400 V
