Installation instructions for the “Second earthing
socket at rear” installation kit

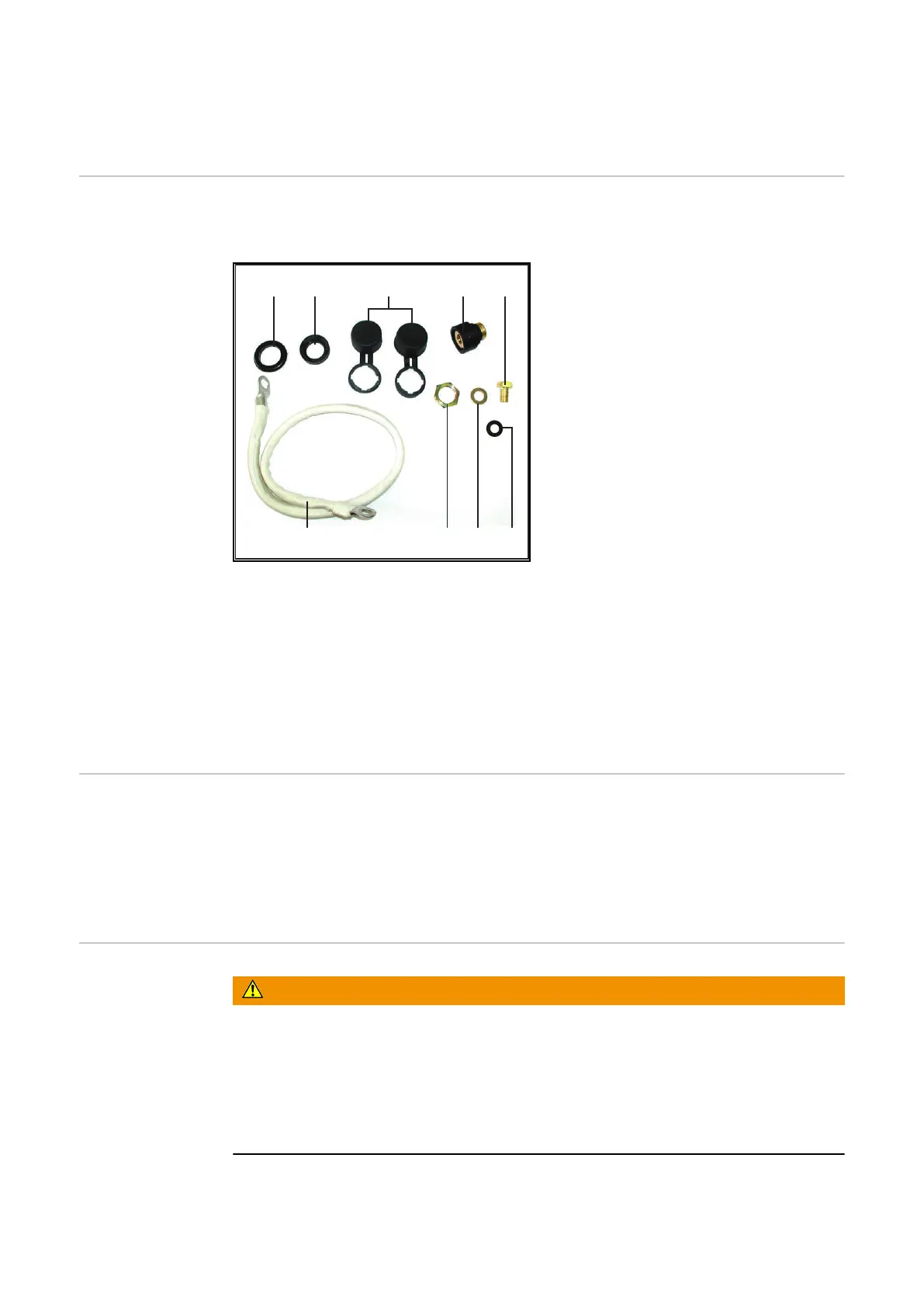

Components The “Second earthing socket at rear” installation kit (4,100,361) comprises the
following components:.
(1)(9)
(8)
(7)
(6)(5)
(4)
(3)
(2)
“2nd earthing socket at rear” installation kit
(1) 1 x current socket EB 70 mm²
34,0001,0929
(2) 1 x insulating washer
42,0300,1109
(3) 1 x thin nut M24 x 1,5, width 32
42,04000,0039
(4) 1 x hexagon head screw M12 x
20
42,0401,0206
(5) 1 x washer A13
42,0399,0183
(6) 1 x belleville spring washer
42,1500,0143
(7) 1 x rubber lead-through
42,0402,0039
(8) 1 x cable
43,0004,2266
(9) 2 x blanking caps for TIG cur-
rent sockets, 42,0405,0305
(10) 1 x “Installation instructions“
manual (not illustrated)
42,0410,0864
Tools required
-
Manual screw driver TX25
-
Flat spanner, width 19
-
Flat spanner, width 32
-
Torque wrench (ratchet)
-
Socket wrench, width 19
-
Socket wrench, width 32
Safety
WARNING!
Danger from incorrect operation and work that is not carried out properly.
This can result in serious personal injury and damage to property.
▶
All the work and functions described in this document must only be carried
out by technically trained and qualified personnel.
▶
Read and understand this document in full.
▶
Read and understand all safety rules and user documentation for this device
and all system components.
