Establishing a
ground (earth)
connection
1
Inserting/replac-
ing feed rollers

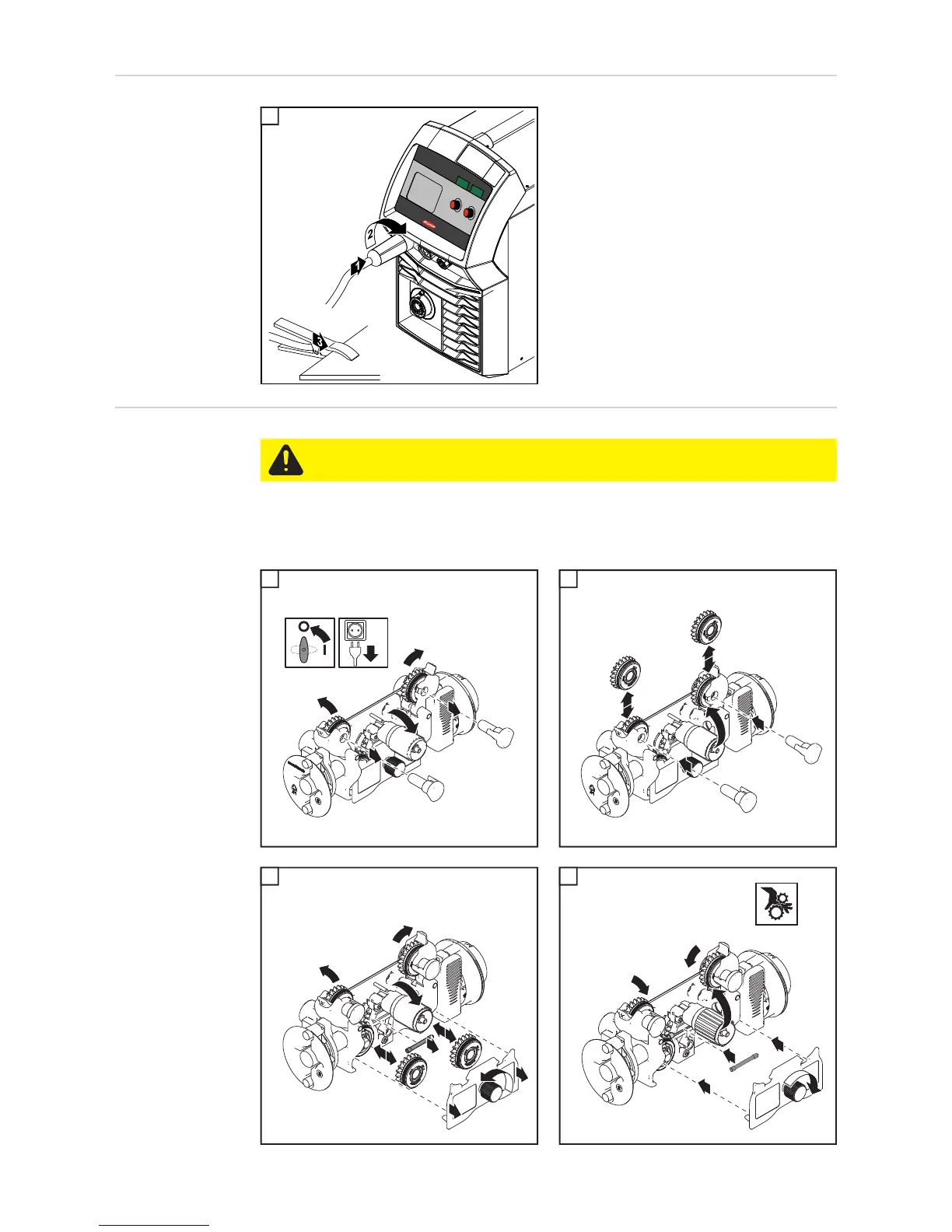

In order to achieve optimum wire electrode feed, the feed rollers must be suitable for the
diameter and alloy of the wire being welded.
An overview of the available feed rollers can be found in the spare parts lists.
1 2
3 4
1
CAUTION! Risk of injury if the feed roller holders fly upwards. When unlocking
the lever, keep fingers away from the area to the left and right of the lever.
